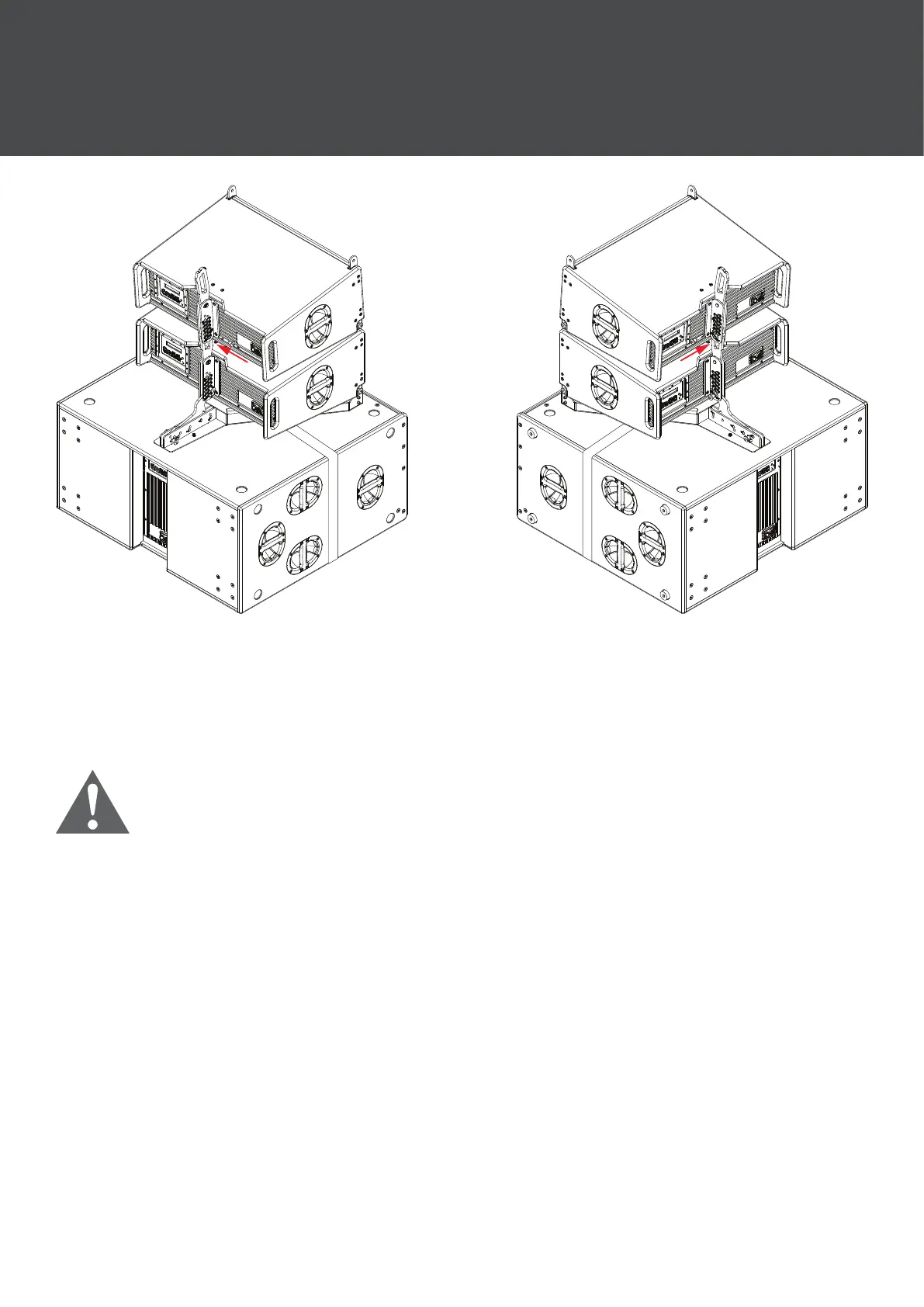

Step 9:
Insert the pin on the right hand of
the rear rigging assembly.
Note: The hole numbers
determine the splay
angle of the assembly.
To determine what angle
the cabinets should be
congured use EASE Focus.
Step 10:
Insert the left hand pin in the same
hole number as the right hand side
to lock the cabinet in position.
Repeat steps 7 to 9 for additional
cabinets as required.
