Next PROAUDIO LA210X - 3.6 Signal Distribution

12
3 Cabling and Amplication

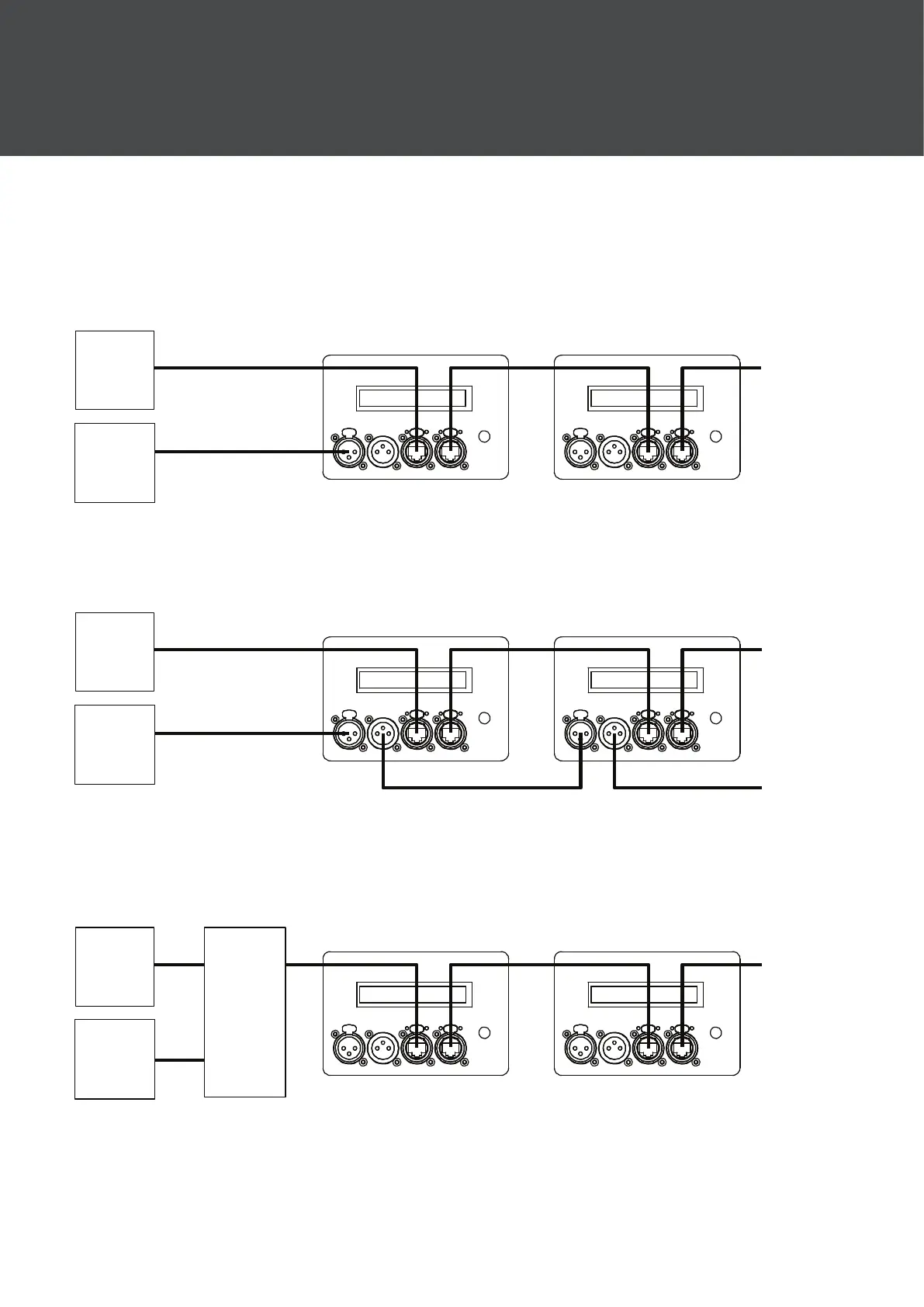

3.6 Signal Distribution
Analogue
In
Control
In
Analogue
Out
AESOP
(AES + Control)
AESOP Out
(AES + Control)
A redundancy can be added by linking the cabinets with XLR cable.
Control
In
Analogue
In
AESOP
(AES + Control)
AESOP Out
(AES + Control)
AES In
(XLR)
Control
In (ETH)
AESOP
Converter
AESOP
(AES + Control)
AESOP Out
(AES + Control)
AESOP
(AES + Control)
In this rst example the analogue cable is only supplied to the rst unit and from
there is distributed by AESOP using the ethernet cable.
It is also possible to connect AES directly (XLR cable) from a mixer, using the NEXT
AESOP Converter. The AESOP Converter will mix both AES and control signals into
one single AESOP ethernet cable.
