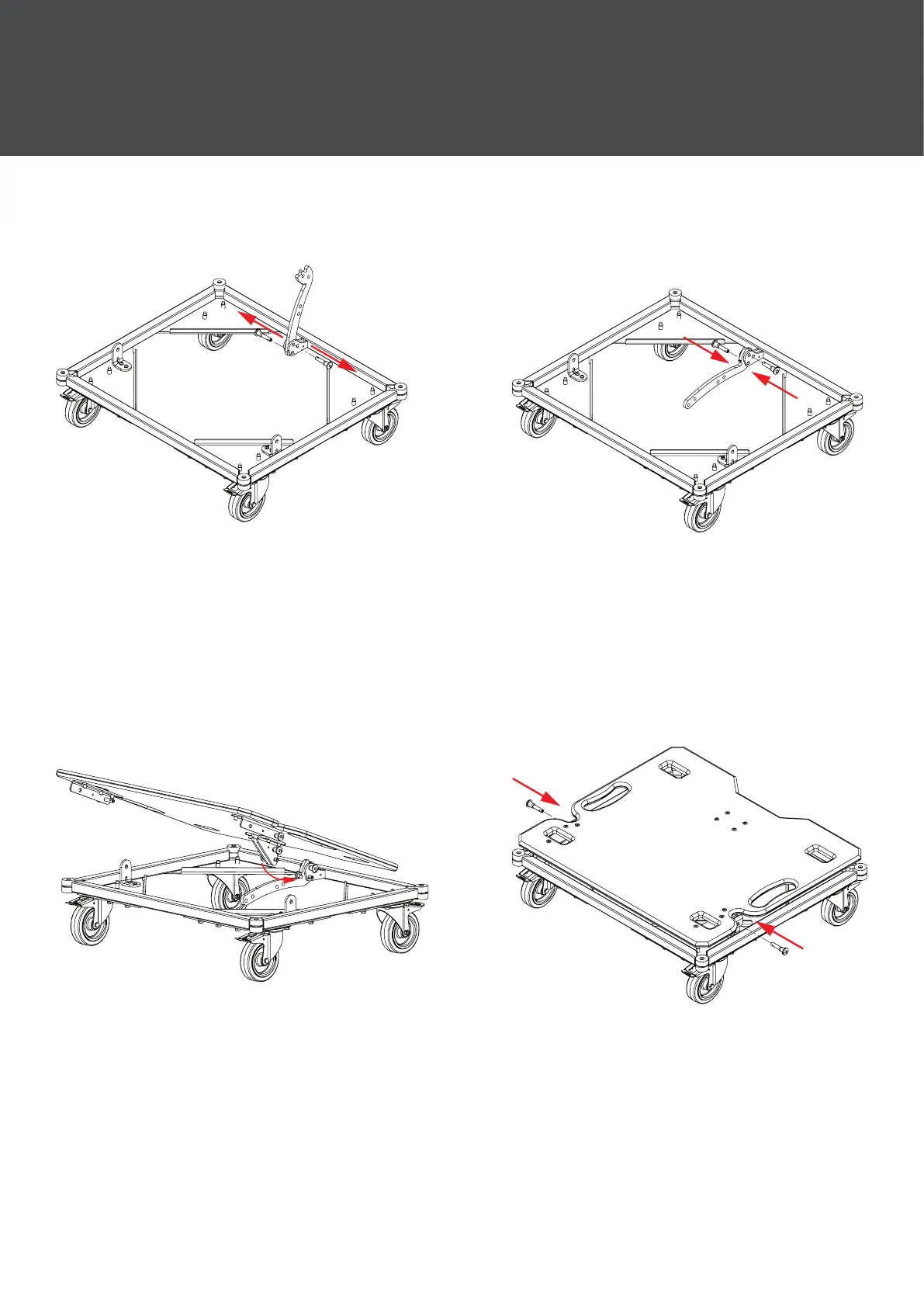

Step 1:
To prepare the dolly for storage
remove the pins from the link as
shown.
Step 2:
Move the link into the storage
position and insert both pins.
Step 3:
Move the lid into position on the grove
in the link as shown.
4.3.2 Transportation Dolly Storage
Step 4:
Insert both pins to lock the lid into
place.
4 Mechanical Congurations
