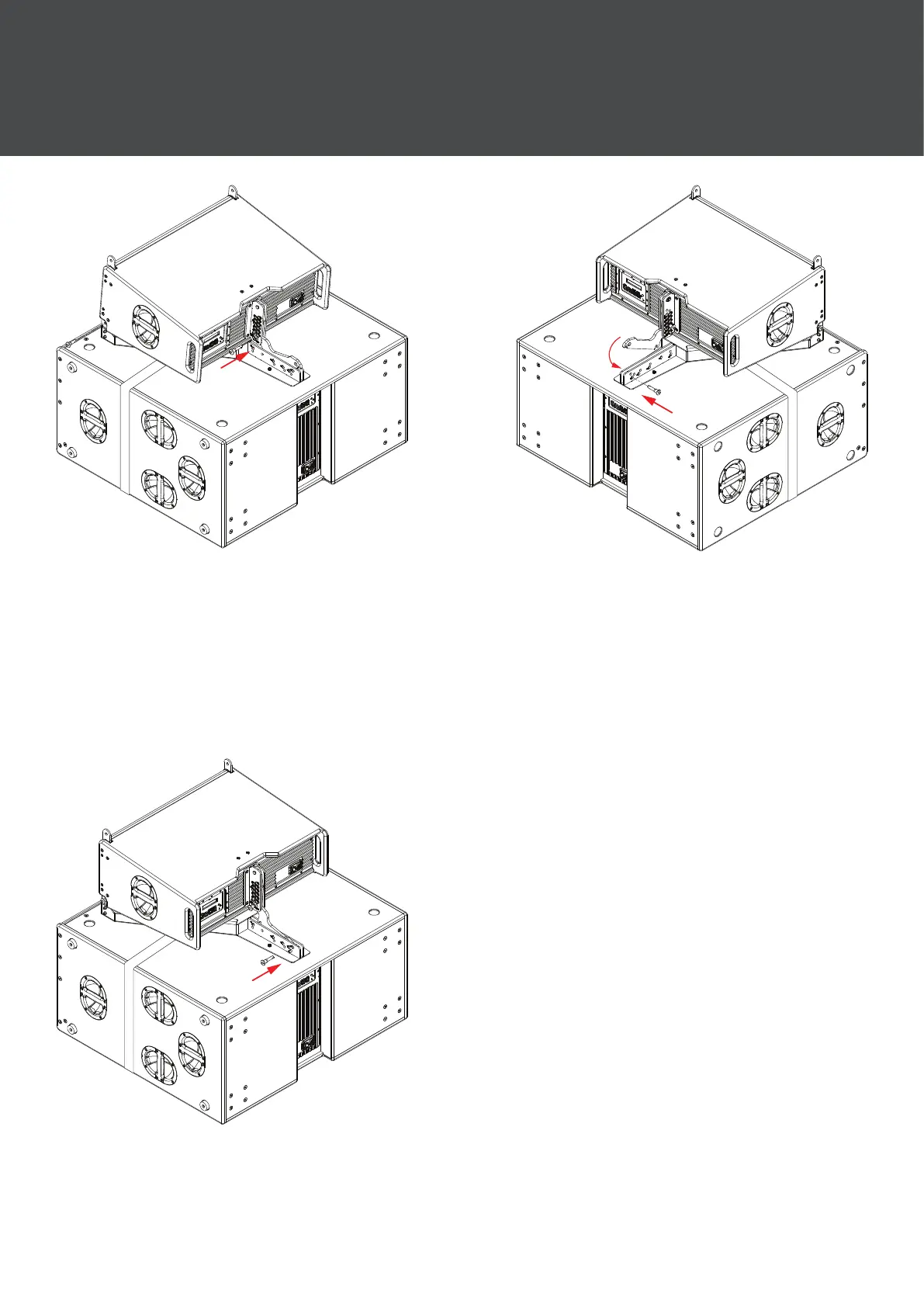

Step 5:
Allow the LA210x to rest on the
bracket and x the link for the bracket
(removed in step 2) onto the rear
rigging assembly on the speaker using
the hole marked ground stack pin.
Step 6:
Insert the right hand pin into the
angle required for your application.
Allow the link to rest on pin and then
lift the cabinet until the link clicks
into position on the pin.
The ground stack bracket has an
angle range of -15° to +5° available
in 5° increments.
Step 6:
Insert the left hand pin into the ground
stack bracket to lock the cabinet into
position.
4 Mechanical Congurations
