35

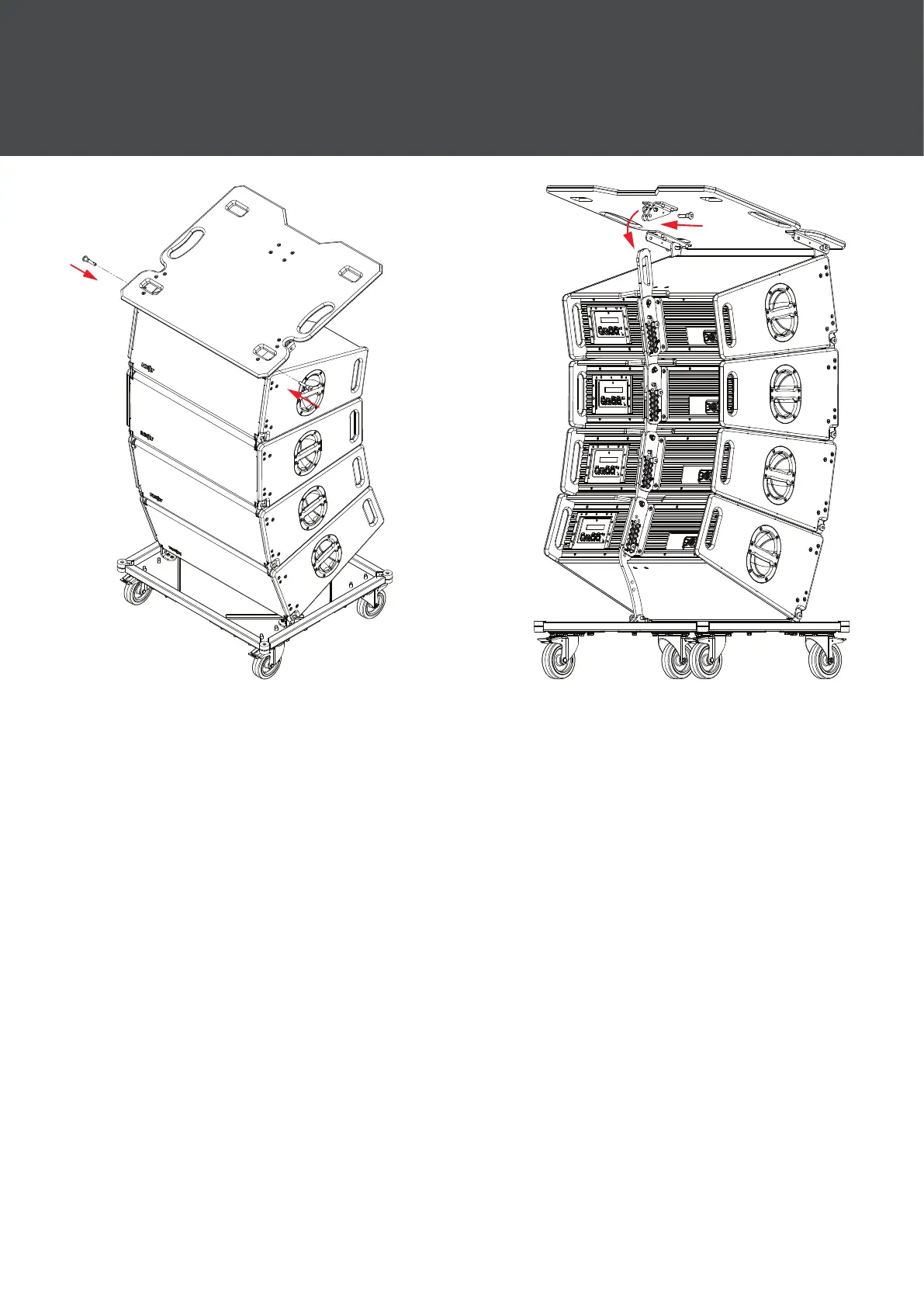

Step 15:
Lower the lid on to the top cabinet
front rigging assemblies and insert
the front pins.
Step 16:
Remove the pin from the rear link of
the top of the dolly assembly and
lower it into position on the rear link
of the top cabinet.
4 Mechanical Congurations
