20

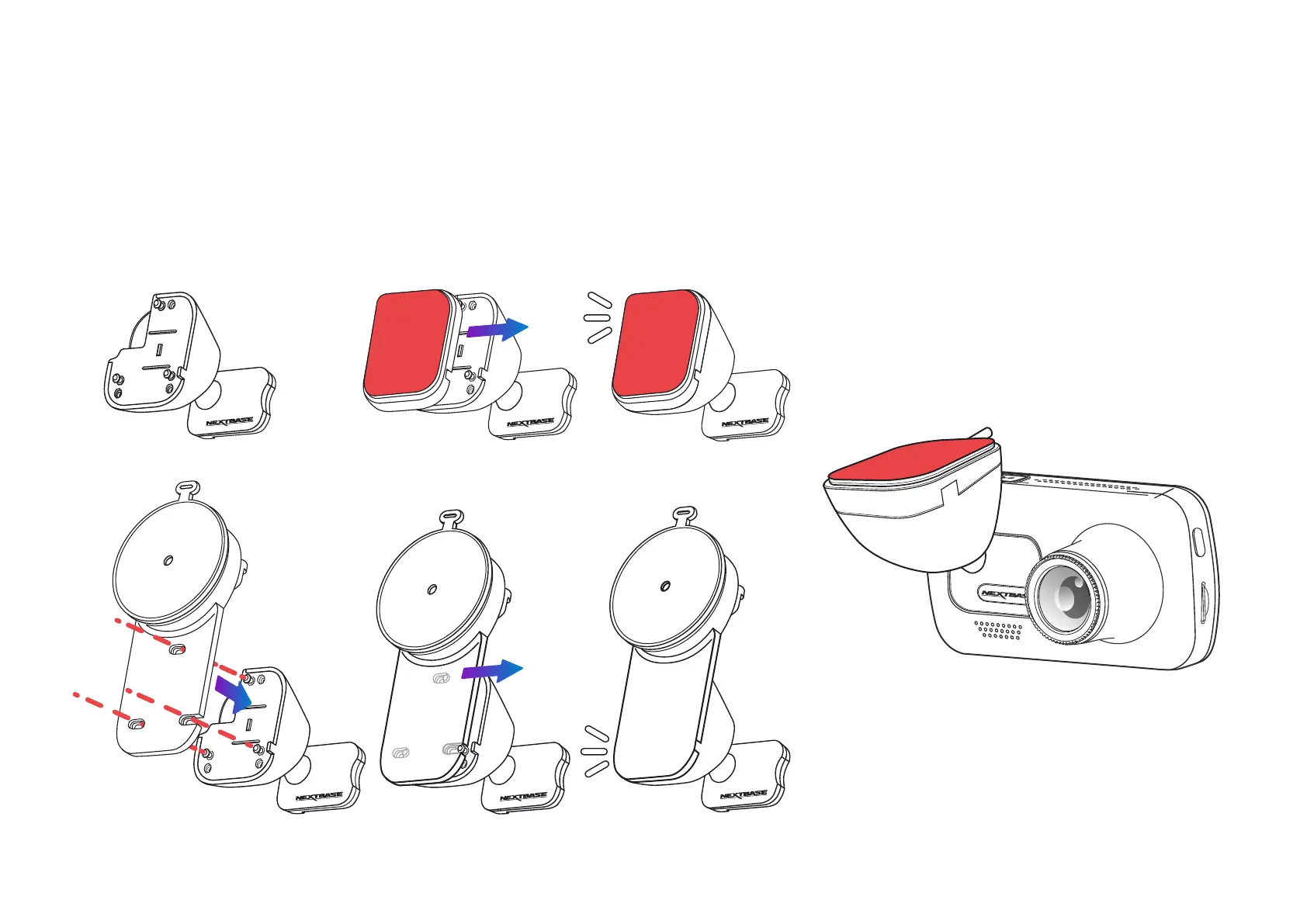

Changing Mount Attachments
Follow the instructions below to switch between mounts attachments; 3M adhesive or suction. To attach
each mount, align the pins on the mount with the holes on the adhesive/suction attachment and slide
firmly to the right until you hear the pieces click into place. To remove the top, simply do the reverse,
slide it to the left until you can lift it off of the mounting pins.
Ensure the windshield is free of grease and dirt before mounting; if necessary, clean with a warm, clean cloth.
Ensure that the Mount and Dash Cam do not obstruct the driver’s view.
Removing Adhesive Residue
If you wish to remove the adhesive mount from your windscreen, use hot soapy water or an alcohol
based solution to get rid of any sticky residue and ensure that your windscreen remains clean and clear.
Leaving residue on the windscreen for an extended period of time will make it harder to remove.
If hot water or an alcohol based solution proves ineffective, it may be necessary to use a small sharp
blade. If this is the case, protect your fingers and use the blade flat against the surface of the glass to
avoid causing scratches.
622
GW

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NextBase 622GW and is the answer not in the manual?

NextBase 622GW Specifications

General IconGeneral
HD-ReadyYes
Product colorBlack, Silver
Country of originChina
Languages supportDAN, DEU, DUT, ENG, EST, FIN, FRE, ITA, NOR, SWE
Number of cameras1
Maximum frame rate30 fps
Power cable length4 m
Main camera viewing angle140 °
Video compression formatsMP4
Main camera sensor resolution8 MP
Battery life15 min
Battery weight6 g
Output voltage3.7 V
Battery capacity320 mAh
Operating voltage12 V
Power source typeCigar lighter
Input operation voltage (max)24 V
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 7, Windows 7 Enterprise, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1
Driver fatigue alertNo
Compatible memory cardsMicroSDHC, MicroSDXC
Maximum memory card size128 GB
Package depth47 mm
Package width86 mm
Package weightWeight of the packaged product in gram.
Quantity per pallet720 pc(s)
Master (outer) case width280 mm
Master (outer) case height370 mm
Master (outer) case length330 mm
Master (outer) case weight1000 g
Customs product code (TARIC)8525890000
Master (outer) case GTIN (EAN/UPC)5060384255736
Export Control Classification Number (ECCN)EAR99
Number of shipping (inner) cases per master (outer) case20 pc(s)
Display diagonal3 \
Weight and Dimensions IconWeight and Dimensions
Depth45 mm
Width94 mm
Height53 mm
Weight125 g
