1. Antenna Connection
HD-STB, TV and VCR antenna connection
Connect IEC-Male antenna cable into HD-STB 'ANT IN' terminal.
Connect VCR 'ANT IN' cable into HD-STB 'LOOP OUT' terminal.
Connect VCR 'LOOP OUT' cable into TV RF IN terminal. (Refer to Fig. 1)
HD-STB and TV antenna connection
Connect IEC-Male antenna cable into HD-STB 'ANT IN' terminal.
Connect HD-STB 'LOOP OUT' cable into TV RF IN terminal. (Refer to Fig. 2)
To ensure optimum DTV reception, the HD-STB must be the first device connected to the antenna
system when daisy-chaining RF input/ output products such as VCRs, DVD Recorders and analog
televisions as illustrated in Fig.1 and 2.
11

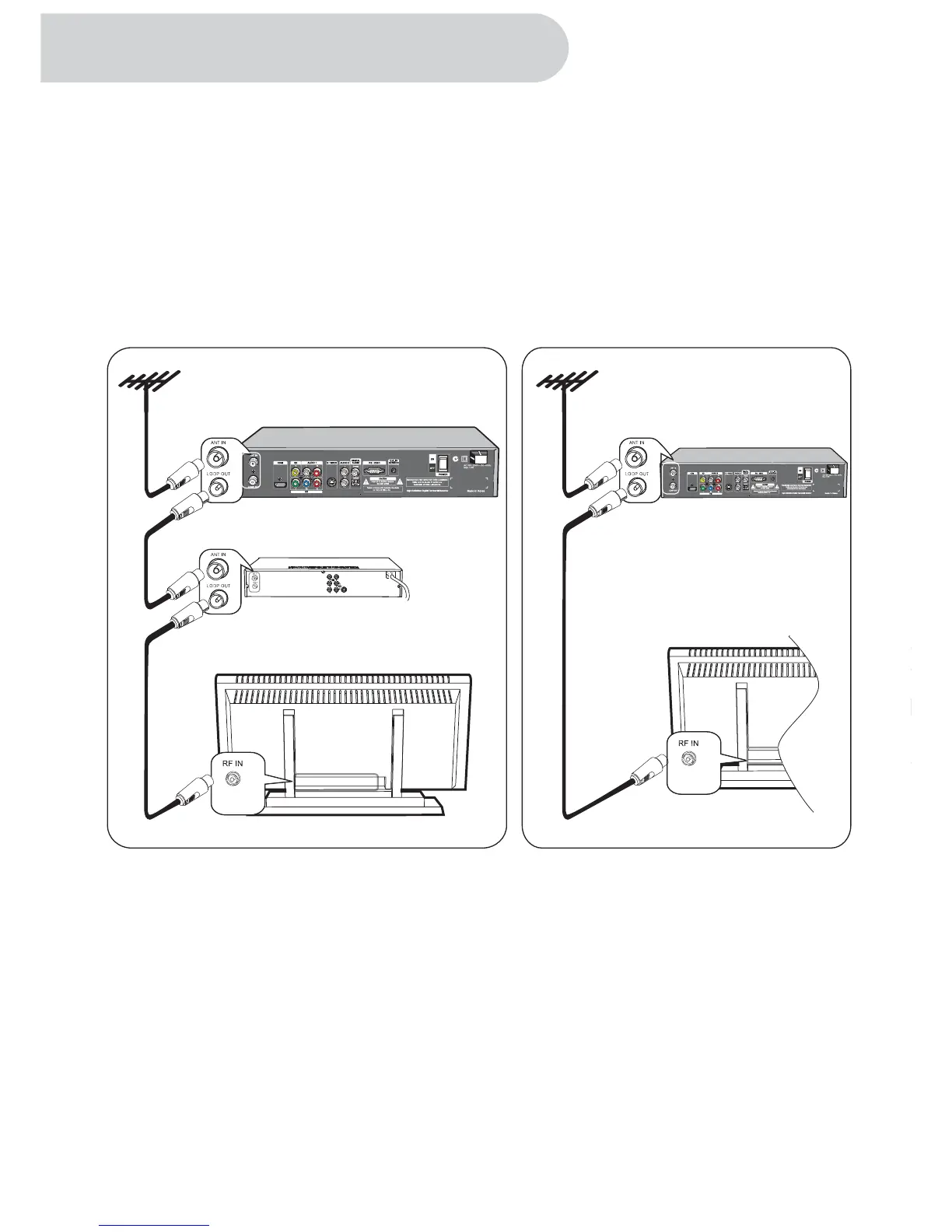

Fig.1 HD-STB Antenna Connection
with TV and VCR
Fig.2 HD-STB Antenna Connection
with TV only
HD - STB
VCR
TV
HD - STB
TV
Connecting your HD-STB
