NextWave Digital THD-6290 - Rear Panel Overview; Rear Panel Terminals

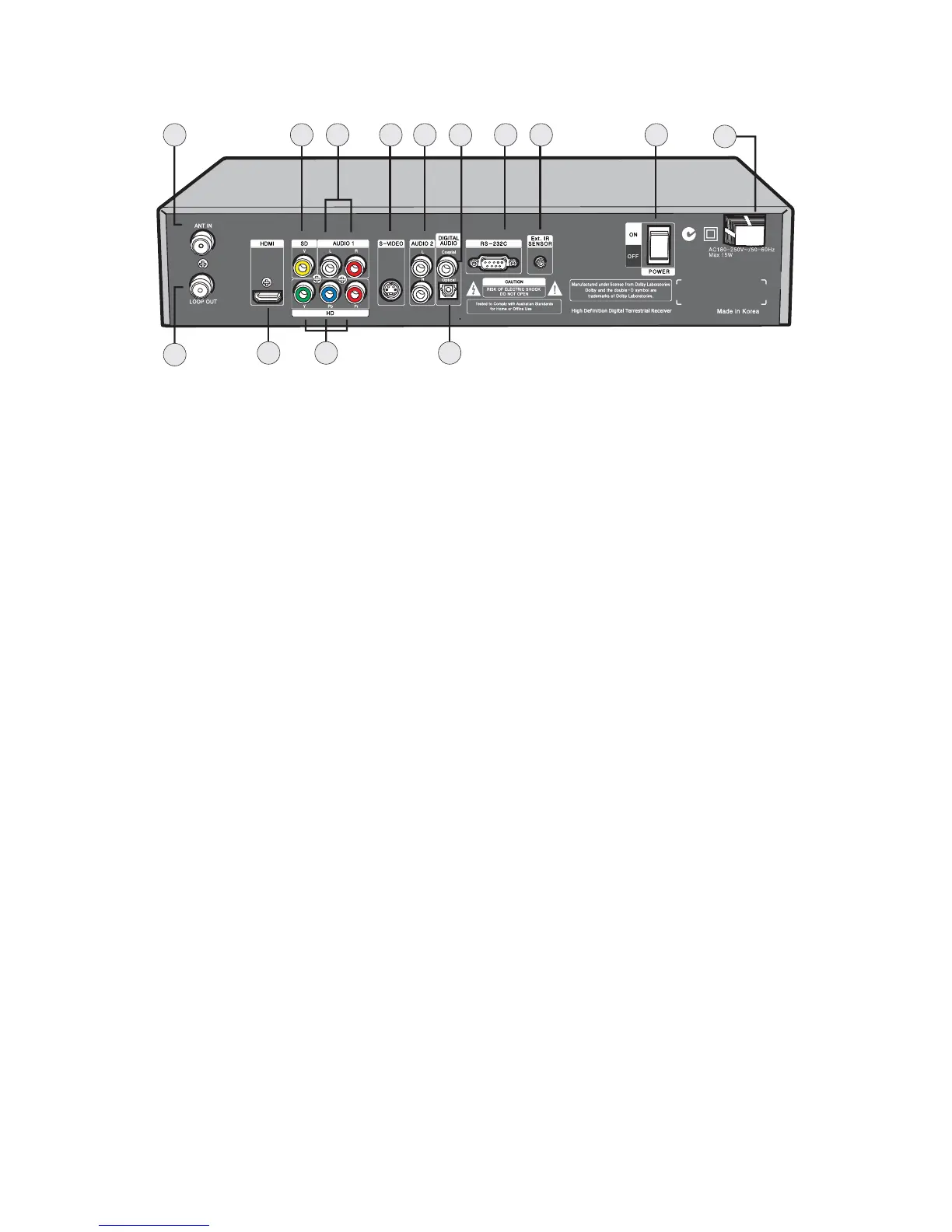

Rear Panel
9. ANT IN terminal
Attach an external Antenna to this terminal.
10. TV Composite Video Output terminal (CVBS)
Use this terminal with your TV Video input.
11. AUDIO 1 L/R (Analog Stereo Audio) Output terminal
This terminal can be used with your TV analog audio input. Refer to Audio Connection
Pages.
12. S-Video Output terminal
Use this terminal with your TV S-Video input.
13. AUDIO 2 L/R (Analog Stereo Audio) Output terminal
This terminal can be used with your TV analog audio input. Refer to Audio Connection
Pages.
14. Coaxial Digital Audio (S/P DIF) Output terminal
Use this terminal with A/V device equipped with Coaxial Digital input for Dolby*
Digital 5.1-channel sound.
15. RS-232C
Use this terminal for software upgrade purpose only.
16. Ext. IR SENSOR Extender
Use this terminal with External IR Sensor Extender.
17. AC POWER SWITCH
To supply AC Power to the main unit.
18. Power Cord
Plug this Cord to the specified AC Power socket.
19. LOOP OUT terminal
Use this terminal to feed RF signal to your TV or VCR for analog reception.
20. HDMI Output terminal
Use this terminal with your TV HDMI Video input.
21. HD YPbPr (HD Component Video) Output terminal.
Use this terminal with your TV HD Component Video input. (HDTV only)
22. Optical Digital Audio (S/P DIF) Output terminal
Use this terminal with A/V device equipped with Optical Digital input for Dolby Digital
5.1-channel sound.
*
Manufactured under license from Dolby Laboratories. Dolby and the double-D
Symbol are trademarks of Dolby Laboratories.
4
20
19
21 22
18
14
15 16 1710 11 1312
9
Overview of the equipment
