This HD-STB simultaneous output the HD Video and SD Video. So, you can watch HD Video and
recording SD Video at the same time.

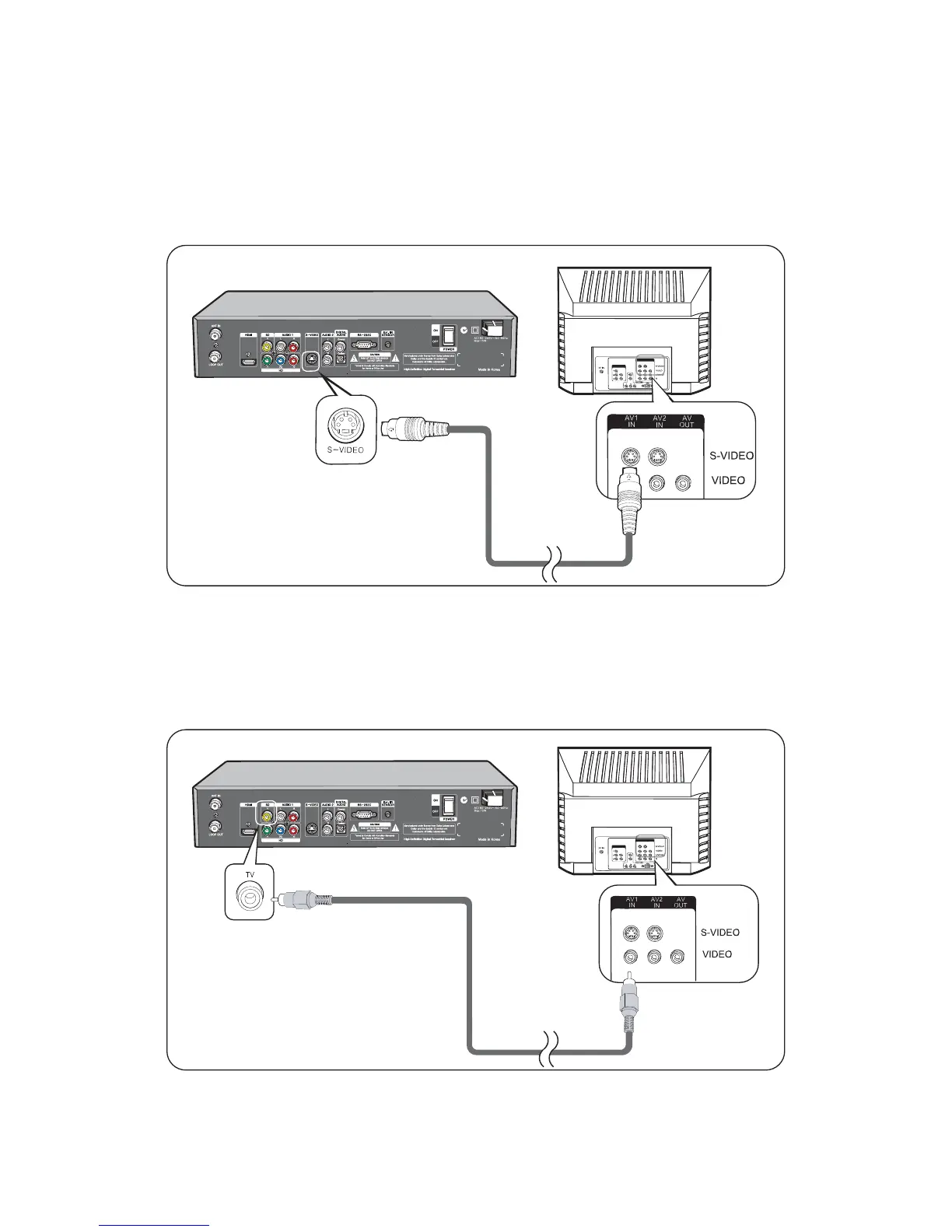

For the SD Video connection, please refer below diagram.
Connecting to a Conventional TV with S-Video
Connect a S-Video cable to the S-Video terminal on the rear of HD-STB. Connect
the other end of S-Video cable to the S-Video input terminal on the TV.
(Refer to Fig. 6)
Connecting to a Conventional TV with Composite Video
Connect a Video Cable to the TV Video terminal on the rear of the HD-STB.
Connect the other end of Video Cable to the Video Input terminal on the TV.
(Refer to Fig. 7)
14
Fig. 7 TV with Composite Video Connection
Fig.6 TV with S-Video Connection
