2. Video Connection
HDMI (High Definition Multimedia Interface) connection
HDMI is the new digital inter-connection standard that carries digital video & audio
signals via a single cable.
HD-STB HDMI output supports the following 50Hz HD video modes: 1080i, 720p
and 576p. SD via HDMI is not supported.
Connect HDMI cable between HD-STB and TV HDMI terminals as shown.
(Refer to Fig. 3)
The HD-STB HDMI connection is also DVI compatible when using a HDMI to DVI
cable (not supplied) or HDMI to DVI gender changer. (not supplied) (Refer to Fig.4)
When using a HDMI to DVI connection, a separate audio connection is also required
between the HD-STB and display device.
12

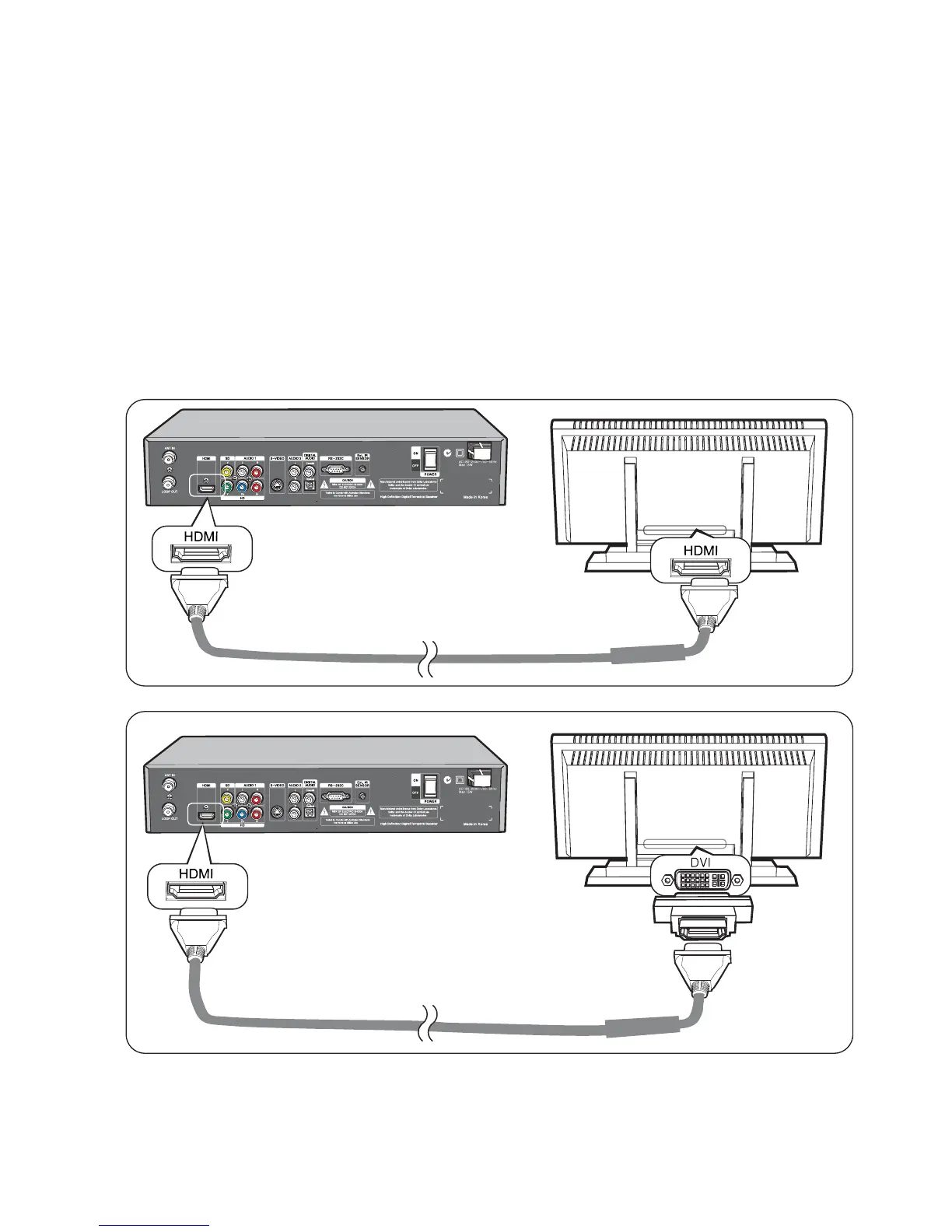

Fig.3 HDMI to HDMI Input TV
Fig.4 HDMI to DVI Input TV
Gender changer
HDMI CABLE
HDMI CABLE
Connecting your HD-STB
