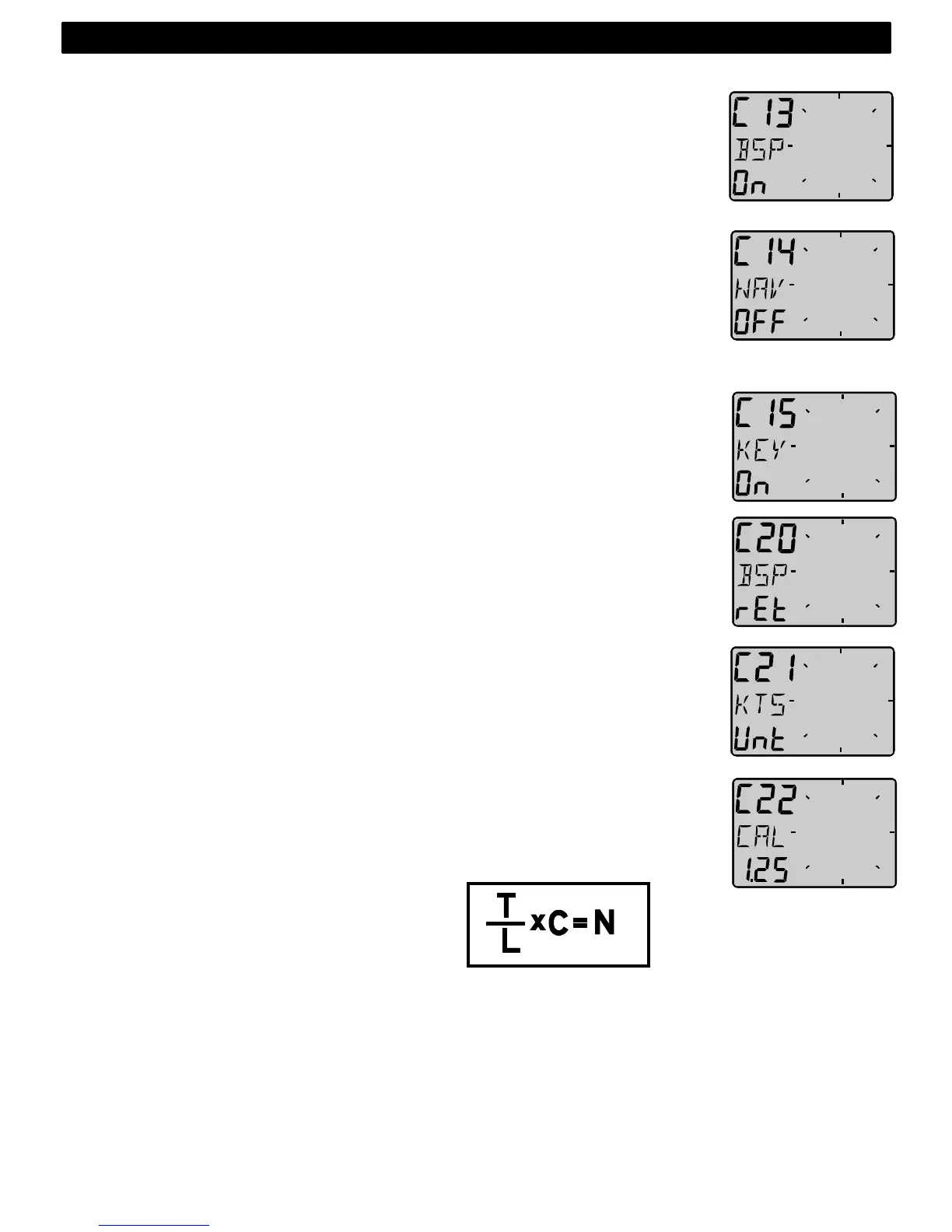

4.1.3 C13 Displaying boat speed, trip log and temperature, option
When set to OFF, the functions will be removed from the display. The
Wind Data instrument may be used as a Server in the Nexus Network,
transmitting the log and temp to other Nexus instruments without having
the information displayed in this instrument.
4.1.4 C14 Display NAV functions, option
NAV functions are only useful when the Wind Data is connected in a
Nexus Network with Compass transducer and a navigator. The selection
NAV On will add the functions as described under Nexus Network See
4.6.
4.1.5 C15 Beep when key is pressed
Setting On will make a beep at every key press, while OFF is silent.
4.2 C20 Calibration of Log
To return to normal mode, press KEY when the text [rET] is displayed.
4.2.1 C21 Select unit for speed
Unit for speed, knots (KTS), km/h (K/h) or miles/h (m/h).
4.2.2 C22 Calibration of log transducer
Calibration value for speed and distance (1.00 - 1.99).
Drive the boat a measured distance at normal speed.
Compare the distance with the trip counter.
Calculate the value with the following formula.
True distance from the sea chart: T
Log trip counter distance: L
The current calibration value: C
New calibration value: N
If you suspect a current in the water, drive the boat in both directions and
divide trip counter distance by two.
If the Wind Data is installed with Nexus Server where the log is
already calibrated, no further calibration is needed.
