8

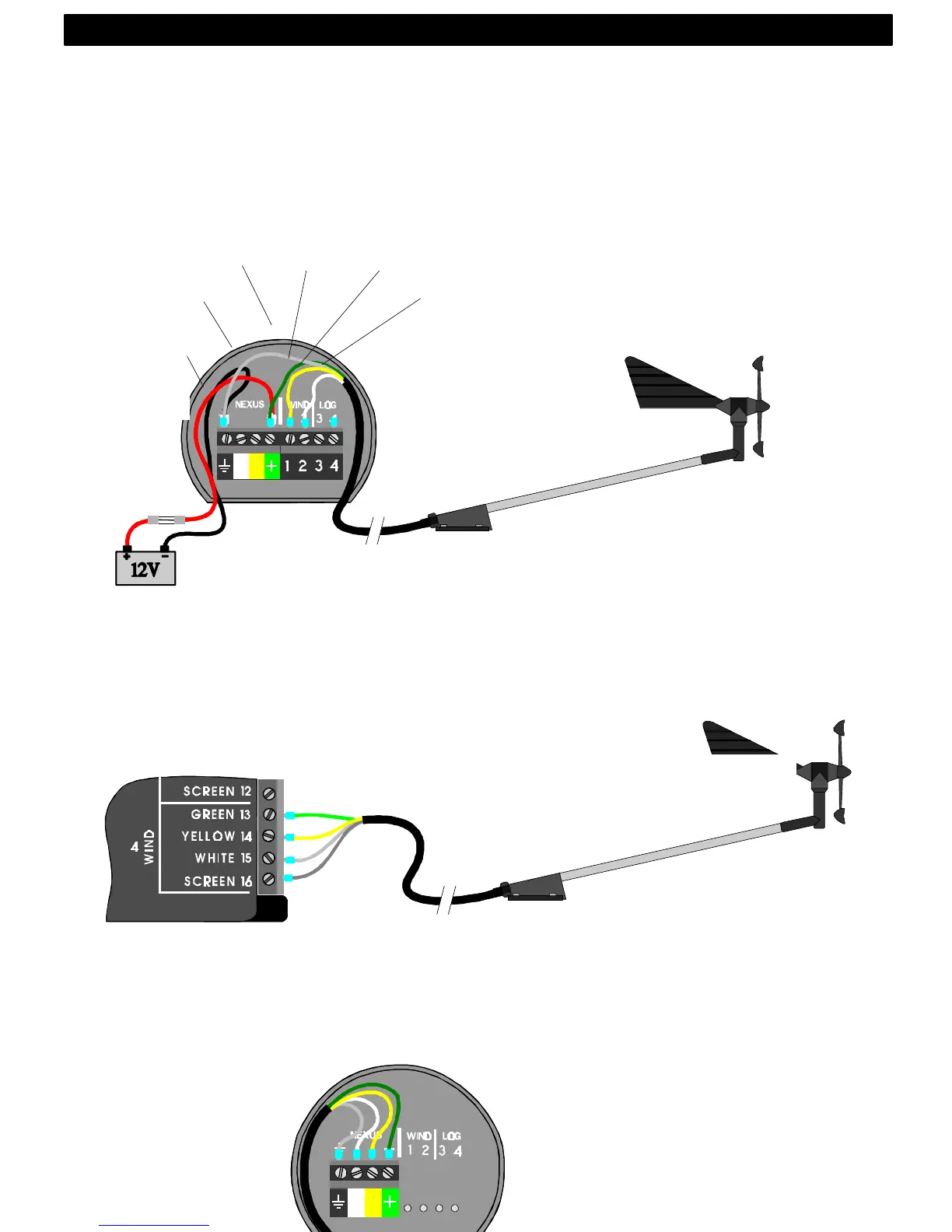

1.2 Installing cable
The power cable is connected via a 3A fuse from the battery or at the
boats fuse panel and direct to the instrument or Server. One red and one
black power wire is included. Note, set C71 On (see 5.5.1)
Always connect a 3 AMP fuse between Power supply and
instrument.
1.3 Connections in Nexus Network
If you already have a Nexus Network i.e. a Server, it is more practical to
connect the transducer to the Server due to the single instrument cable
installation. Note, set C71 OFF (see 5.5.1)
The instrument is then connected to the Server’s Nexus Network terminal
(pin 5, 6, 7 and 8) or any instrument .
Server
Transducer
3A Fuse
Black
Screen
Red
Green Yellow
White
2: INSTALLATION
To Next Page
