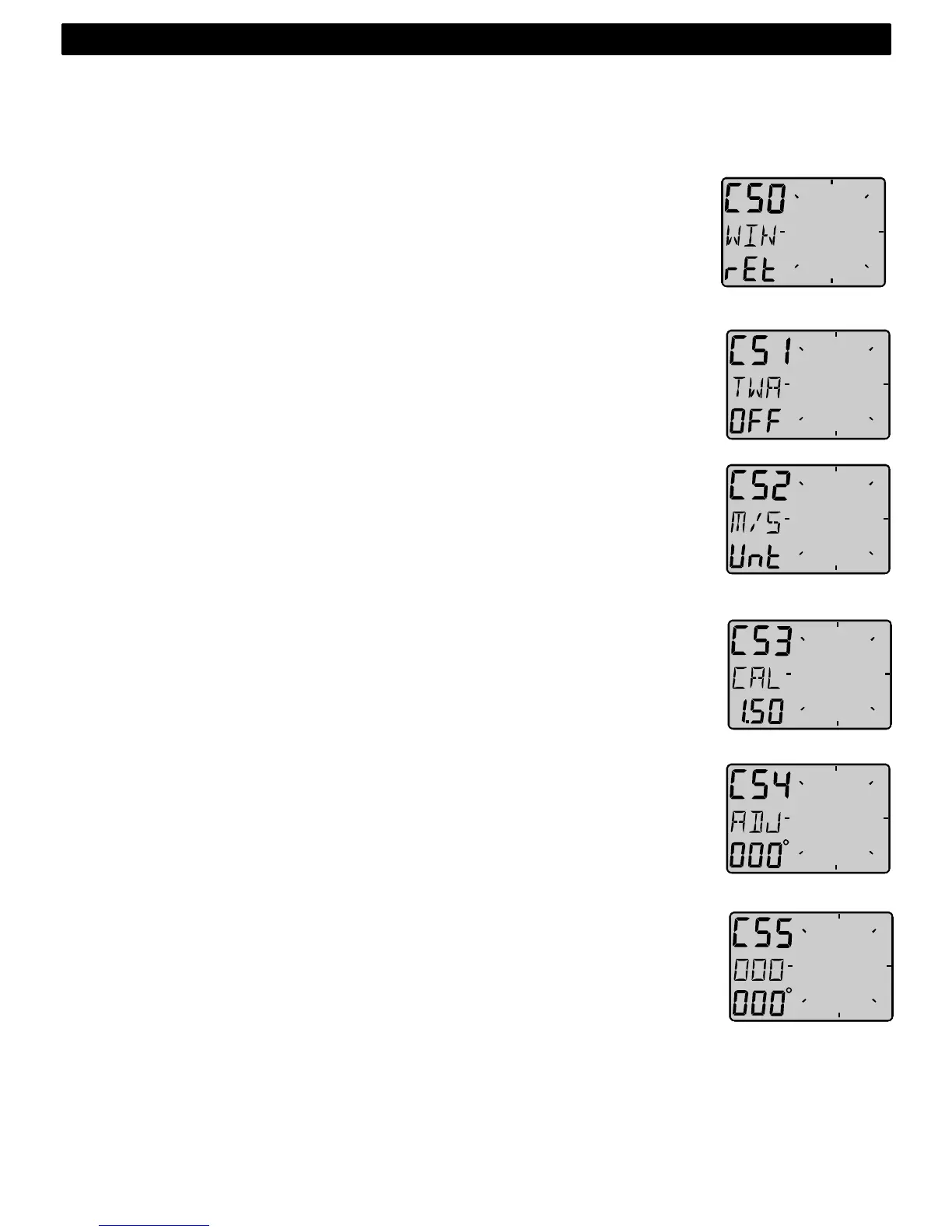

4.4 C50 Wind Settings
To return to normal mode, press KEY when the text [rET] is displayed.
4.4.1 C51 Network setting of true or apparent Wind angle
Select true [TWA] or apparent Wind angle [AWA] as main function. The
optional analogue Wind instrument will display the same selection. All
Multi Control instruments which have the calibration code 63 set to [WIA]
will display what is selected in C51.
4.4.2 C52 Unit for Wind speed
Unit for Wind speed [KTS] for (KnoTS), [M/S] for (Metres/S) and [BF] for
(Beaufort).
4.4.3 C53 Wind speed calibration
Do not change this factory setting.
4.4.4 C54 Adjustment of Wind angle
Mast top unit misalignment adjust value or the so called ”A-fault”, makes
it possible to adjust any horizontal angle.
Example: If the Wind angle is +4° when you sail/drive the boat straight
into the Wind, set the calibration value in C54 to 356°.
4.4.5 C55-C62 Calibration table for the Wind
transducer
In channels C55 to C62 you set the calibration values for the mast top
unit. Each mast top unit is individually calibrated for best accuracy. See
the separate Wind calibration certificate supplied with each mast top unit.
Each of the inter-cardinal directions are calibrated.
C55 000 000°
C56 045 045°
C57 090 090° Set the calibration value according
C58 135 135° to the provided calibration certificate
5: CALBRATION
