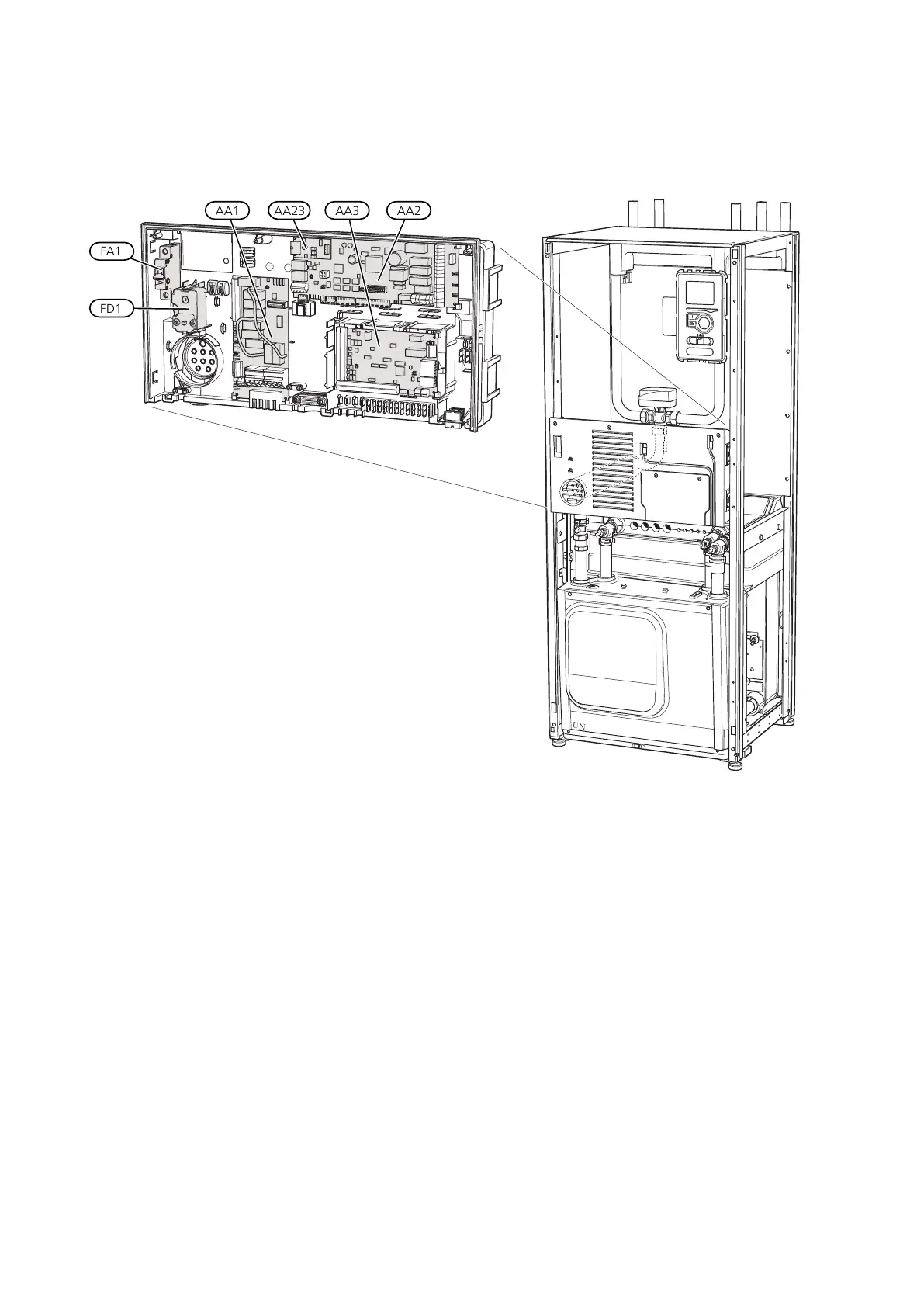

Distribution boxes
UN
F1255
FD1
AA1
FA1
AA3
AA2AA23
FA1
FD1
AA23 AA2AA1 AA3
Electrical components
Immersion heater cardAA1
Base cardAA2
Input circuit boardAA3
Communication boardAA23
Miniature circuit-breakerFA1
Temperaturelimiter/EmergencymodethermostatFD1
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
11Chapter 3 | The heat pump designNIBE F1155
