Nibe F1155 Series Installer Manual

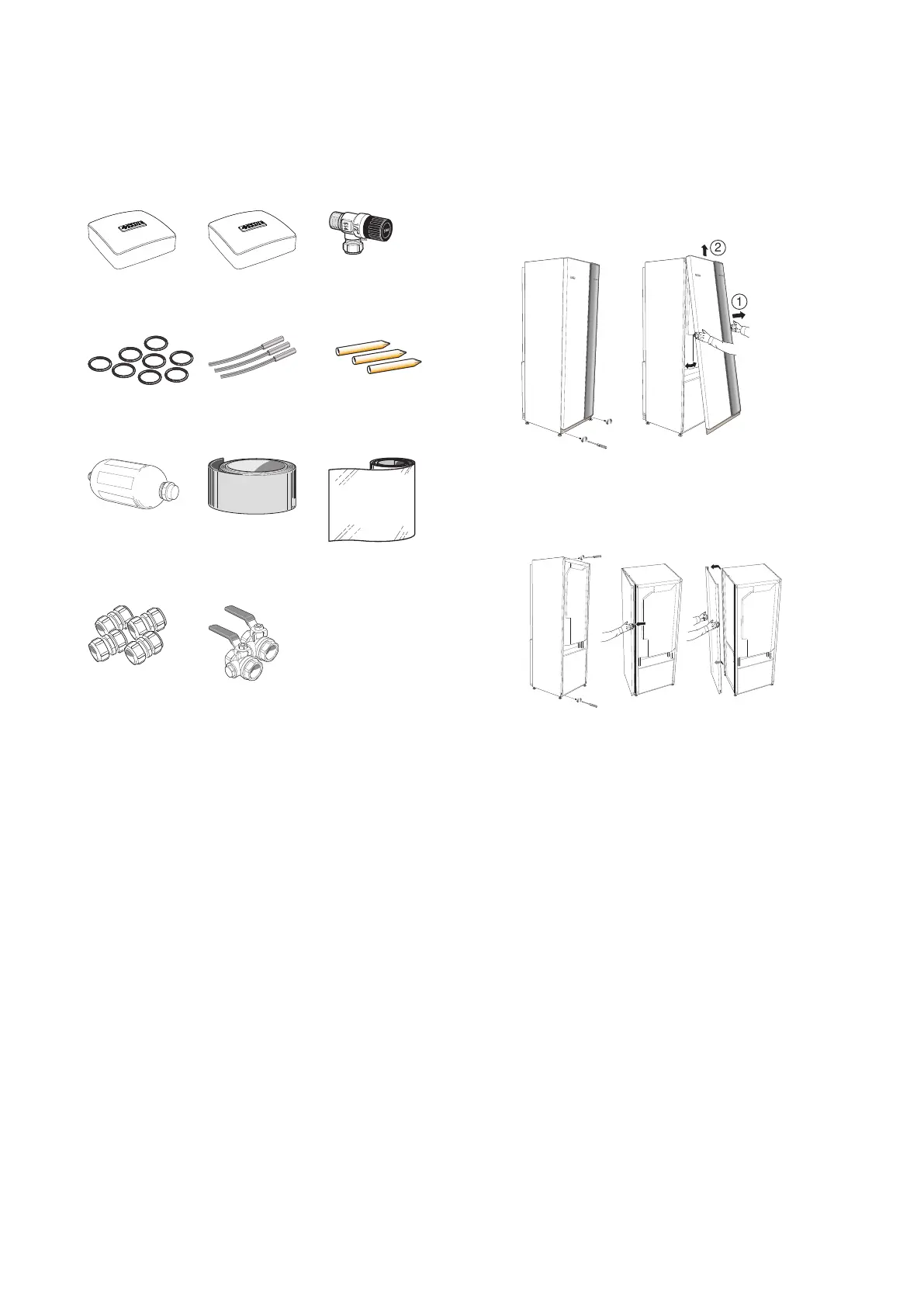

Supplied components
LEK
Safety valve
0.3 MPa (3 bar)
1 x
Room sensor
1 x
Outside sensor
1 x
Tubes for sensors
3 x
Temperature
sensor
3 x
O-rings
8 x
LEK
Aluminium tape
1 x
LEK
Insulation tape
1 x
LEK
Level vessel
1 x
Filterball
6 kW
1 x G1
1 x G3/4
12 kW
1 x G1
1 x G1 1/4
Compression ring
couplings
6 kW
2 x (ø28 x G25)
3 x (ø22 x G20
12 kW
5 x (ø28 x G25)
Location
The kit of supplied items is placed in packaging on top
of the heat pump.
Removing the covers
Front cover
1
2
LEK
LEK
LEK
LEK
LEK
1.
Remove the screws from the lower edge of the front
panel.
2.
Lift the panel out at the bottom edge and up.
Side covers
LEK
LEK
LEK
The side covers can be removed to facilitate the installa-
tion.
1.
Remove the screws from the upper and lower edges.
2.
Twist the cover slightly outward.
3.
Move the hatch outwards and backwards.
4.
Assembly takes place in the reverse order.
9Chapter 2 | Delivery and handlingNIBE F1155

Nibe F1155 Series Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Installation	Indoor
Heating Capacity	1.5-16 kW
Cooling Capacity	Not applicable
Power Input Cooling	Not applicable
EER Cooling	Not applicable
Weight Outdoor Unit	Not applicable
Dimensions Outdoor Unit (HxWxD)	Not applicable
Dimensions Indoor Unit (HxWxD)	600 x 620 mm
