Nibe VVM 320 - Component Description; Components

Components
DescriptionComponent

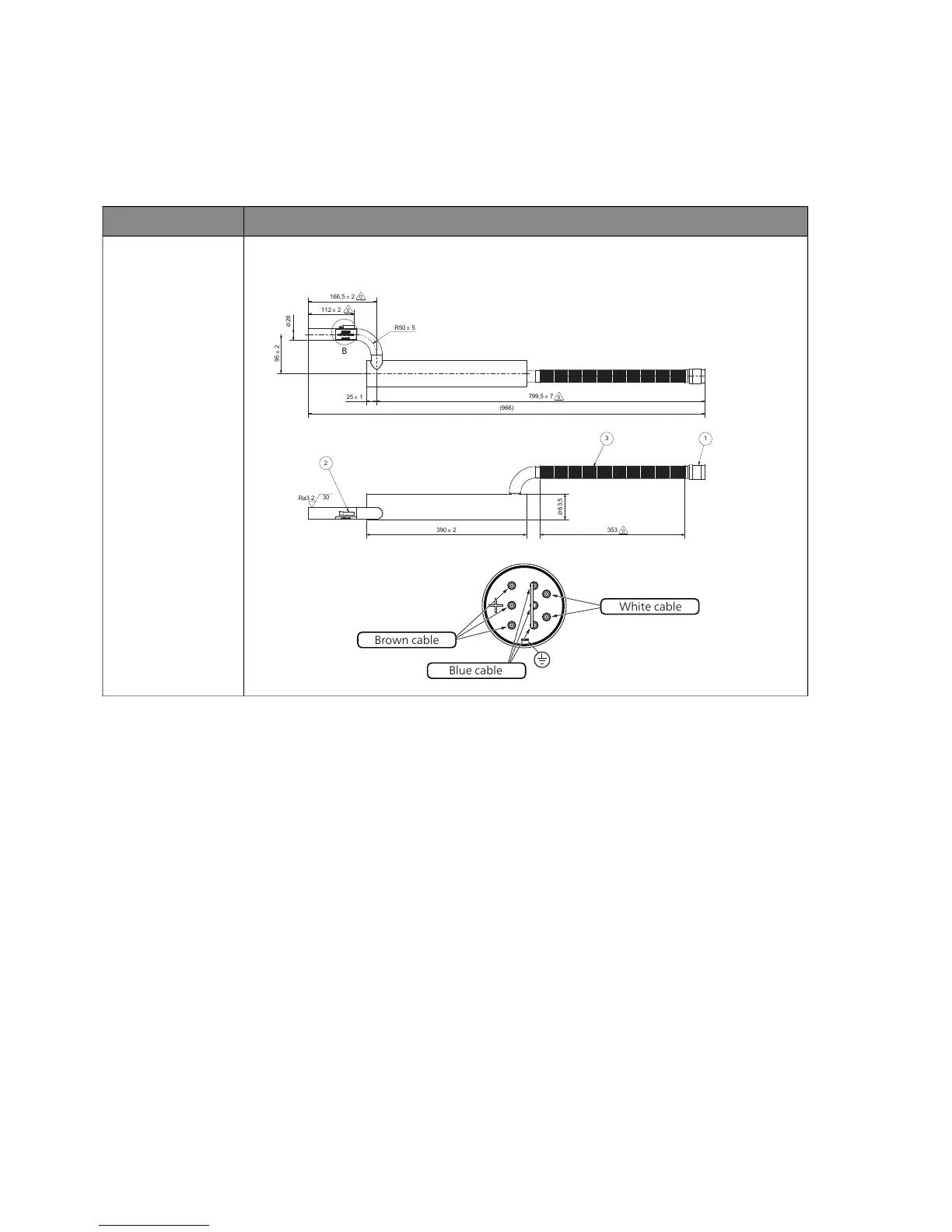

White coil (1x3000 W) 400 V, resistance 53.20 ohmImmersion heater
(EB1)
Brown/Blue coil (3x2000 W) 230 V, resistance 26.38 ohm.
B
9
5
±
2
112 ± 2
166,5 ± 2
Ø
2
8
50R ± 5
799,5 ± 7
(966)
25 ± 1
390 ± 2 353
Ø
6
3
,
5
30
Ra3.2
0
0
0
0
1
3
2
Brown cable
White cable
Blue cable
