Nice 7251 - Adjusting Gate Open;Close Limits

33
25 - BOARD NOMENCLATURE
Function select
Display select
Spare fuses
Incoming 30
Amp fuse
Reset Hard Shut
down button
LCD screen
OK or Enter
Selection down
Selection up
Open the gate
Stop gate
movement
Close the gate

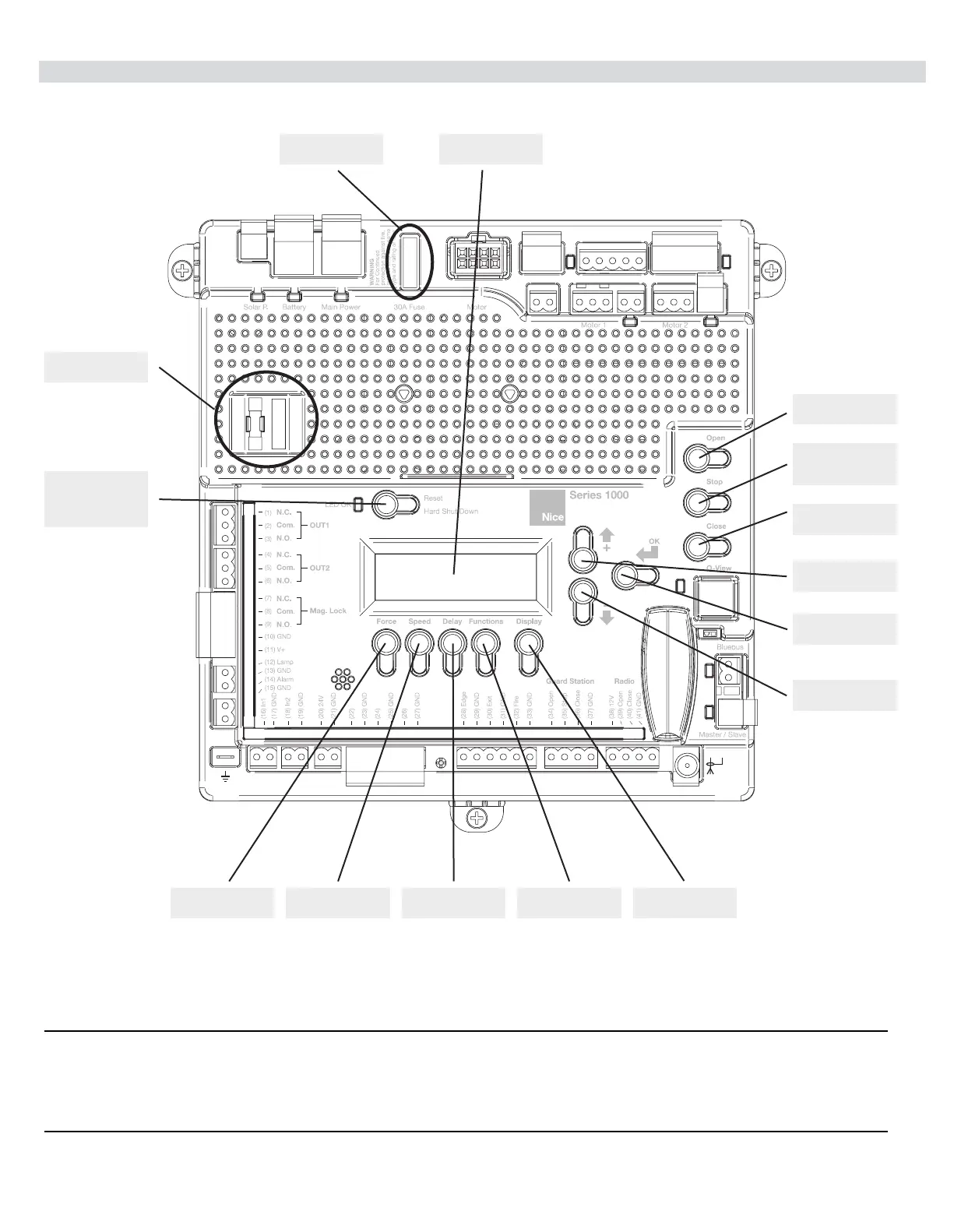

Figure - GENERAL BOARD OVERVIEW
THE PROGRAMMING BUTTONS INDICATED IN THE ABOVE REFERENCE SHOULD BE USED ONLY AFTER UNDERSTANDING THE
MANUAL AND ITS RELATION TO THE PROGRAMMING SEQUENCES SHOWN ON THE FOLLOWING PAGES. CARE SHOULD BE TAKEN
WHENEVER CHANGES ARE IMPLEMENTED TO ENSURE PROPER FUNCTIONALITY AND SAFETY.
Safety
Shadow Entrap
Shadow
Force select
Speed select
Delay select
