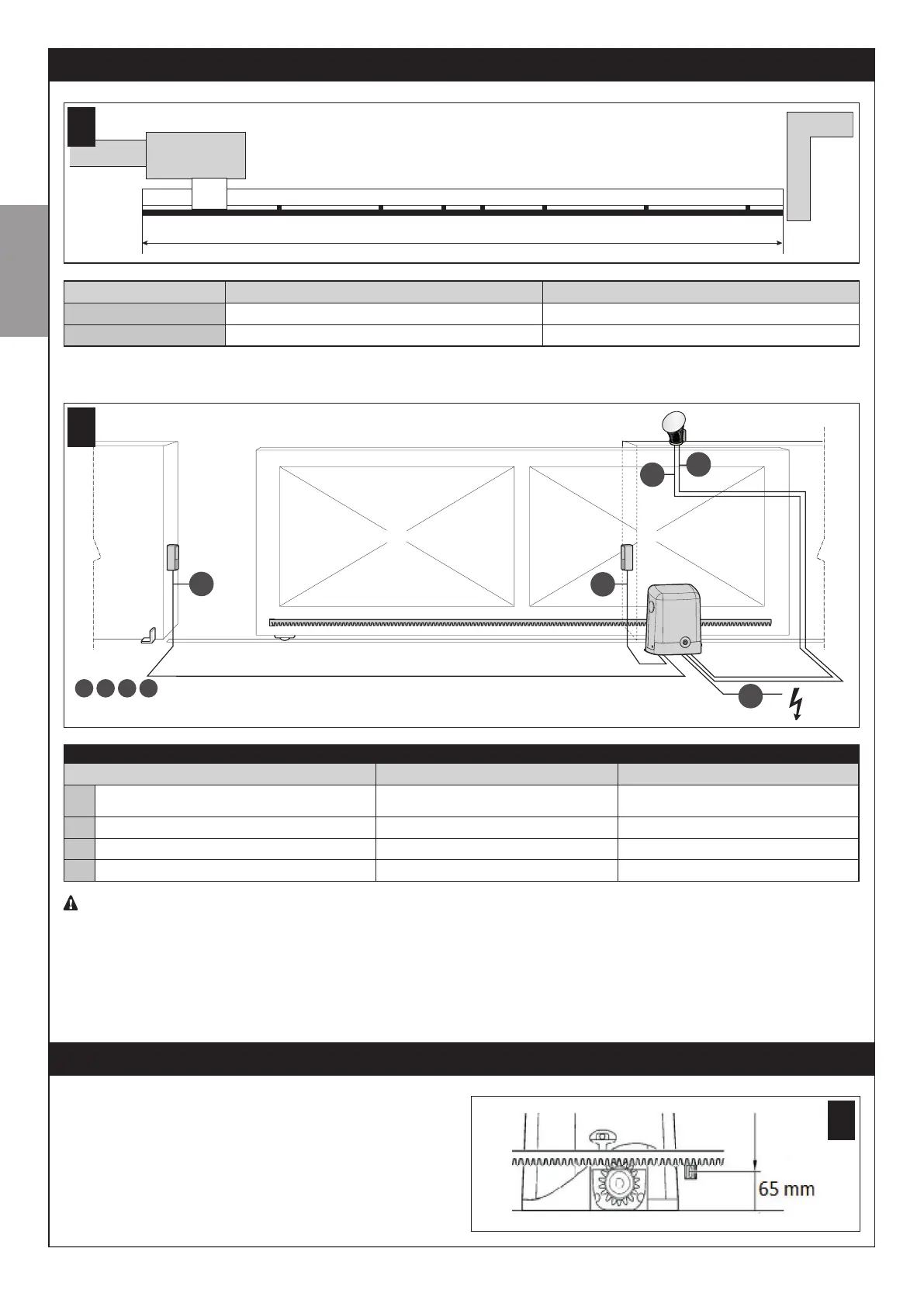

Nice FILO 400 - Limitations of Use and Cables; Limitations of Use; List of Cables; Product Positioning and Fastening

2–English
English
A
1
DIMENSIONS (A) FILO 400 FILO 600
Weight up to: 400kg 600kg
Leaf length 5.5m 7 m
Ifoneoftheabovelimitationsisnotfullled,youshouldcontactourtechnicalassistanceservice.
2.1 - LIST OF CABLES
D
D
A
FL200
PH200PH200
FILO400C
FILO600C
CR502
B
C
A B C D
=
Refer to Table 1
2
TABLE 1 - Types of electrical cables
Connection Type of cable Maximum admissible length
A
230VAC50/60Hzpowersupply
(250VcainversionAU01)
3x1.5mm²cables 30m(note1)
B Warninglightoutput 2x0.5mm²cables 20m
C Radioaerial RG58shieldedcable below5m
D Photocells 2x0.5mm²or1mm²cables 20m
The cables used must be suited to the type of installation. For example, we recommend using an H03VV-F cable for internal installation
or an H07 RN-F cable for external installation.
Note 1:itispossibletouseapowercablelongerthan30mprovidedthatithasalargercross-sectionalarea(forexample,3x2.5mm²),likewhenan
earthconnectionmustbemadenearthedevice.
Note 2:fortheECScablesoftheLM100bus,therearenoparticularissuesassociatedwiththeuseofasinglecablethatincludesmultipleconnections.
Note 3:theStopandSbSinputscanbeconnectedwithasingle4x0.5mm²cable.
2
LIMITATIONS OF USE
3
POSITIONING AND FASTENING
3.1 - POSITIONING AND FASTENING THE MOTOR
01. Verifythatthesurfaceofthegateleafissuitableforaccommodating
thefasteningsforpositioningtherack.Thefasteningpointsmustbe
situated65mmabovetheground(Fig.3).
3
