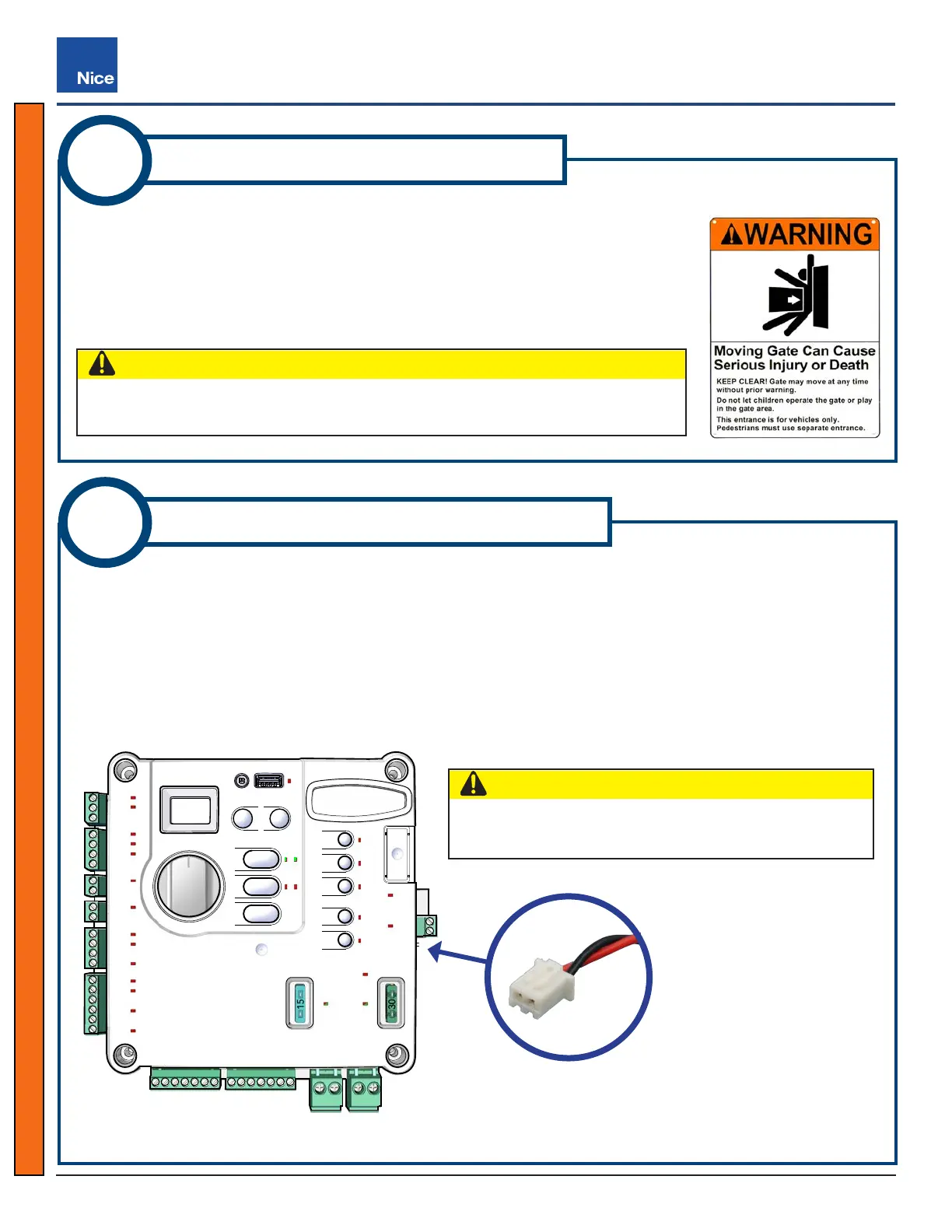

Attach Warning Signs to Gate
Ensure Audio Alarm Connection
1. Place one warning sign (see right) on outside of gate and the other inside of
gate in high visibility locations (eye height) to warn of entrapment dangers. If
signs cannot be attached to gate, ensure they are visible to pedestrians and
anyone operating the gate.
2. Use two cable ties per sign, or alternative means, to securely ax signs to gate.
CAUTION
The warning signs provided in the installation kit are required by UL325 to be
attached to both sides of gate!
SolarBOX310
Alarm Connector Location
CAUTION
An alarm is required to be connected to the Mercury
310 controller for UL325 compliance!
Check to ensure a connection of the audio alarm (siren) to the Mercury 310 controller per the illustration
below. The audio alarm is installed in the bottom of the chassis and used for the following:
’ Signals a hard shutdown of the system, which is triggered by two consecutive entrapment events.
’ Signals a gate movement when the “alarm” function is ON.
’ Chirps to indicate various functions during programming.
The alarm is a piezoelectric device that can produce 100 dB @ 1 foot.
