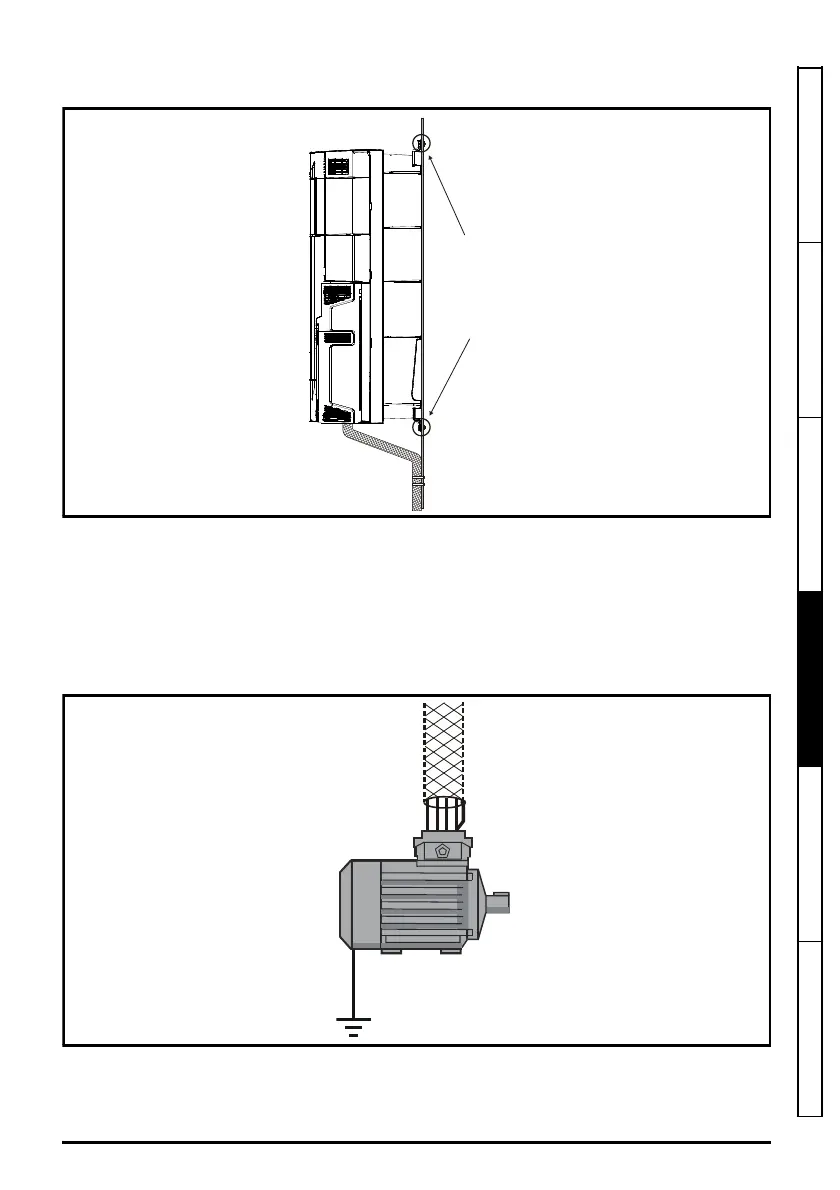

Unidrive M/HS Frame 5 to 6 Power Installation Guide 87
Issue Number: 9
Safety information Product information Mechanical installation Electrical installation
Technical data
UL listing information
5.1.3 Power dissipation
Table 5-7 Losses @ 40° C (104° F) ambient
Model
Normal Duty Heavy Duty
Nominal
rating
Drive losses (W) taking into account any
current derating for the given conditions
Nominal
rating
Drive losses (W) taking into account any
current derating for the given conditions
kW hp
2
kHz
3
kHz
4
kHz
6
kHz
8
kHz
12
kHz
16
kHz
kW hp
2
Khz
3
kHz
4
kHz
6
kHz
8
kHz
12
kHz
16
kHz
200 V
05200250 7.5 10 280 291 302 324 344 356 342 5.5 7.5 236 245 254 272 288 284 287
06200330 11 15 375 394 413 452 490 480 485 7.5 10 264 277 290 316 342 382 386
06200440 15 20 442 463 484 528 522 481 486 11 15 350 366 382 417 410 388 392
400 V
05400270 15 20 295 324 353 356 355 359 362 11 20 276 276 282 285 290 301 304
05400300 15 20 297 332 367 434 441 417 424 15 20 307 322 333 352 374 372 376
06400350 18.5 25 378 417 456 532 613 652 645 15 25 354 389 424 498 496 502 507
06400420 22 30 469 515 561 657 651 646 650 18.5 30 413 455 497 487 486 495 500
06400470 30 40 616 656 659 650 646 643 649 22 30 462 500 496 487 486 495 500
575 V
05500030 2.2 3 82 92 102 121 142 183 223 1.5 2 73 82 91 108 126 162 198
05500040 4 5 120 135 150 180 209 269 328 2.2 3 84 94 104 124 145 187 228
05500069 5.5 7.5 173 194 215 260 302 388 474 4 5 136 153 170 204 236 304 371
06500100 7.5 10 191 215 239 287 334 430 525 5.5 7.5 166 187 208 249 291 374 457
06500150 11 15 253 284 315 376 438 563 569 7.5 10 236 265 294 351 410 501 506
06500190 15 20 325 362 399 484 569 575 580 11 15 284 317 350 418 496 501 506
06500230 18.5 25 391 448 505 596 682 689 696 15 20 343 382 421 508 523 641 648
06500290 22 30 534 623 712 810 822 830 839 18.5 25 456 533 610 628 635 641 648
06500350 30 40 675 798 836 813 823 831 840 22 30 550 546 624 622 627 633 640
