Nikon D5500 Reference Manual

380 Technical Notes
❚❚ Vibration Reduction (VR)
The lenses described in this section support vibration reduction
(VR), which reduces blur caused by camera shake even when the
camera is panned, allowing shutter speeds for DX format
cameras to be slowed by approximately 4.0 stops at maximum
zoom position (according to Camera and Imaging Products
Association [CIPA] standards; effects vary with the photographer
and shooting conditions).
This increases the range of shutter
speeds available and permits hand-held, tripod-free
photography in a wide range of situations.

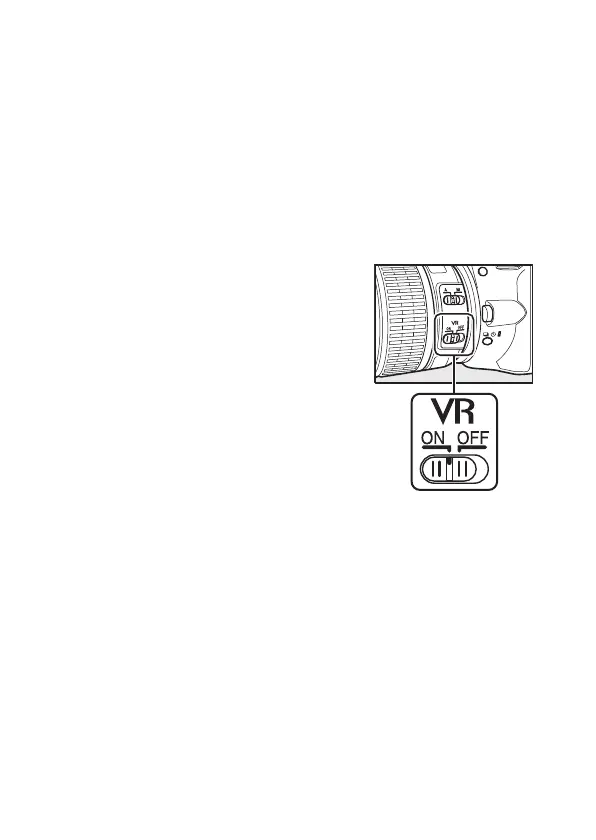

To use vibration reduction, slide the
vibration reduction switch to ON.
Vibration reduction is activated when the
shutter-release button is pressed
halfway, reducing the effects of camera
shake on the image in the viewfinder and
simplifying the process of framing the
subject and focusing in both autofocus
and manual focus modes. When the
camera is panned, vibration reduction
applies only to motion that is not part of
the pan (if the camera is panned
horizontally, for example, vibration reduction will be applied
only to vertical shake), making it much easier to pan the camera
smoothly in a wide arc.
Turn vibration reduction off when the camera is securely
mounted on a tripod, but leave it on if the tripod head is not
secured or when using a monopod.

Nikon D5500 Specifications

General

Megapixel	24.2 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Image stabilizer	No
Total megapixels	24.78 MP
Image sensor size	- \
Image formats supported	JPG, RAW
Maximum image resolution	6000 x 4000 pixels
Image sensor size (W x H)	23.5 x 15.6 mm
Still image resolution(s)	(L) 6000 x 4000, (M) 4496 x 3000, (S) 2992 x 2000
Optical zoom	- x
Focal length range	- mm
Lens mount interface	Nikon F
Minimum aperture number	-
Focus	TTL
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	39
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 25600
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	25600
ISO sensitivity (min)	100
Light exposure control	Program AE
Light exposure correction	±5EV (1/2; 1/3 EV step)
Camera shutter type	Electronic
Shutter speed settings	B, T
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	30 s
Flash modes	Auto, Fill-in, Flash off, Red-eye reduction, Second curtain synchro, Slow synchronization
Flash sync-speed	0.005 s
Flash guide number	12 m
Shoe mounting point type	Hot shoe
Flash exposure correction	-3EV - +1EV (1/2; 1/3 EV step)
Power source type	Battery
Video resolutions	640 x 424, 1280 x 720, 1920 x 1080 pixels
Motion JPEG frame rate	60 fps
Video formats supported	H.264, MOV, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Resolution at capture speed	640x424@30fps, 1280x720@50fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps
Audio formats supported	LPCM
Memory slots	1
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	3.2 \
Display resolution	720 x 480 pixels
Display resolution (numeric)	1036800 pixels
Magnification	0.82 x
USB version	2.0
HDMI connector type	Mini
Security algorithms	AES, WPA2-PSK, WPS
Data network	Not supported
Wi-Fi standards	802.11b, 802.11g
Eye relief	17 mm
Scene modes	Beach, Candlelight, Children, Close-up (macro), Dawn, Dusk, Food, Night landscape, Night portrait, Party (indoor), Pet, Portrait, Snow, Sports, Sunset, Landscape (scenery)
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Cloudy, Flash, Fluorescent, Incandescent, Manual, Shade, Sunny
Camera playback	Highlights, Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Languages support	BEN, ARA, BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, NOR, POL, POR, RUS, SER, SWE, TUR, UKR
Camera file system	DCF 2.0, DPOF, Exif 2.3
Diopter adjustment (D-D)	-1.7 - 0.5
Battery type	EN-EL14a
Product color	Black, Red
Operating temperature (T-T)	0 - 40 °C
Cables included	AV, USB

Weight and Dimensions

Depth	70 mm
Width	124 mm
Height	97 mm
Weight	420 g
Weight (including battery)	470 g
