Chapter 4 Assembly
58

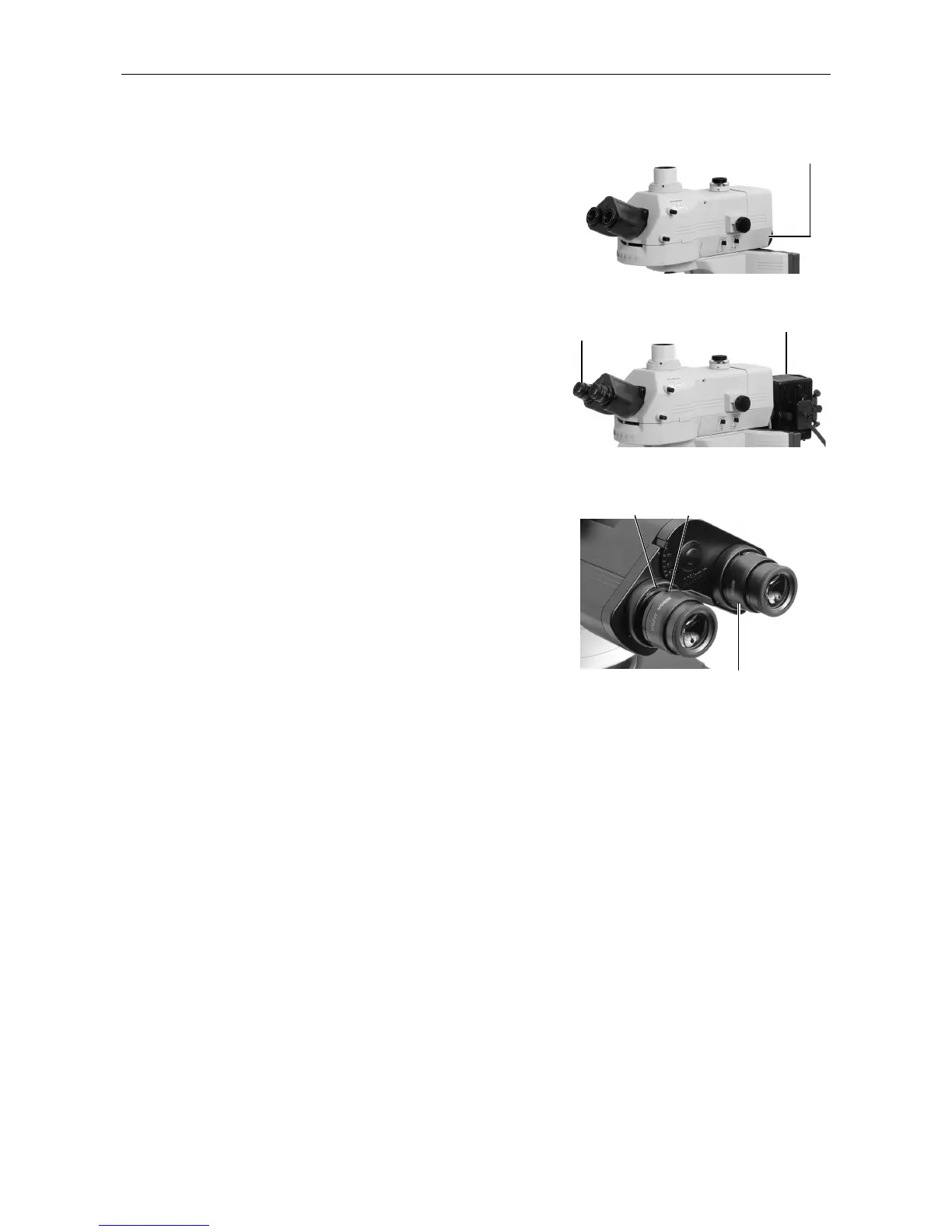

(10) Attach the mercury lamphouse to the back of
the bayonet mount. (For more information,
refer to the instruction manual provided with
the super high-pressure mercury lamp power
supply.)
1) Attach a collector lens to the lamphouse.
2) Turn the bayonet mount clockwise (viewed
from the back) as far as it will go.
3) Insert the lamphouse into position.
4) Turn the bayonet mount anticlockwise
(viewed from the back) to lock the
lamphouse.
5) Attach a mercury lamp.
6) Connect the mercury lamphouse to the
mercury lamp power supply.
(11) Attach the eyepiece by aligning the projection
of the eyepiece tube sleeve with the notch at
the objective.
