Chapter 4 Assembly
59
4
9

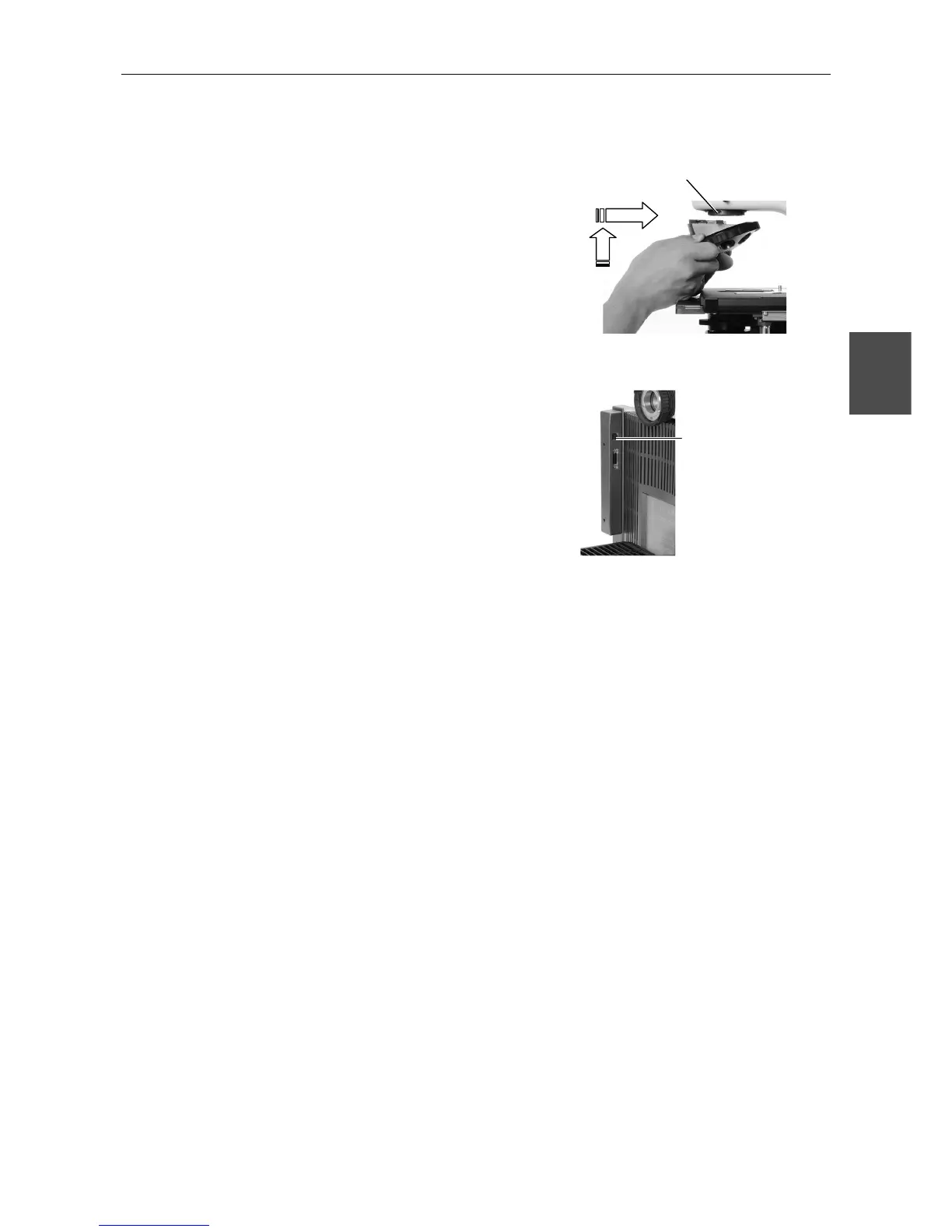

Installing a Revolving Nosepiece
(1) Lift the revolving nosepiece from a position
just forward of the point directly below the
fitting part and slide toward the back to
attach. (Continue sliding the revolving
nosepiece until its front position is aligned
with that of the fitting part.)
(2) Secure with the screw.
(3) When using the intelligent revolving
nosepiece, connect the connector attached to
the revolving nosepiece to the upper port
found inside the C-BOX.
10
Installing Objectives
Screw objectives into the revolving nosepiece. When installing the objective in this way, make
sure that the magnification of the objective increases when the revolving nosepiece is turned
clockwise (clockwise when viewed from above the eyepiece).
Fixing the revolving nosepiece
Connect the connector
here when using the
intelligent revolving
nosepiece.
To Next Page
