Nikon ECLIPSE 80i User Manual

Chapter 4 Assembly
60
11

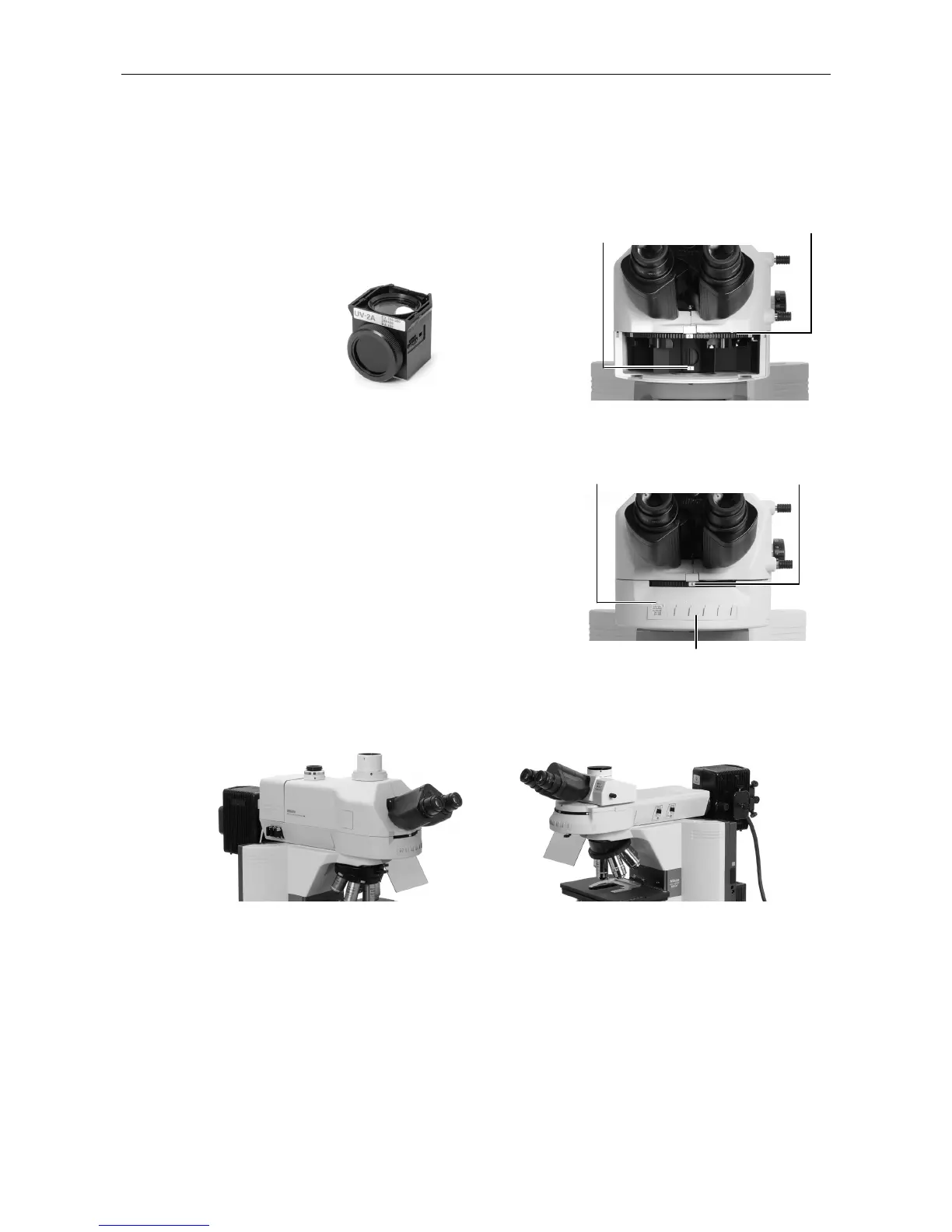

Installing Filter Cubes and a Light Shield (when the
Epi-illumination attachment or the DIH-M is installed)
(1) There is a front cover below the eyepiece. Pull
out the cover to remove.
(2) Insert a filter cube into position.
(3) Insert a nameplate into the position with the
same address as the one indicated on the filer
cube select knob on the right side of the
microscope.
(4) Turn the filter cube select knob and insert a
filter cube into the remaining open position.
(5) Replace the cover.
(6) Attach a light shield to the front bottom of the
fluorescent unit with screws.
Filter cube fittin
g
p
art
Excitation switching turret
Address
indication
Address
indication
Address
indication
Name
p
late
Filter cube
Light shield attached
(with DIH-M)
Light shield attached
(with Epi-illumination attachment)
