Chapter 4 Assembly
61
4
12

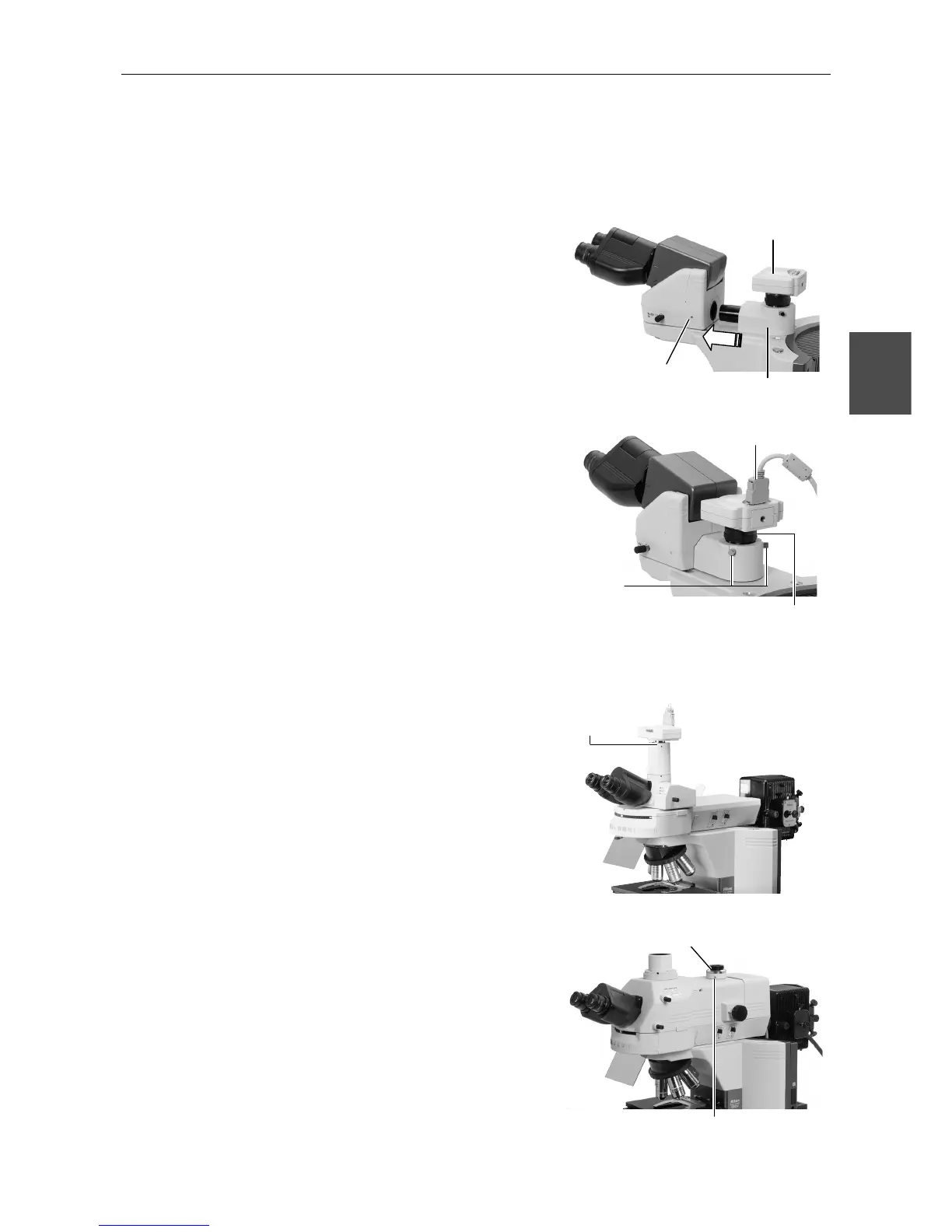

Installing a Camera (when using a camera)
12-1 When attaching to the ergonomic binocular tube:
(1) To attach a camera head, screw it into the C
mount on the DSC port.
(2) Remove the rear cover of the ergonomic
binocular tube and insert the DSC port.
(3) Secure the DSC port into place with screws.
(4) Attach the camera cable to the camera head.
(Adjust the fitted position before using the
camera. Refer to 2.4 operation procedure.)
12-2 When attaching to the trinocular eyepiece tube:
(1) Attach the camera head to the trinocular
eyepiece tube using the C-mount adapter.
(2) Attach the camera cable to the camera head.
(Adjust the fitted position before using the
camera.)
12-3 When attaching the DIH-M:
(1) Attach the camera head to the DIH-M using
the C-mount adapter that is near the rear
port.
(2) Attach the camera cable to the camera head.
(Adjust the fitting position before using the
camera.)
Camera cable
fitting part
Camera head
DSC
p
ort
Camera focus position
adjusting screws
Camera
centering screw
Securin
g
the DSC
p
ort
Fixin
g
the C-mount ada
p
ter
C-mount ada
p
ter
C-mount
ada
p
ter fixin
g
screw
