Chapter 4 Assembly
62
13
Installing the Power Cord
(1) Check to confirm that the microscope power
switch is off.
(2) Insert one end of the power cord into the AC
inlet at the back of the microscope.
(3) Insert the other end of the power cord into
the wall outlet.
Use only the specified power cord.
Refer to Chapter 8 for the power cord
specified.
14
Connecting the AC Adapter (when using the DIH-M)
(1) Confirm that the power switch of the C-BOX
(attached to the back of the microscope) is off
(the button projects out).
(2) Connect the AC adapter to the bottom port on
the front of the C-BOX.
(3) Connect the AC adapter to the wall outlet with
the power cord.
Use only the AC adapter and power cord
specified.
Refer to Chapter 8 for the specified AC
adapter and power cord.
Microscope assembly is now complete.

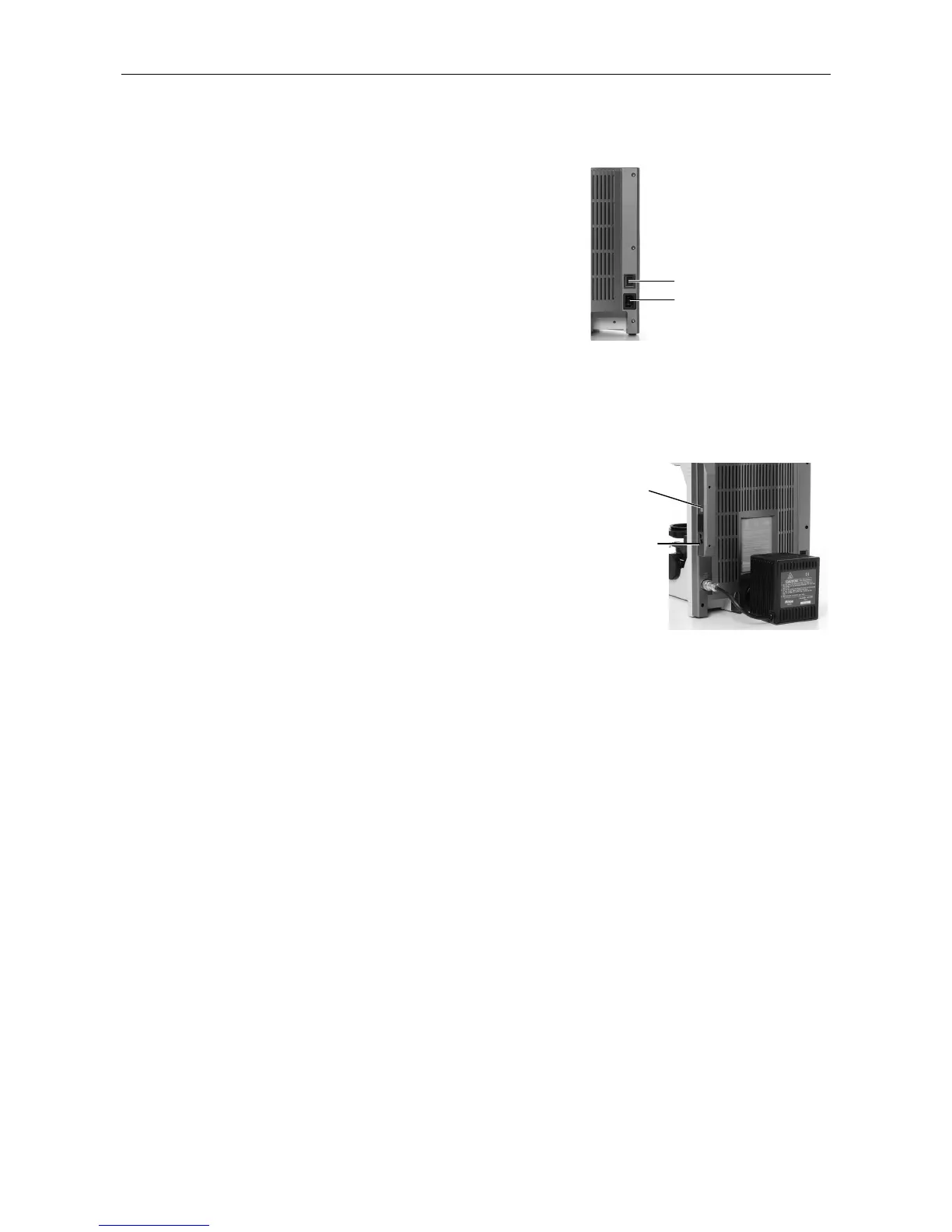

Power switch for the
microscope
AC inlet
C-BOX power
switch
Connect the
AC adapter
here.
