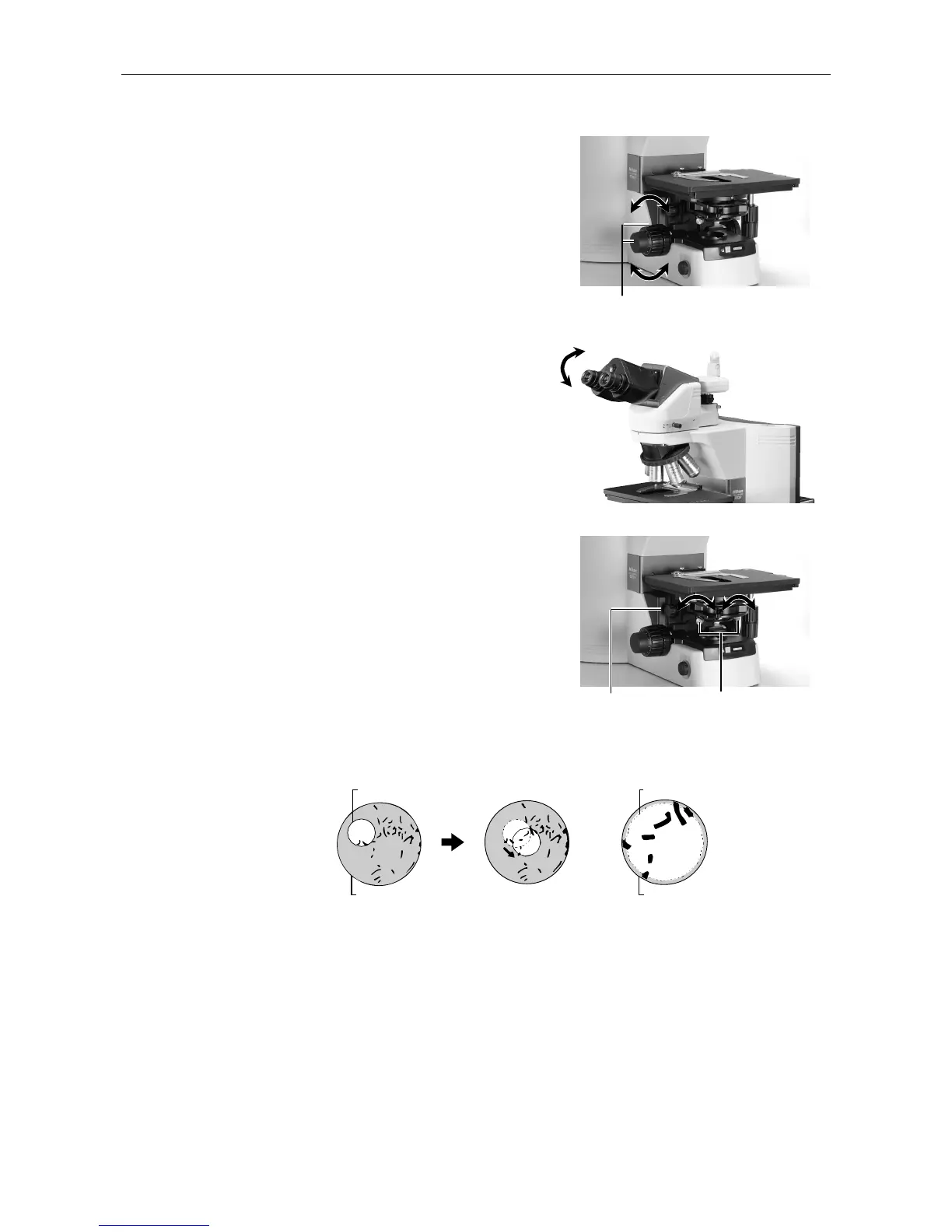

Focus on the specimen.
10
Adjust the diopter and the
interpupillary distance.
Refer to "8. Diopter Adjustment" and "9.
Interpupillary Distance Adjustment" in the separate
Reference manual.
11
Focus and center the condenser.
Refer to "11. Adjustment of Condenser Position" in
the separate Reference manual.
Focus on the specimen using
the coarse and fine focus knobs.
Center the condenser
using the condenser
centering screws.
Focus the condenser
using the condenser
focus knob.
Field dia
p
hra
g
m
E
y
e
p
iece field
of view
