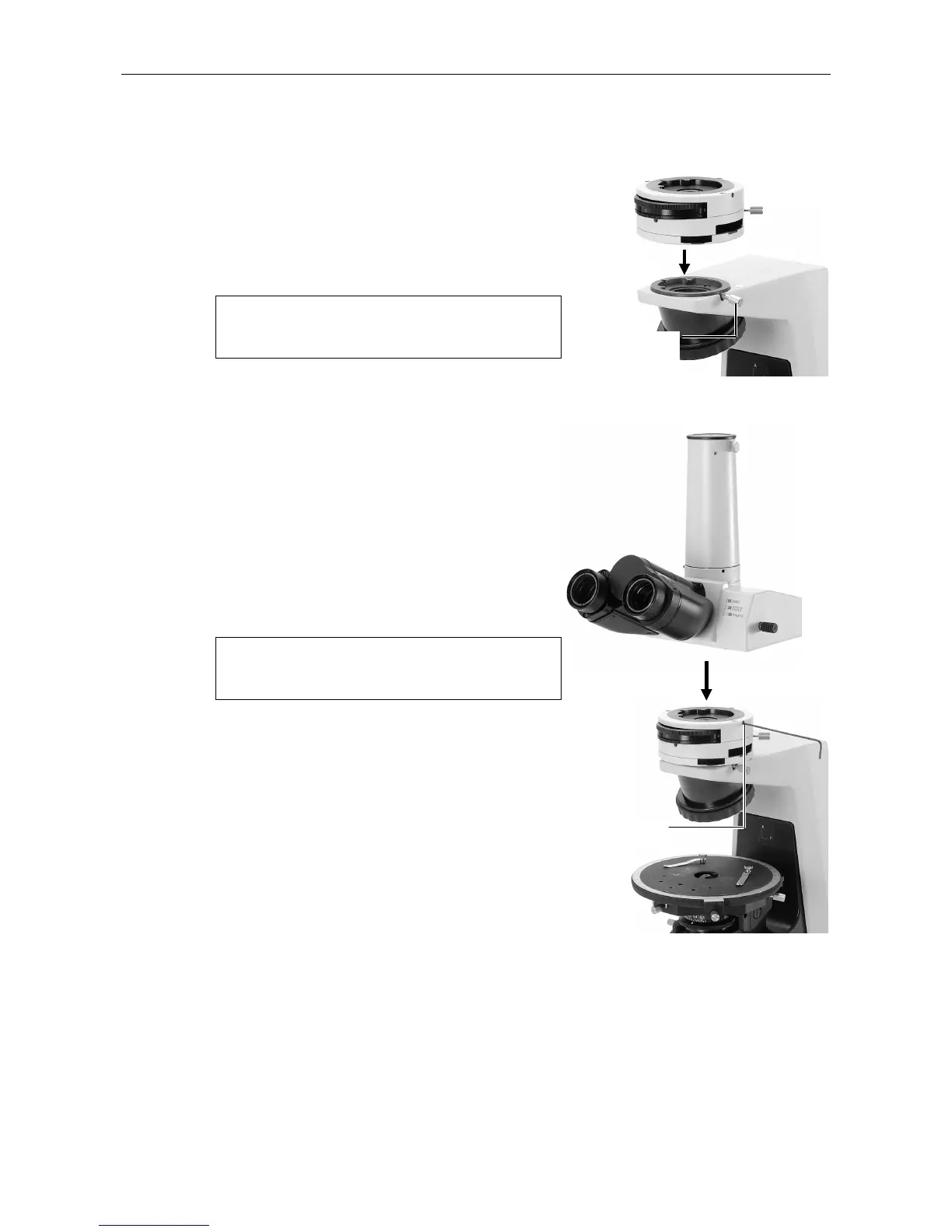

Attaching the Intermediate Tube
Fully loosen the eyepiece tube clamp screw on the
microscope arm.
Tilt the intermediate tube and fit it on the circular
mount of the microscope arm so that the
positioning pin on the intermediate tube matches
the positioning groove on the mount. Tighten the
eyepiece tube clamp screw to fix.
When tightening the clamp screw,
lightly press the intermediate tube
clockwise to remove the unsteadiness.
4
Attaching the Eyepiece Tube and
the Eyepieces
Eyepiece tube
Fully loosen the eyepiece tube clamp screw on the
intermediate tube using the hexagonal wrench.
Tilt the eyepiece tube and fit it on the circular
mount so that the positioning pin on the eyepiece
tube matches the positioning groove on the mount.
Tighten the eyepiece clamp screw to fix.
When tightening the clamp screw,
lightly press the eyepiece tube
clockwise to remove the unsteadiness.
E
y
e
p
iece tube
clamp screw
E
y
e
p
iece tube
clamp screw
