1 Introduction
4 Nikon N Series/K Series Total Station Instruction Manual

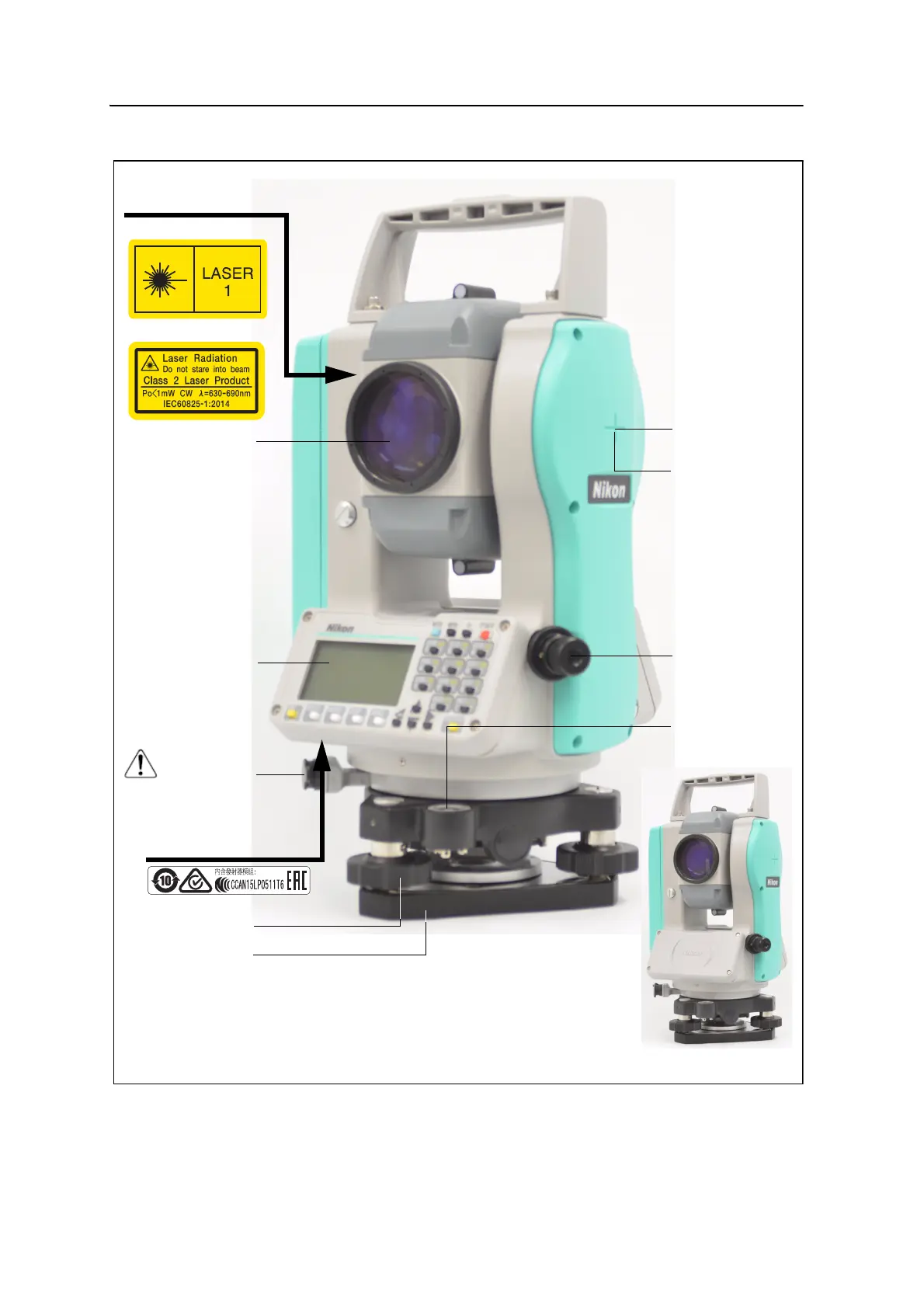

Figure 1.2
Trunnion axis
indication mark
Objective
The Laser Safety label
is attached here.
LASER LIGHT IS
EMITTED FROM
THIS PART.
Circular level
Optical plummet
.
Leveling screw
Tribrach
Data output /
Input connector
(For K 2” and K 5”)
(For N 2” and N 5”)
Face-2 display /
Keyboard
(for N 2"/K 2")
Nikon N 5"/K 5" --- Face-2
EAC label is attached here.
Nikon N 2"/K 2" --- Face-2
Tapping point
for NFC
