Nikon K 5 - Setting up the Prism Reflector

Nikon N Series/K Series Total Station Instruction Manual 19
Preparation 2
Setting Up the Prism Reflector

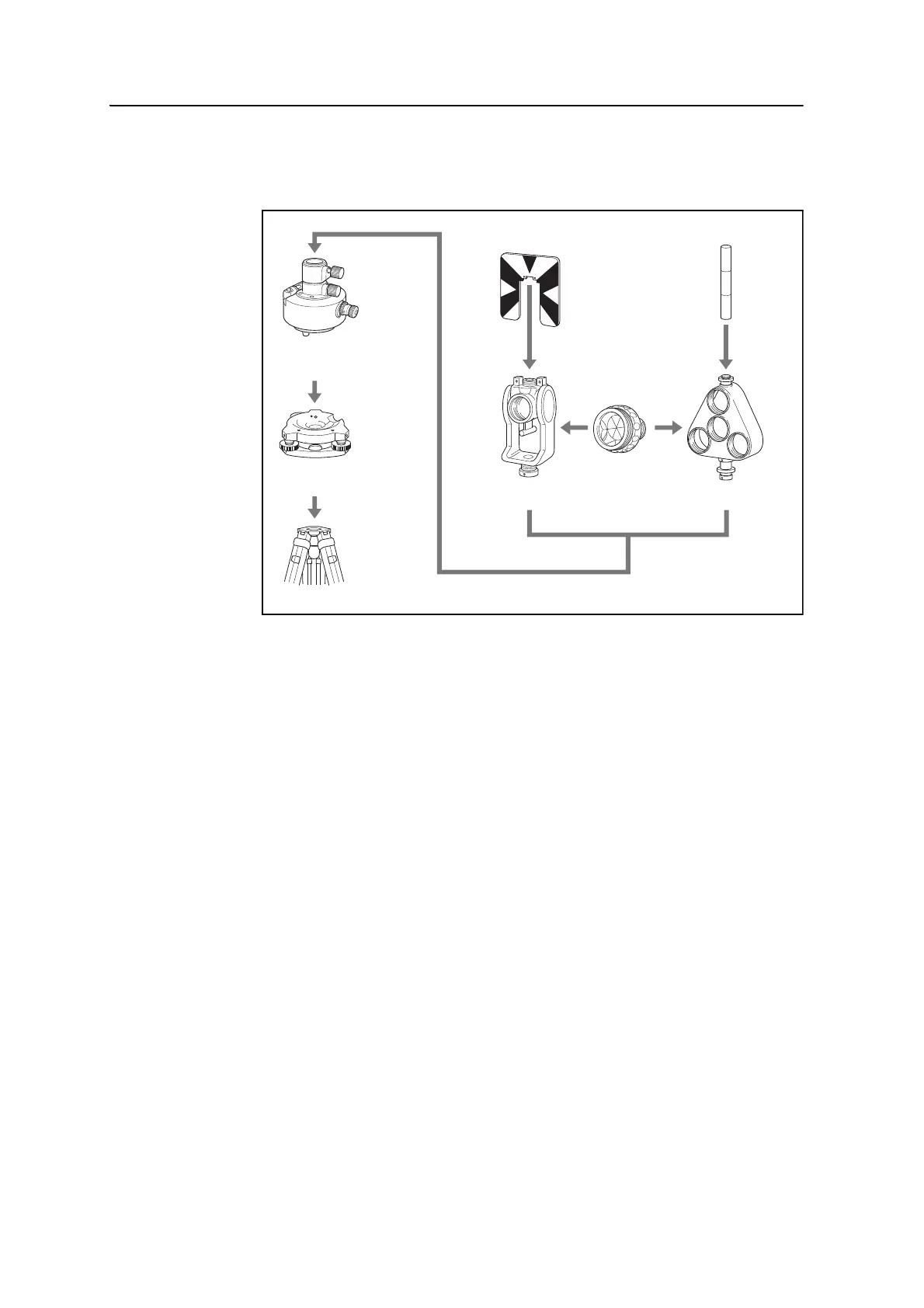

1. Assemble the prism reflector as shown below.
2. Adjust the height of the tribrach adaptor (see page 20).
3. If necessary, change the direction of the prism (see page 20).
4. Set the prism constant (see page 20).
5. If you are using a single prism holder, set the position of the target plate (see
page 21).
Detailed instructions for Step 2 through Step 5 are provided on the following pages.
Note – The instrument must be used with the Tribrach W30S or W30Sb.
Tribrach
Tripod
Target plate for single prism
Tiltable single
prism holder
Prism C
Target pole
Triple prism holder
W30S/W30Sb
Tribrach
adapter 15
