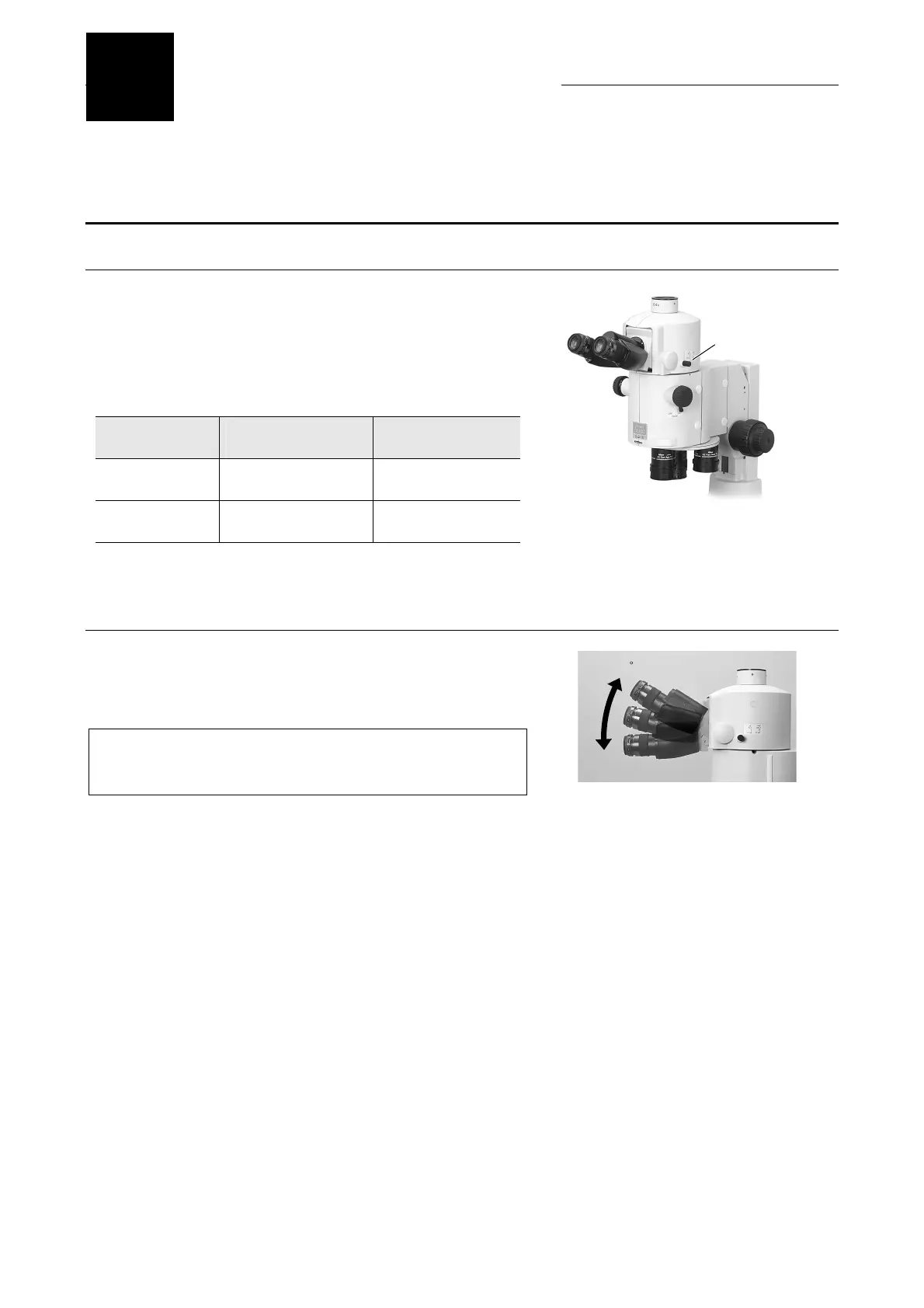

8
Operation Procedures
3
This chapter indicates the operation procedures of each component of the AZ100.
Operation of the Eyepiece Tube Part
Change of the Optical Path
When the AZ-TE80 Ergonomic Trinocular Tube 80 or the
AZ-TE100 Ergonomic Trinocular Tube 100 is used, the optical
path of the eyepiece tube can be changed with the optical path
selector lever.
The light distribution between the binocular part and vertical
tube can be changed by pushing or pulling the lever.
Optical path
selector lever
BINO
(push the lever)
(pull the lever)
AZ-TE80
Binocular part: 100%
Vertical tube: 0%
Binocular part: 20%
Vertical tube: 80%
AZ-TE100
Binocular part: 100%
Vertical tube: 0%
Binocular part: 0%
Vertical tube: 100%
Optical path
selector lever
Change of the optical path
Angle Adjustment of the Binocular Part Angle
The binocular part of the ergonomic eyepiece tube can be
elevated in the range from 0 (horizontal direction) to 30
degrees. Adjust the angle so that observation can be easily
performed.
For the angle adjustment of the binocular part, operate the
binocular part with holding it with both hands. At this time, be
careful not to pinch your hand or finger.
30
Horizontal direction
Adjustment of the binocular part angle
