Nikon R1 User Manual

18

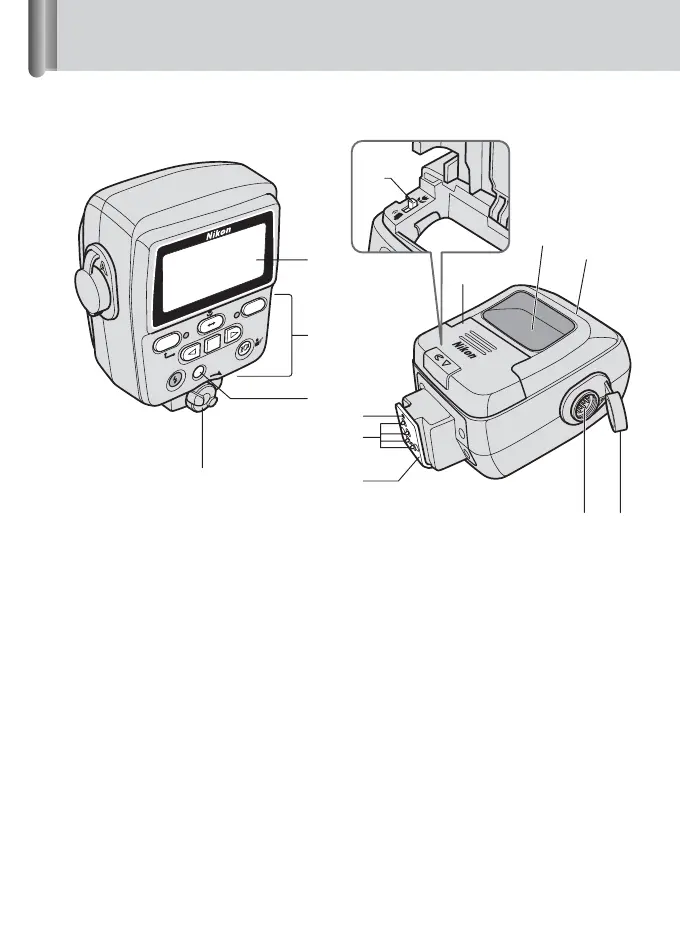

Speedlight parts, their functions, and accessories
 Wireless Speedlight Commander SU-800
1 LCD Panel (p. 20)
2 Control Buttons
3 Ready-light
Lights up when the Speedlight is fully recycled
and ready to fire.
4 Mounting Foot-lock Lever (p. 29)
5 Terminal Cover
6 TTL Cord Terminal
Connects the SU-800 with the SB-R200 when
used with cameras not compatible with CLS.
(p. 110)
7 Mounting Foot (p. 29)
8 Hot-shoe Contacts
9 Mount Pin
10 Battery Chamber lid (p. 28)
11 AF-assist Illuminator
12 Commander Transmit Window
13 Commander/Close-up Select
Switch
Toggles between the close-up and Commander
modes. (p. 58)
W
IR
E
L
E
S
S
S
P
E
E
D
L
IG
H
T
C
O
M
M
A
N
D
E
R
S
U
-8
0
0
ON/OFF
R
EAD
Y
LO
CK
MODE
S
E
L
A
B
NO
AF
-
ILL
WIRELESS SPEEDLIGHT COMMANDER SU-800
2
3
1
4
56
7
8
9
10
11
12
13

Nikon R1 Specifications

General

Compatibility	2x SB-R200, AS-20, SJ-2, SW-C1, SW-11, SW-12, SU-800.
Product color	Black
Approx. number of flashes	2
