nilan CTS602 HMI Software Instructions

Main screen
Y

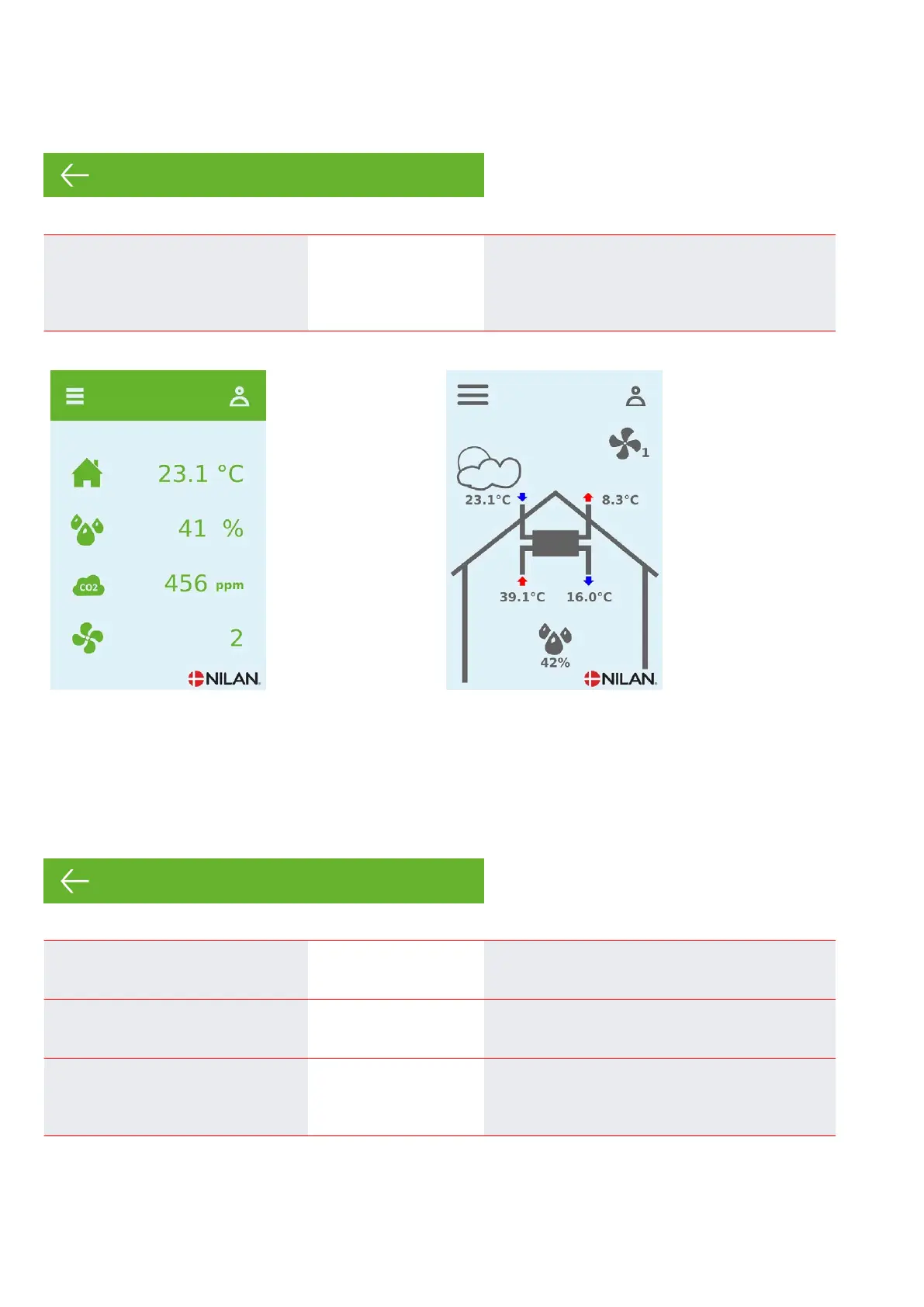

ou can choose from 2 different images for the main screen.
Service / Main screen
↳
Main screen Settings:
Standard setting:
Description:
Normal / House
House
If you select "Normal", data will be displayed on a list,
but the settings options available on the main screen
are the same.
Panel settings
I
t is possible to adjust the back-light and to calibrate the display on the panel.
Service / Screen set.
↳
Backlight (active) Settings:
Standard setting:
Description:
3 ↔ 100 %
90 %
You can set the backlight in active function.
↳ Backlight (off) Settings:
Standard setting:
Description:
0 ↔ 100 %
5 %
You can set the backlight in "not" active function.
↳ Calibrate (off) Settings:
Standard setting:
Description:
Off / On
Off
If you select "On", it is possible to calibrate the screen
by pressing the point as it gradually moves.
