Software
Functions on control panel

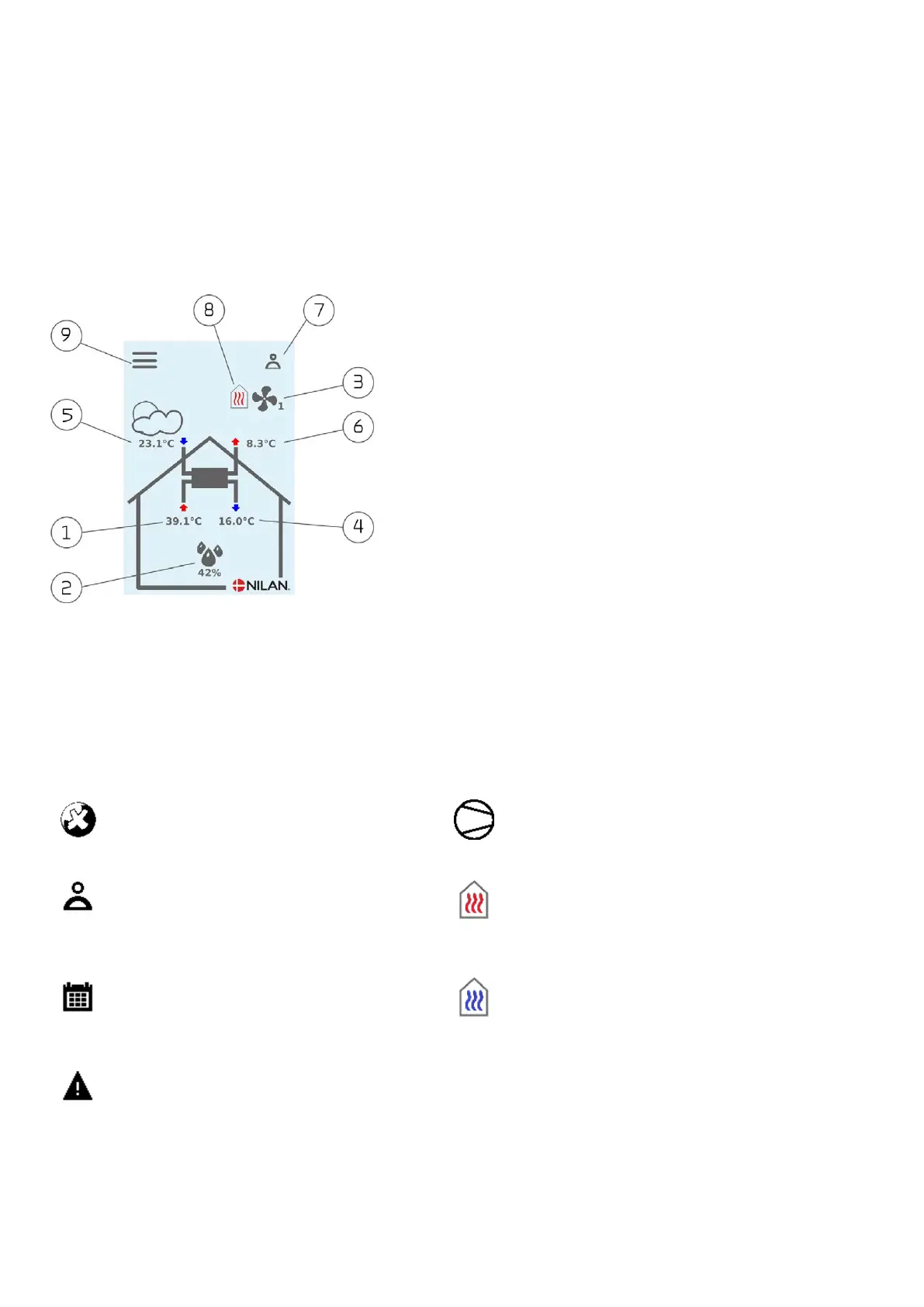

Main screen elements
T
he main screen of the HMI panel contains the settings options and the information that an operator
mostly uses.
1. Shows the current room temperature in the
h
ouse, measured via the extract air.
2. Shows the current air humidity. If a CO2 meter
has been installed, it will be shown next to air
humidity.
3. Shows the current fan speed level.
4. Shows the current supply air temperature
5. Shows the current outdoor temperature
measured via the outdoor air intake
6. Shows the current discharge air temperature
7. Shows the menu icons listed below
8. Shows the mode icons listed below
9. Access to the settings menu which contains
more settings options
Menu icons
Mode icons
Stop icon
I
ndicates that the unit has stopped
Compressor icon
I
ndicates that the compressor is active
User selection icon
I
ndicates that the user selection function
is active
Heating icon
I
ndicates that the unit is heating up the
supply air via the compressor or the
after-heating element
Week program icon
I
ndicates that the week program function
is active
Cooling icon
I
ndicates that the unit is cooling the
supply air via the compressor or the
bypass
Alarm icon
I
s displayed during alarms or warnings
4
