USER MANUAL ENGLISH
1464809000 - SW4000 29
NOTE
7RSUHYHQWZDWHUIURPÀRZLQJRXWZKHQFOHDQLQJWKH
¿OWHUWXUQRQWKHGXVWJXDUGV\VWHPDQGHPSW\WKH
system tank (24).
1. Drive the machine on a level ground.
2. Turn the ignition key (61) to “0” and engage the parking
brake.
3. )URPXQGHUWKHPDFKLQH$)LJUHDFKWKHZDWHU¿OWHU
assembly (B) of the dust guard system.
4. Unscrew and remove the transparent cover (C) with the
JDVNHW'WKHQUHPRYHWKH¿OWHUVWUDLQHU(
5. Clean and install them on the holder (F).
NOTE
,QVWDOOWKHJDVNHW&DQGWKH¿OWHUVWUDLQHU(LQ
WKHKRXVLQJVRIWKHFRYHUDQGRIWKH¿OWHUDVVHPEO\
holder.
A
B
D
E
C
F
P100651

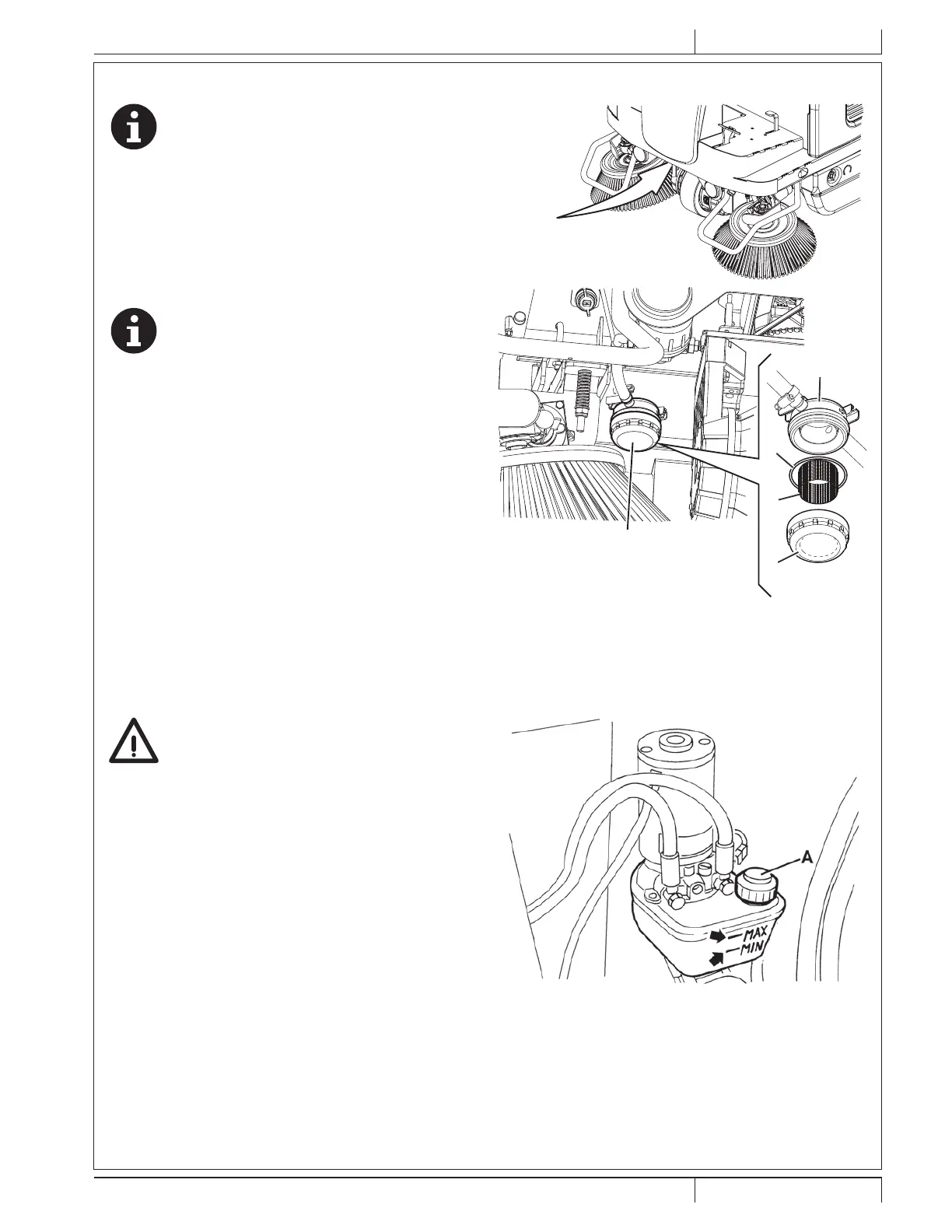

Figure 20
HOPPER HYDRAULIC LIFTING SYSTEM OIL LEVEL CHECK
DUSTGUARD™ SYSTEM WATER FILTER CLEANING (OPTIONAL)
WARNING!
Procedure to be performed with the hopper (11)
fully retracted.
1. Turn the ignition key (61) to “0” and engage the parking
brake.
2. Open the battery compartment hood (18) with the handle
(41) and fasten it with the support rod (52).
3. Check that the oil level in the tank (51) is between the
PLQLPXP0,1DQGPD[LPXP0$;PDUNVVKRZQLQ
¿JXUH
4. If necessary, add oil through the plug (A, Fig. 21), using the
RLOVSHFL¿HGLQ7HFKQLFDO'DWDSDUDJUDSK
5. Remove the support rod (52) and close the hood (18).
P100607
Figure 21
