WARNING!
It is advisable to wear protective gloves when
replacing the side broom because there can be
sharp debris between the bristles.
1. Drive the machine on a level ground and engage the
parking brake.
2. Turn the ignition key (61) to “0”.
3. Lift the side broom with the lever (64).
4. Remove the pin clip (A, Fig. 12), then remove the pin.
5. 5HPRYHWKHEURRP%DQGUHFRYHUWKHSURWHFWLRQÀDQJH
(C).
6. Install on the hub (D) the new side broom with the
SURWHFWLRQÀDQJH
7. Insert the fastening pin and engage its safety clip.
8. Check and adjust the side broom height as shown in the
previous paragraph.
A
B
C
D
P100599

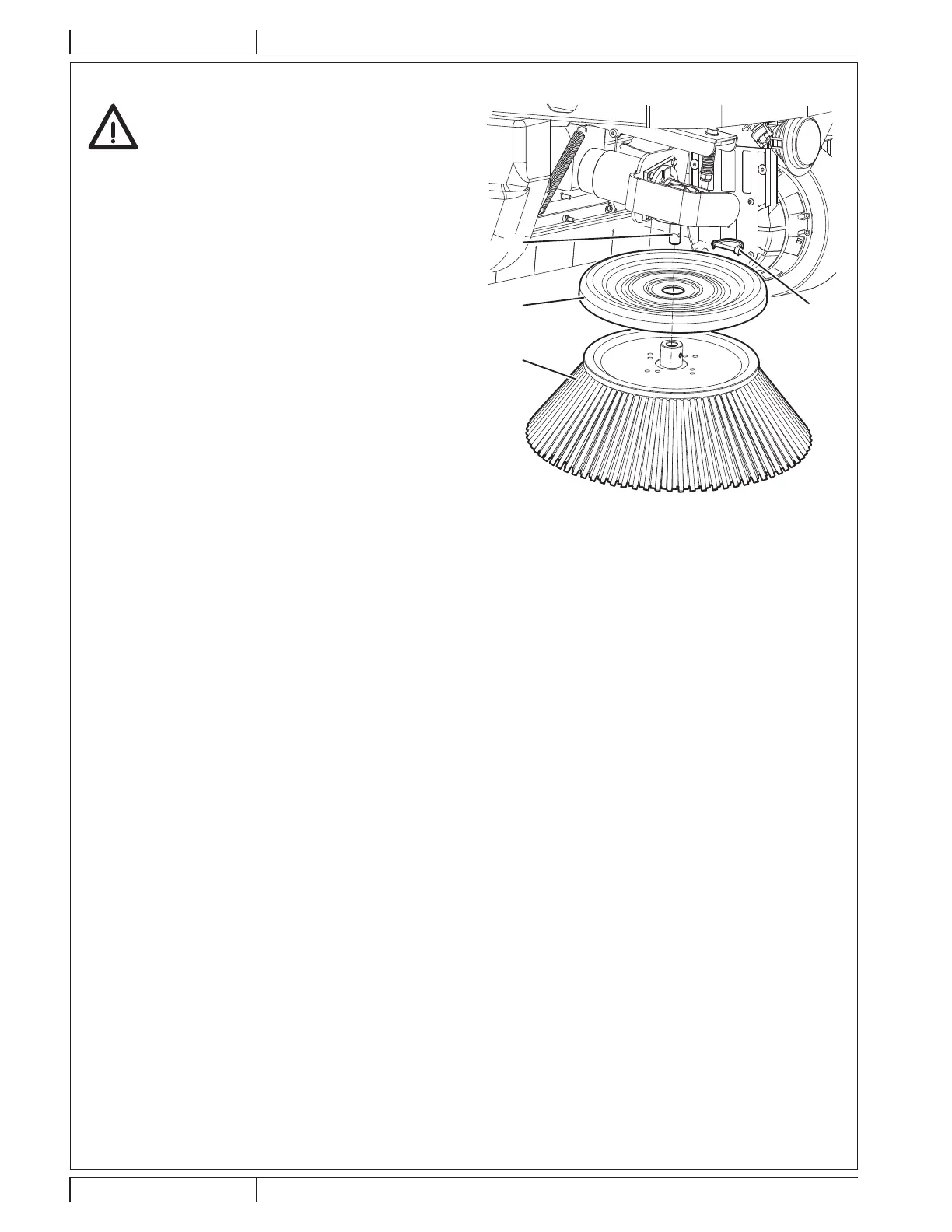

Figure 12
SIDE BROOM REPLACEMENT
