USER MANUAL ENGLISH
1464809000 - SW4000 7
14
16
5
24
25
1
19
28
3
9
30
18
20
6
7
8
13
10
22
23
11
20
17
12
27
21
26
15
4
29
2
5
31
32
33
31
P100588

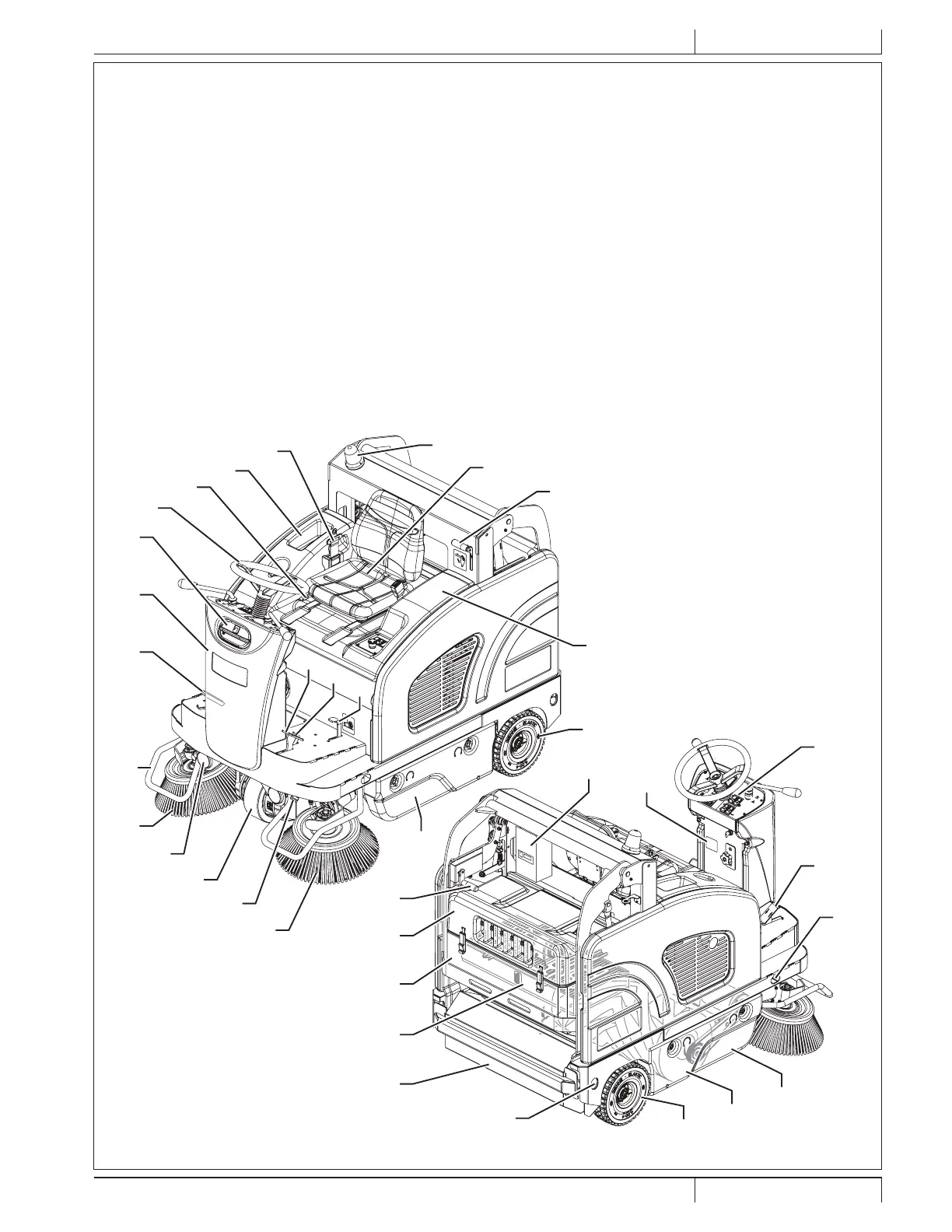

MACHINE DESCRIPTION
MACHINE STRUCTURE
1. Steering wheel
2. Control panel (see the following paragraph)
3. Driver’s seat with safety microswitch
4. Seat position adjusting lever
5. Drive pedal
6. Service brake pedal
7. Parking brake lever: press both the service brake (6) and
the lever (7) to switch from the service brake to the parking
brake
8. Front skirt lifting pedal
9. Hopper release and discharge lever
10. Rear hood with vacuum system
11. Hopper (empty it when it is full)
12. Right door (to be opened for performing maintenance
procedures only)
13. Left door (for main broom removal)
14. Right side broom
15. Left side broom (optional)
16. Side broom guards (optional)
17. Main broom
18. Battery compartment hood
19. Can holder
20. Rear wheels
21. Front driving and steering wheel
22. 'XVW¿OWHUFRQWDLQHU
23. 3DQHO¿OWHUZLWK¿OWHUVKDNHU
24. Front column / Dust guard system water tank (optional)
25. 'XVWJXDUGV\VWHPZDWHU¿OOHUQHFNSOXJRSWLRQDO
26. Dust guard system nozzles (optional)
27. Working lights (optional)
28. Flashing light (always on when the ignition key is turned to “I”)
29. Safety belt (optional)
30. 6HULDOQXPEHUSODWHWHFKQLFDOGDWDFRQIRUPLW\FHUWL¿FDWLRQ
31. Anchoring slots for transport (not for lifting)
32. Electronic battery charger (optional)
33. Hopper manual returning handle
