ENGLISH USER MANUAL
24 SW4000 - 1464809000
MAIN BROOM REPLACEMENT
WARNING!
It is advisable to wear protective gloves when
replacing the main broom because there can be
sharp debris between the bristles.
1. Drive the machine on a level ground and engage the
parking brake.
2. Turn the ignition key (61) to “0” and remove it.
3. Remove the left door (13) by turning the fasteners.
4. Unscrew and remove the knob (A, Fig. 8).
5. Turn the levers (B).
6. Remove the broom compartment latch (C) by grabbing it
from its fold (D).
7. Remove the main broom (E, Fig. 9).
8. Check that the drive hub (F) is free from dirt or foreign
materials (cords, rags, etc.) accidentally rolled up.
9. The new main broom must be installed with the bristles
URZVEHQWDVVKRZQLQWKH¿JXUH*
10. ,QVWDOOWKHQHZEURRPDQGHQVXUHWKDWWKHKH[DJRQDOPHVK
+¿WVLQWRWKHUHOHYDQWGULYHKXE)
11. Install the broom compartment latch (C, Fig. 8) by turning
the levers (B) and screwing down the knob (A).
12. Close the left door (13) by turning the fasteners.
13. Check and adjust the main broom height as shown in the
previous paragraph.
A
B
B
D
C
P100595

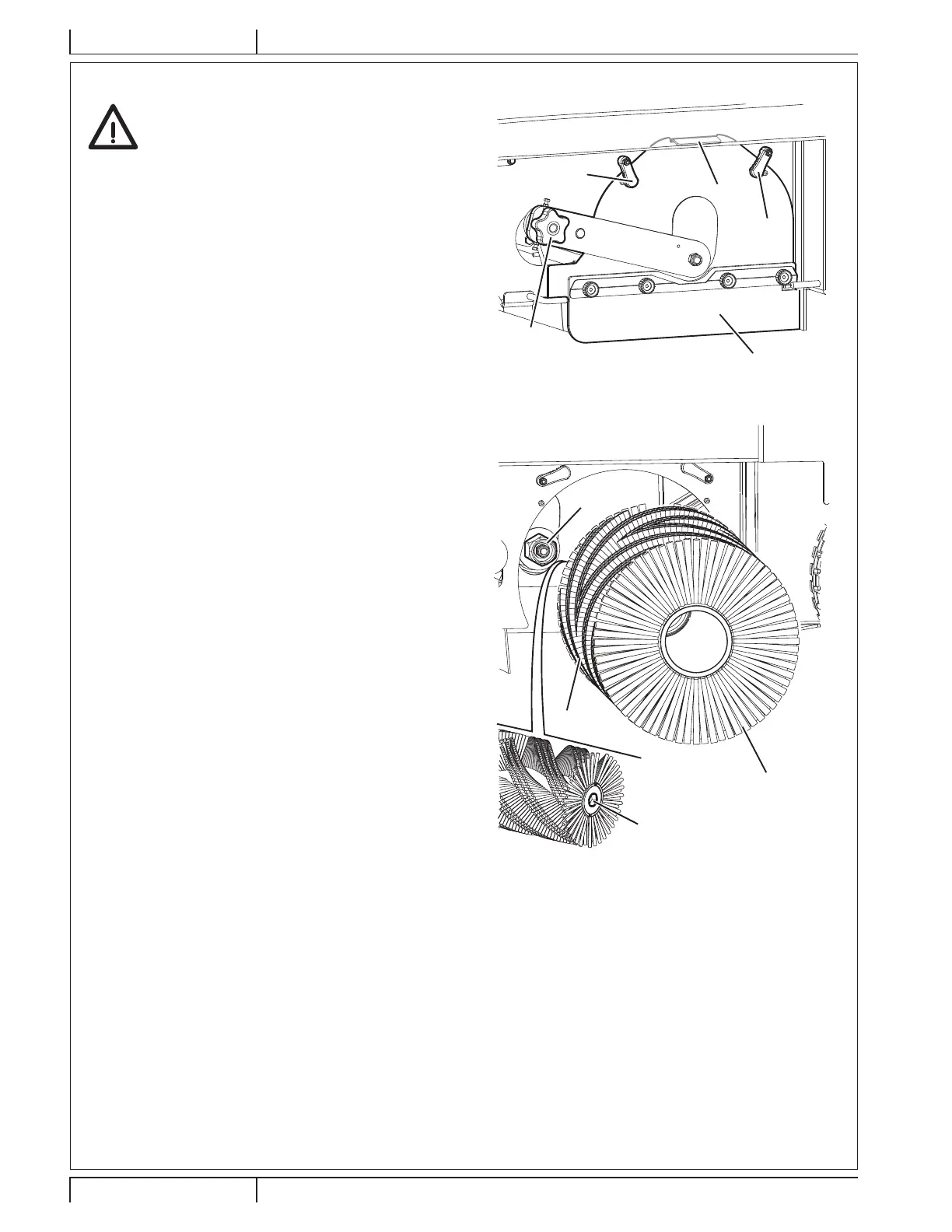

Figure 8
F
G
E
H
P100596
Figure 9
