ENGLISH USER MANUAL
28 SW4000 - 1464809000
Preliminary Operations
1. Empty the hopper (as shown in Use chapter), because the
weight of the waste inside the hopper can affect the skirt
height check.
2. Drive the machine on a level ground that is suitable for
checking the skirt height.
3. Turn the ignition key (61) to “0” and engage the parking
brake.

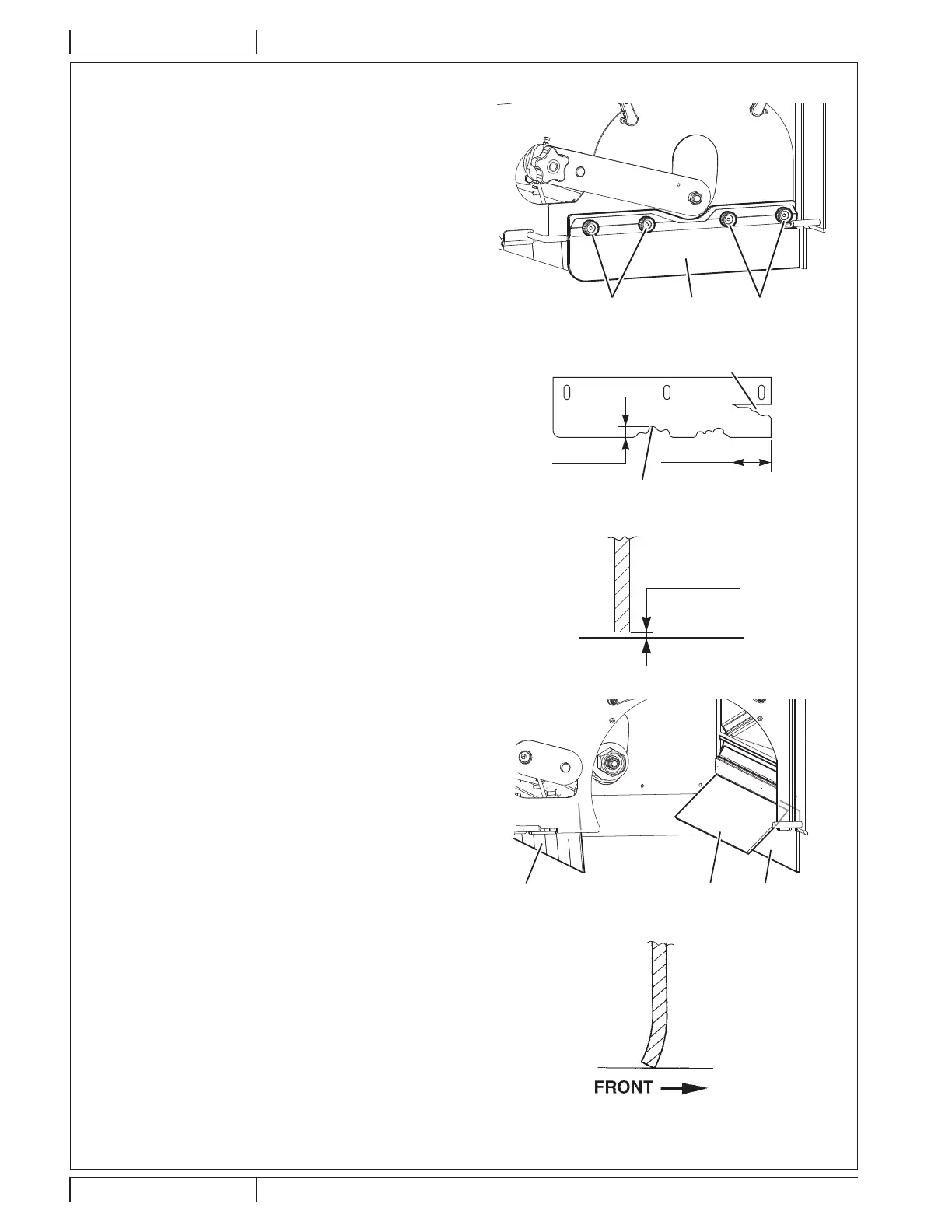

Side Skirt Check
4. Remove the left and right doors (13 and 12) by turning the
fasteners.
5. Check the side skirts (A, Fig. 15) for integrity.
Replace the skirts when they have cuts (C, Fig. 16) larger
than 20 mm or cracks/tears (D) larger than 10 mm (for skirt
replacement, refer to the Service Manual).
6. &KHFNWKDWWKHGLVWDQFHIURPWKHÀRRURIWKHVLGHVNLUWV$
Fig. 15) is within 0 - 3 mm (Fig. 17).
If necessary, loosen the knobs (B, Fig. 15) and adjust the
skirt position. Then tighten the knobs (B).
Front and Rear Skirt Check
7. Remove the main broom as shown in the relevant
paragraph.
8. Check the front skirt (E, Fig. 18) and rear skirts (F) and (G)
for integrity.
Replace the skirts when they have cuts (C, Fig. 16) larger
than 20 mm or cracks/tears (D) larger than 10 mm.
9. Check that the front (E, Fig. 18) and rear skirt (G) slightly
rub ground without being detached from it (Fig. 19).
10. For the skirt replacement, see the Service Manual.
Reassembly
11. Assemble the components in the reverse order of
disassembly.
AB B
P100602
Figure 15
> 20 mm
(> 0,8 in)
> 10 mm
(> 0,4 in)
C
D
P100603
Figure 16
0÷3 mm
(0÷0,12 in)
P100604
Figure 17
E F G
P100605
Figure 18
P100606
Figure 19
SKIRT HEIGHT AND OPERATION CHECK
