20
ATTIX 30-50 H/M

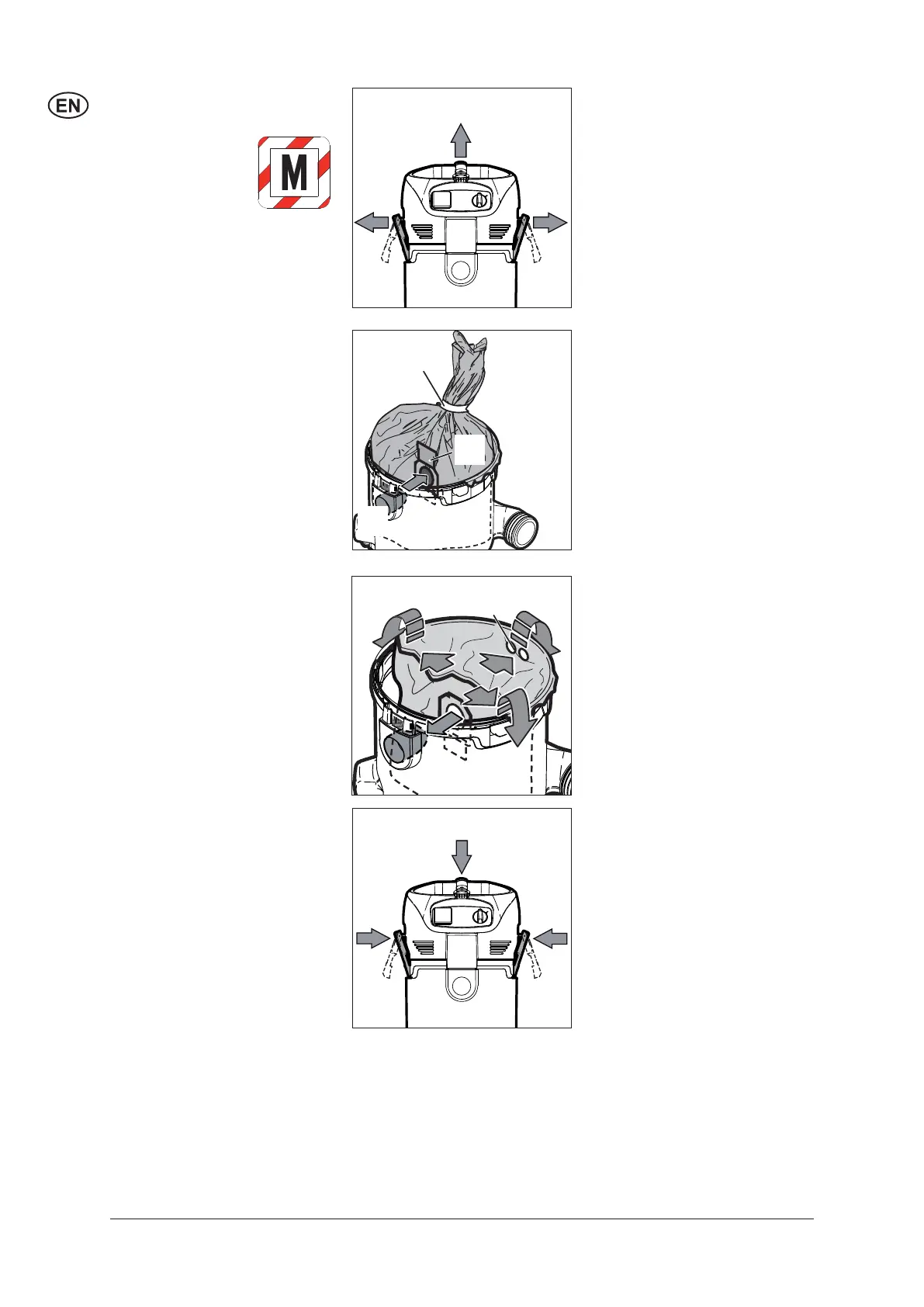

7.2.4 Replacing the disposal
bag
Switch off the vacuum 1.
cleaner and pull the mains
plug out of the socket.
Open the retaining clamps 2.
(A) and remove the up-
per section of the vacuum
cleaner.
Removing the disposal bag:
Close the disposal bag with 3.
string (B).
Carefully remove the filter 4.
bag connection from the in-
let fitting (C).
Close the disposal bag con-5.
nection (D) with the slider.
Dispose of the disposal bag 6.
in accordance with legal
regulations.
Inserting the disposal bag:
Clean the dirt tank.7.
Insert the disposal bag into 8.
the dirt tank.
Check that the ventilation 9.
holes (E) remain inside the
dirt tank.
Press the bush of the new 10.
filter bag firmly on to the in-
let fitting.
Fold the top edge of the 11.
disposal bag over the rim of
the dirt tank.
Attach the upper section of 12.
the vacuum cleaner.
Close the retaining clamps 13.
(A). Ensure that the retain-
ing clamps fit properly.
A
A
E
B
C
D
A
A
