Motor Disassembly/Assembly (Continues)

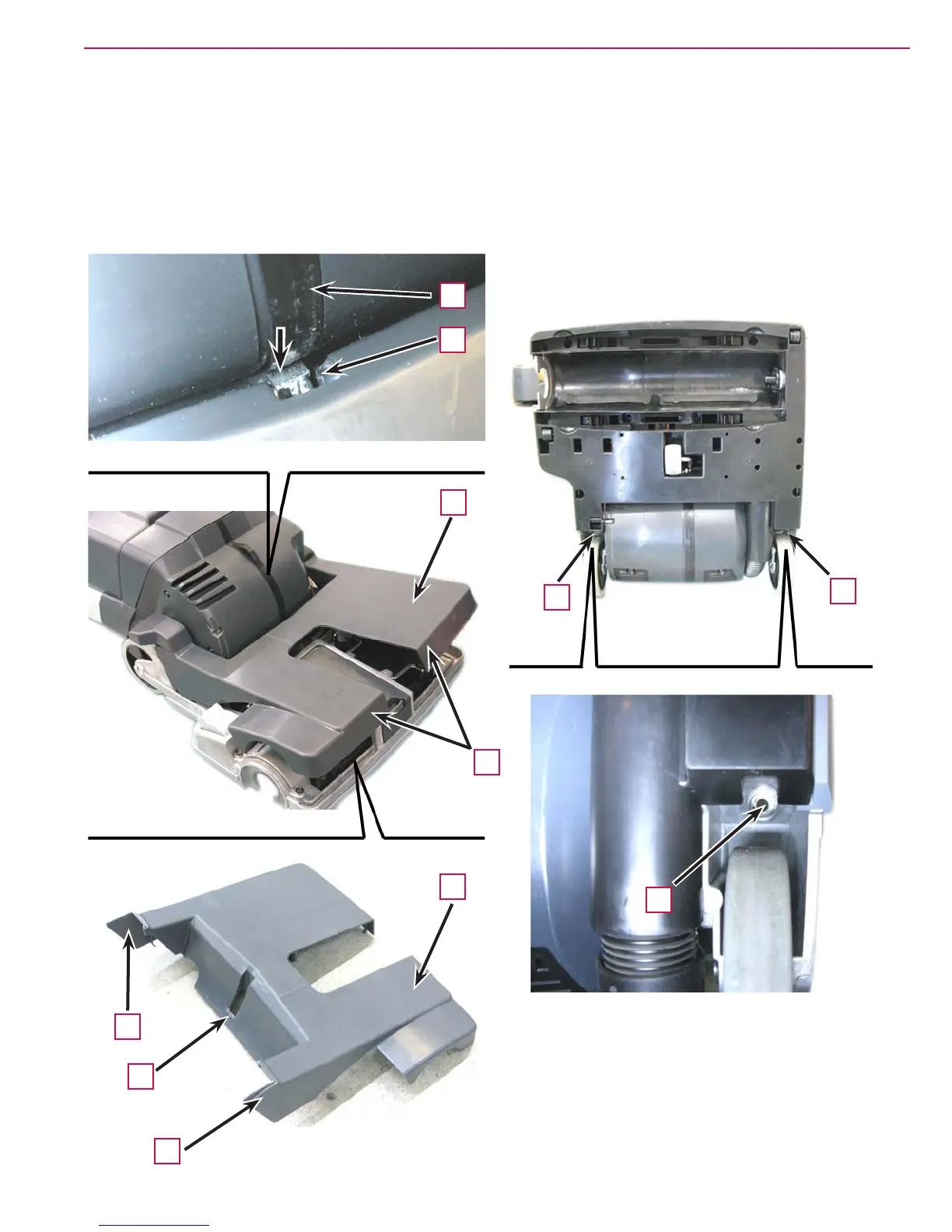

11. With a screwdriver slightly separate the trigger lever (G) from the track (H), then lift the front side (I) of
the cover (J).
12. Remove the cover (J) by disengaging its fasteners (K) from the machine.
13. On the lower side of the deck, remove the screws (L).
14. Turn the machine to its original position.
H
G
J
L
L
J
K
K
K
L
I
