Electrical System 15Service Manual – SC100 - Scrubtec 130
Motor Disassembly/Assembly (Continues)

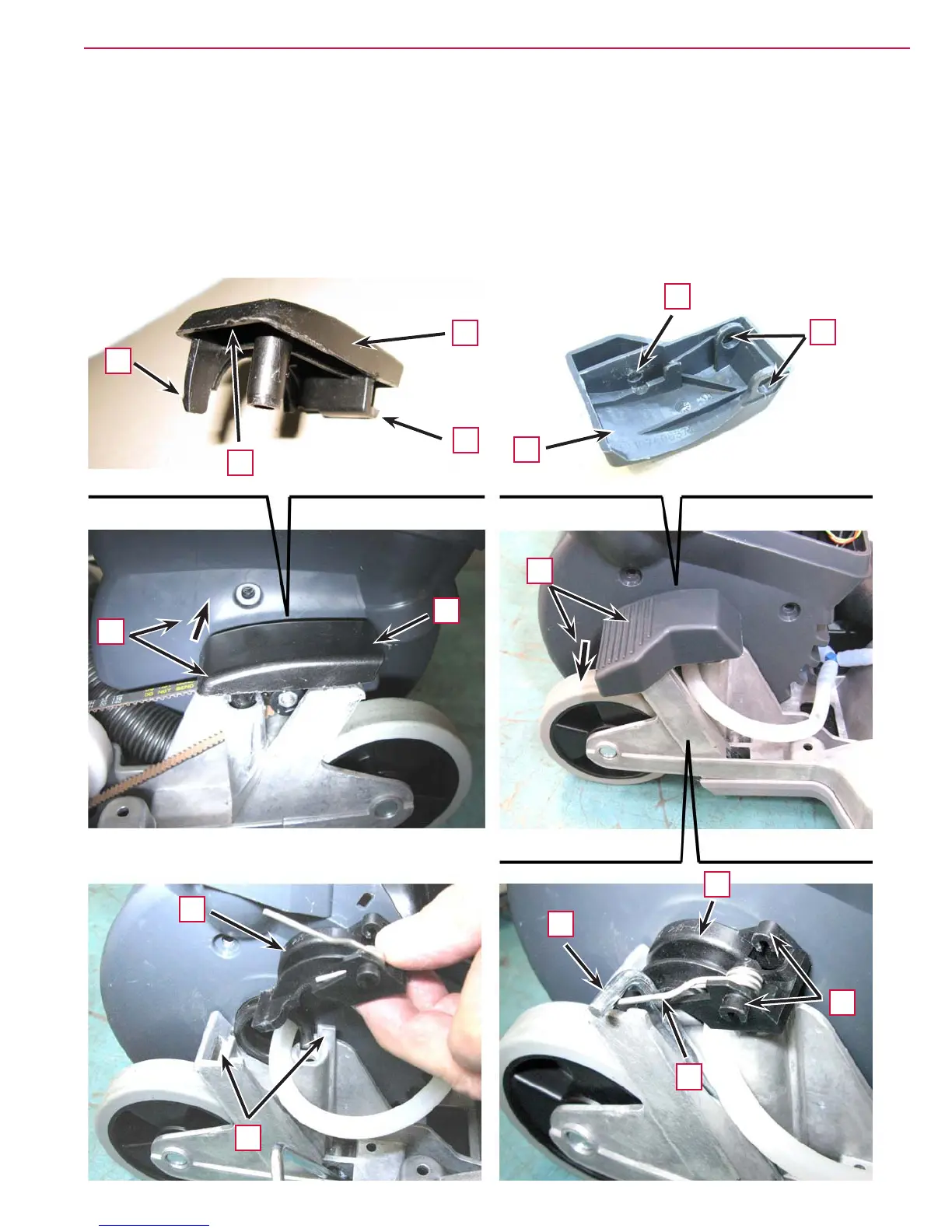

15. On the left side of the machine, lift the half clamp (M) from the front side (N) and disengage the inner
fastener (P), then remove it by disengaging the rear fastener (Q).
16. On the right side of the machine, remove the pedal (R) by moving it in the direction shown by the arrow,
by disengaging its housing (S) from the pin (T) and its housings (U) from the pins (V) of the pedal
mechanism (W).
17. Remove the pedal mechanism (W) by disengaging its spring (X) from the pin (T) and its housings from
the fastener (Y) on the deck.
P
N
M
Q
S
U
R
R
T
V
W
M
N
W
Y
X
To Next Page
