Motor Disassembly/Assembly (Continues)

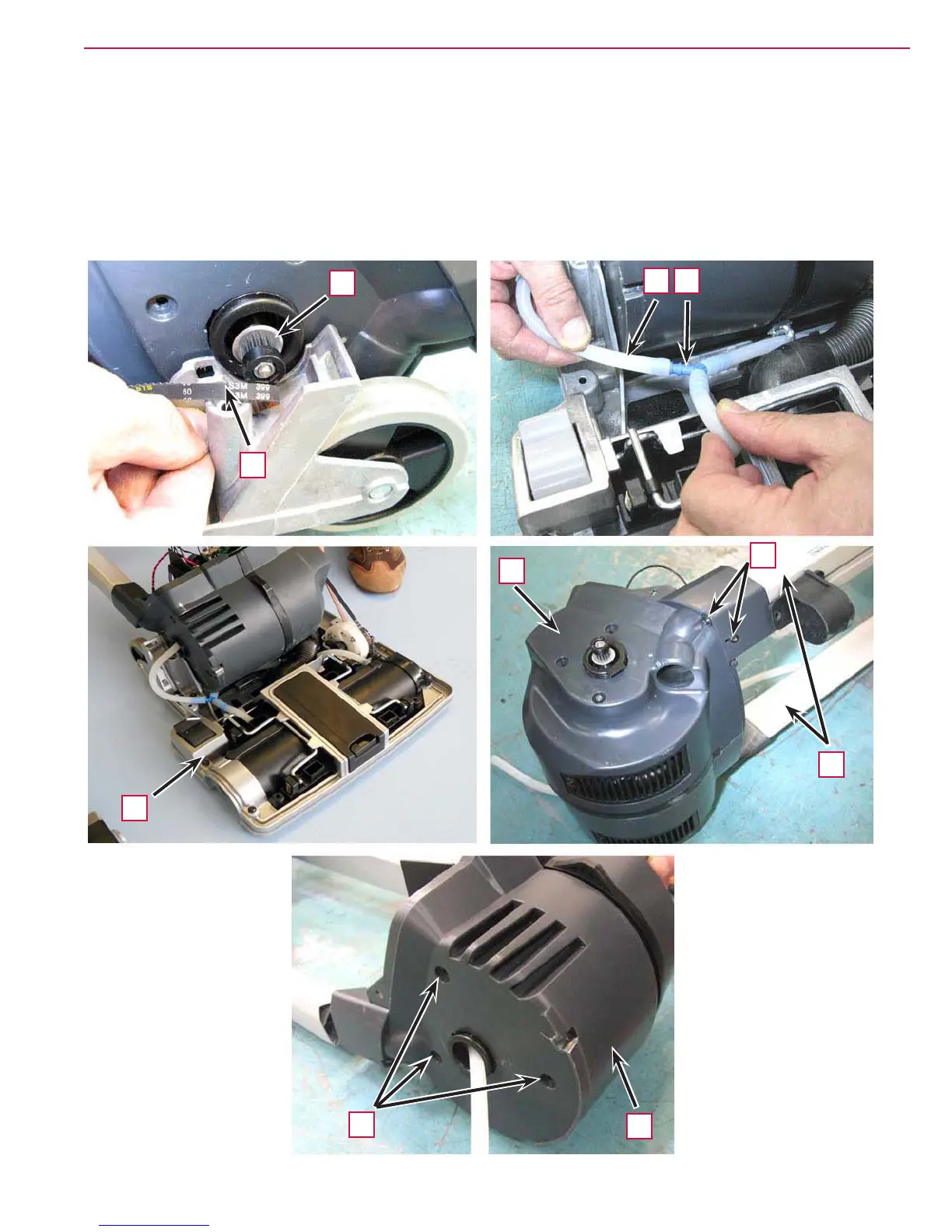

18. Disconnect the belt (Z) from the motor ring gear
(AA).
19. Disconnect the solution hose (AB) from the
tting (AC).
20. Release and remove the nozzlehead (AD).
21. On both sides of the machine, remove the screws
(AE), then remove the columns (AF) from the
motor assembly (AG).
22. On the right side of the motor assembly, remove
the screws (AH) and move the case (AI).
Z
AI
AH
AF
AG
AA
AB AC
AD
AE
