Electrical System 18Service Manual – SC100 - Scrubtec 130
Motor Disassembly/Assembly (Continues)

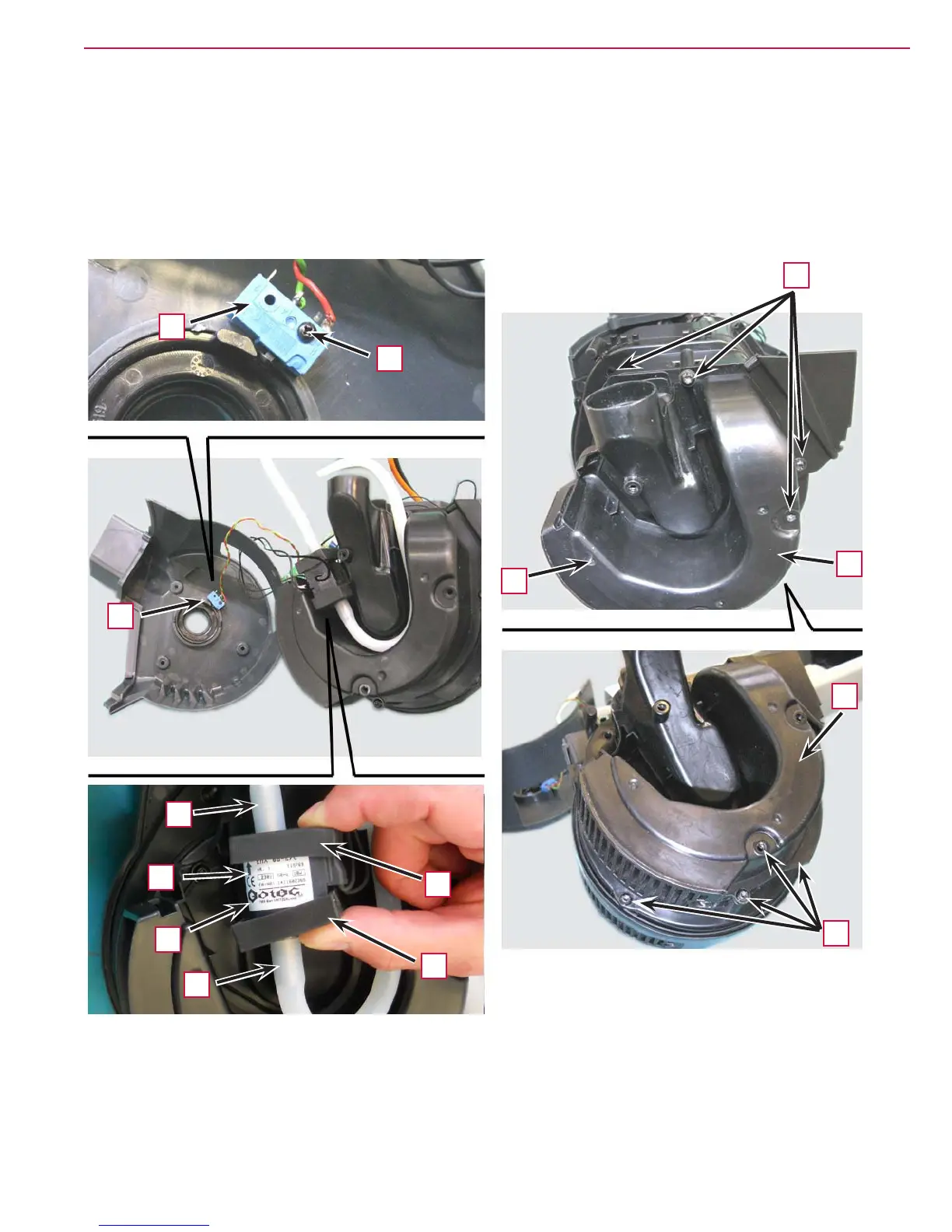

23. If necessary, loosen the fastening screw (AM) and remove the parking position microswitch (AL) with
the wiring harness.
24. If necessary, disconnect the hose (AP) and the hose (AQ) then remove the dosing pump (AN). Retrieve
the gaskets (AR). When reassembling turn the dosing pump (AN) in the direction shown by the arrow
(AS).
25. Remove the screws (AT) and remove the case (AU).
AM
AL
AL
AT
AU
AU
AQ
AN
AS
AP
AR
AR
AT
AT
