Electrical System 19Service Manual – SC100 - Scrubtec 130
Motor Disassembly/Assembly (Continues)

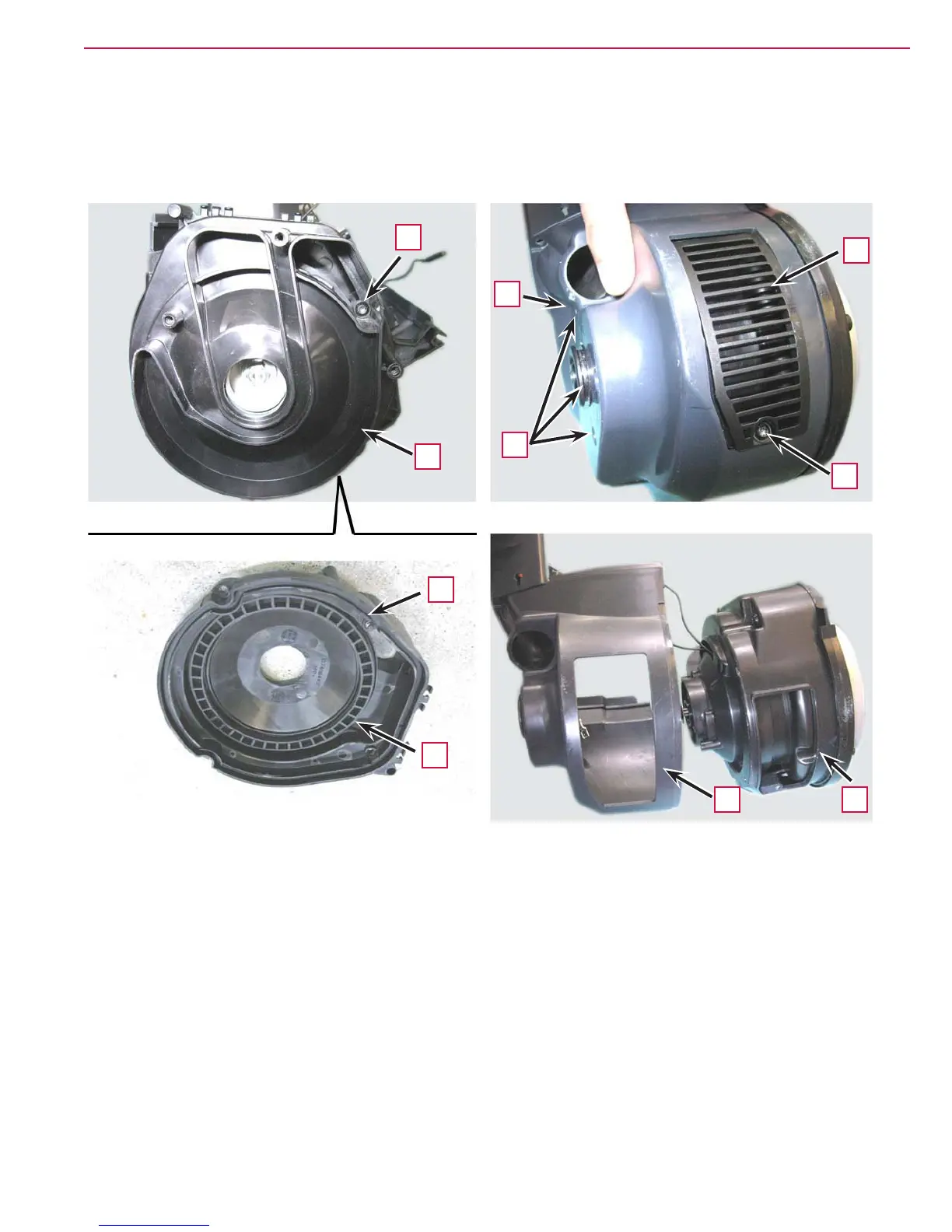

26. Remove the screw (AV) and remove the case (AW). Retrieve the inner gasket (AX).
27. Remove the fastening screws (AY) of the case (AZ). Remove the screw (BA) and remove the grille (BB).
28. Remove the motor assembly (BC) and the case (AZ).
AV
AW
AW
BA
BB
AX
AZ BC
AZ
AY
