Motor Disassembly/Assembly (Continues)
Assembly
29. Assemble the components in the reverse order of disassembly, and note the following:

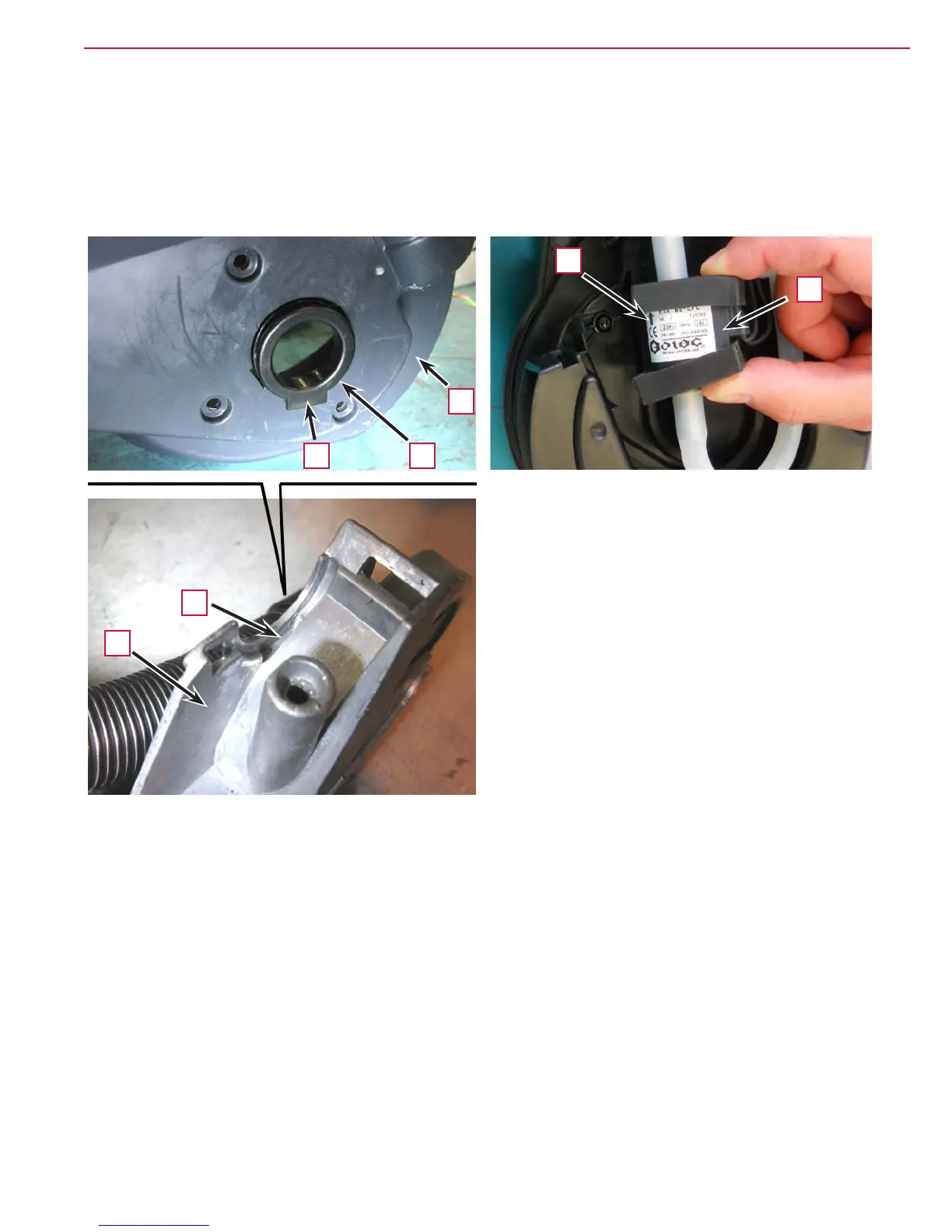

◦ When reinstalling the motor assembly (BD) on the machine deck (BE), place both side bushings (BF)
by engaging their notches (BG) in the relevant housings (BH).
◦ When reassembling turn the dosing pump (AN) in the direction shown by the arrow (AS).
BD
BG
BH
BE
AS
AN
BF
