Cylindrical Brush System 39Service Manual – SC100 - Scrubtec 130

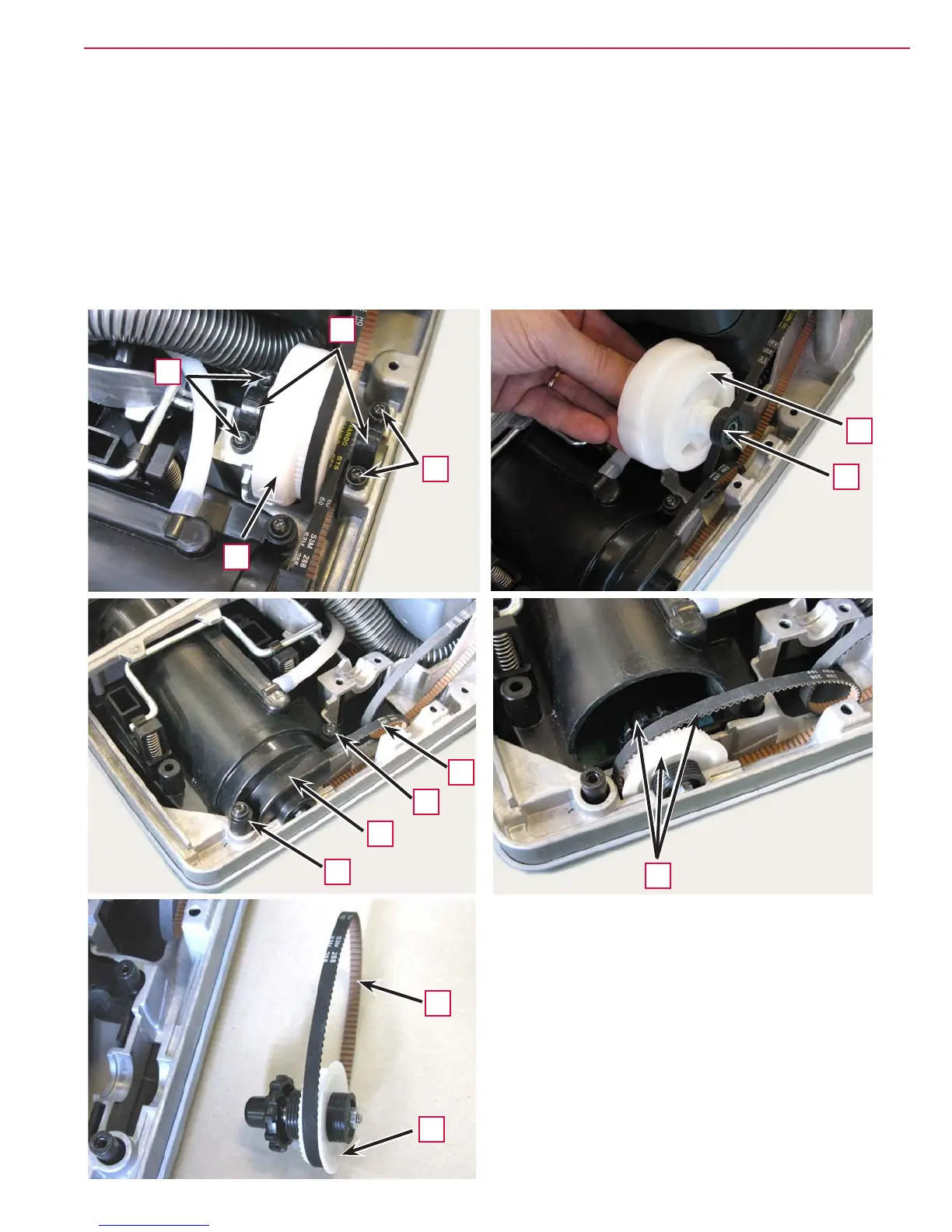

Belt and Pulley Disassembly/Assembly (Continues)
11. Loosen the screws (J) and remove the collars (K) fastening the ring gear (L).
12. Remove the ring gear (L) by disengaging it from the belt.
13. Retrieve the bearing (M).
14. To remove the belt (N), on the brush side, perform the following procedures:
◦ Remove the screws (P).
◦ Remove the guard (Q).
◦ Remove the ring gear assembly with brush hub and belt (R).
◦ Disengage the belt (R) from the ring gear (S) and retrieve it.
L
K
J
L
M
R
P
Q
P
N
R
S
J
