Fastening the probe to the tank bottom
Flexible probes can be fastened with a chuck (ring), turnbuckle or similar fastening device to the tank bottom

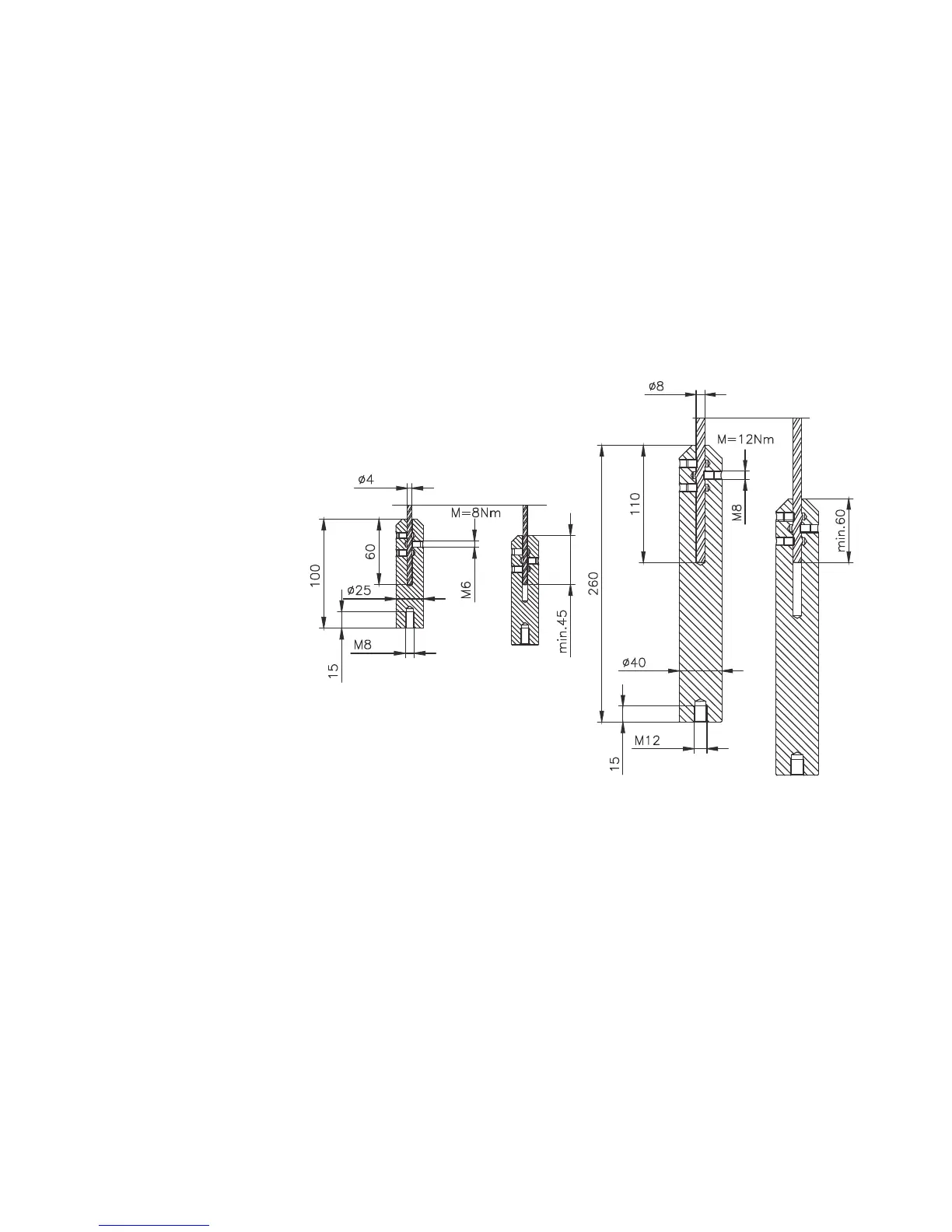

Shortening cable probes
If required, the cable probe can be shortened, but
this applies only when used in liquids.
Procedure
1 Detach socket set screw M6x10 (ISO 4026)
with 5 mm Allen (hexagon) key (ISO 2936).
2 Pull cable out of counterweight and
shorten to required length using cable cutters
to prevent the cable wires and strands from
splaying out.
3 Insert cable back into counterweight and
tighten down screws
4 Change configuration parameters to new
probe length; the reference point is the top
edge of the weight (user menu function
1.1.6).
