5.2 PROGRAMMING WITH SAP-300 DISPLAY UNIT
The main parameters of the Microtrek can be also set using the SAP-300 display unit.
The default display shows the primary measured value (which the output current is calculated from).
Besides the numerical display there is a bargraph on the right showing the value of the current output.
Programming is hepled by a text-based menu. Navigation in the menu can be done with
E
/
/
/ buttons.
5.2.1 SAP-300 DISPLAY UNIT
Display
64x128 Dot-matrix LCD,
glyphs, units and bargraph
Ambient temperature – 20°C…+60°C
Housing material
PBT fiberglass, plastic (DuPont
®
)

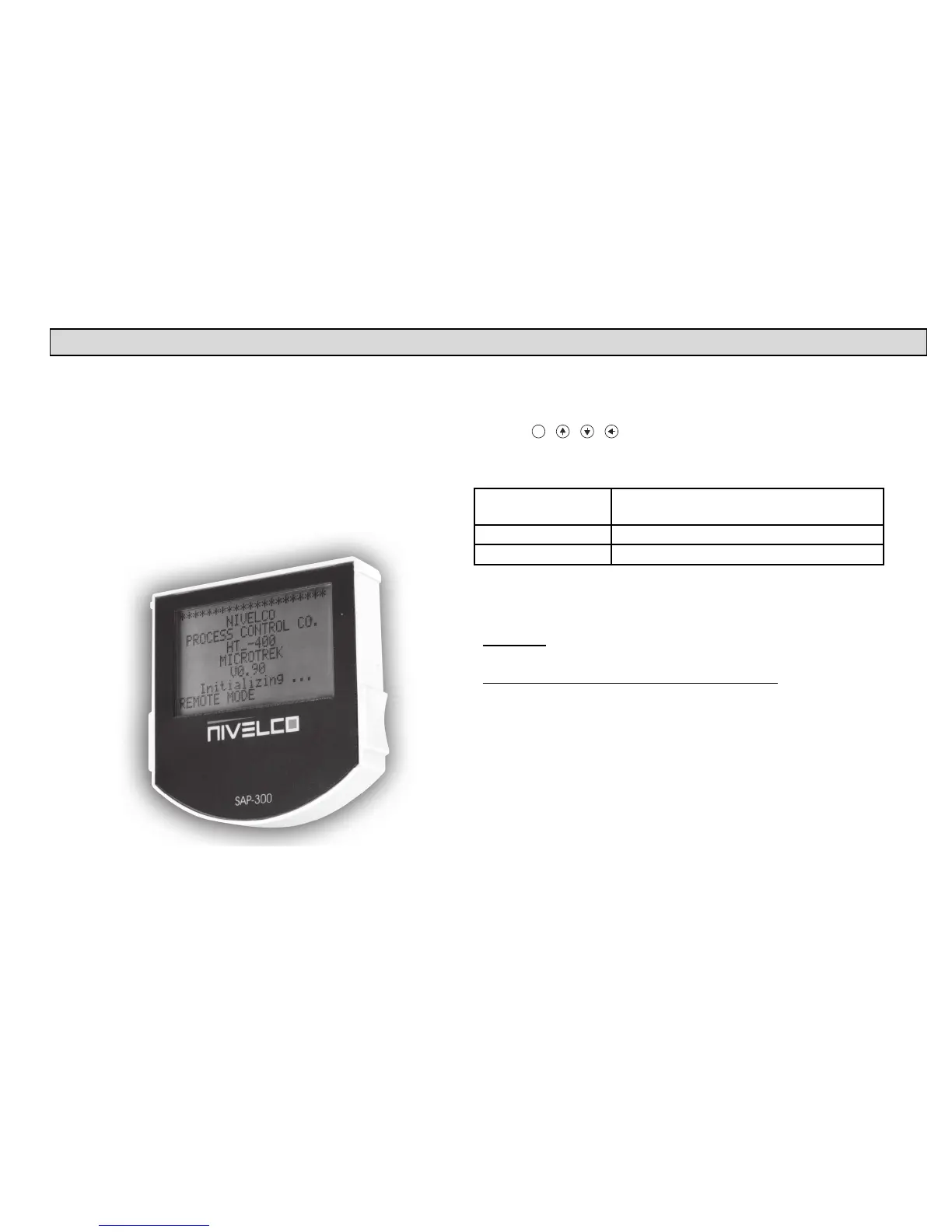

SAP-300 is a plug-in LCD display and programming module.
Warning!
The display of the SAP-300 is based on LCD technology,
do not expose the SAP-300 to continuous direct sunlight
to avoid display damage.
If MicroTREK is not equipped with a sunshade and ambient temperature
exceeds the operating temperature of SAP-300 do not leave the SAP-300
in the instrument!
