40 / 76 ♦ BKI16ATEX0018X ♦ htk4014a0600p_03
5.1.3 QUICK CONFIGURATION: CONFIGURATION EXAMPLES
The minimum functions (fct.) to be configured for a simple measurement are listed below:
Functions
PCSTAR 2 HART®
Definition
1.1.1 2.1.1.1 Tank Height
1.1.2 2.1.1.4 Dead zone
1.3.1 … 4 2.1.3.1 … 4 Current Output
1.7.0 2.1.7.0 Volume table*
*For volume measurements
Example procedures for each set of functions are given on the following pages. Each procedure is given in a series of steps in table form and is according to the
PCSTAR 2 F2-Configuration parameter list. Please refer to section 3.3.4 for the equivalent parameters available on the HART® Communicator.

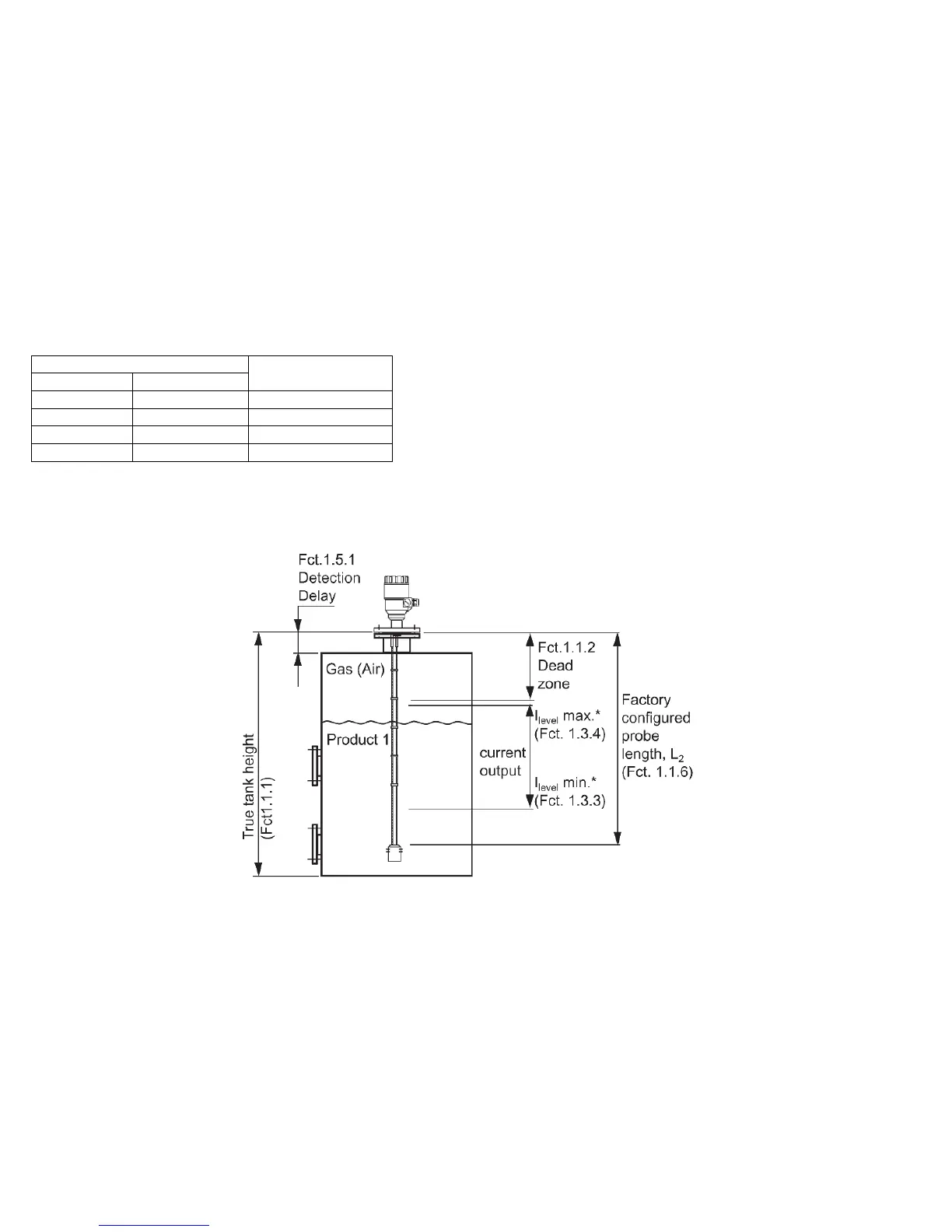

Definitions for quick configuration
where PCSTAR 2 Fct. 1.3.1 (HART®
Fct. 2.1.3.1) Current I1 Item is
configured to “Level”
